QXP124 30cm flat subwoofer with protective grille

ESX
Your price:
€ 287,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Sensitivity
88 dB
Impedance
4 Ohm
Installation Depth
89 mm
Woofer Material
Polipropilene

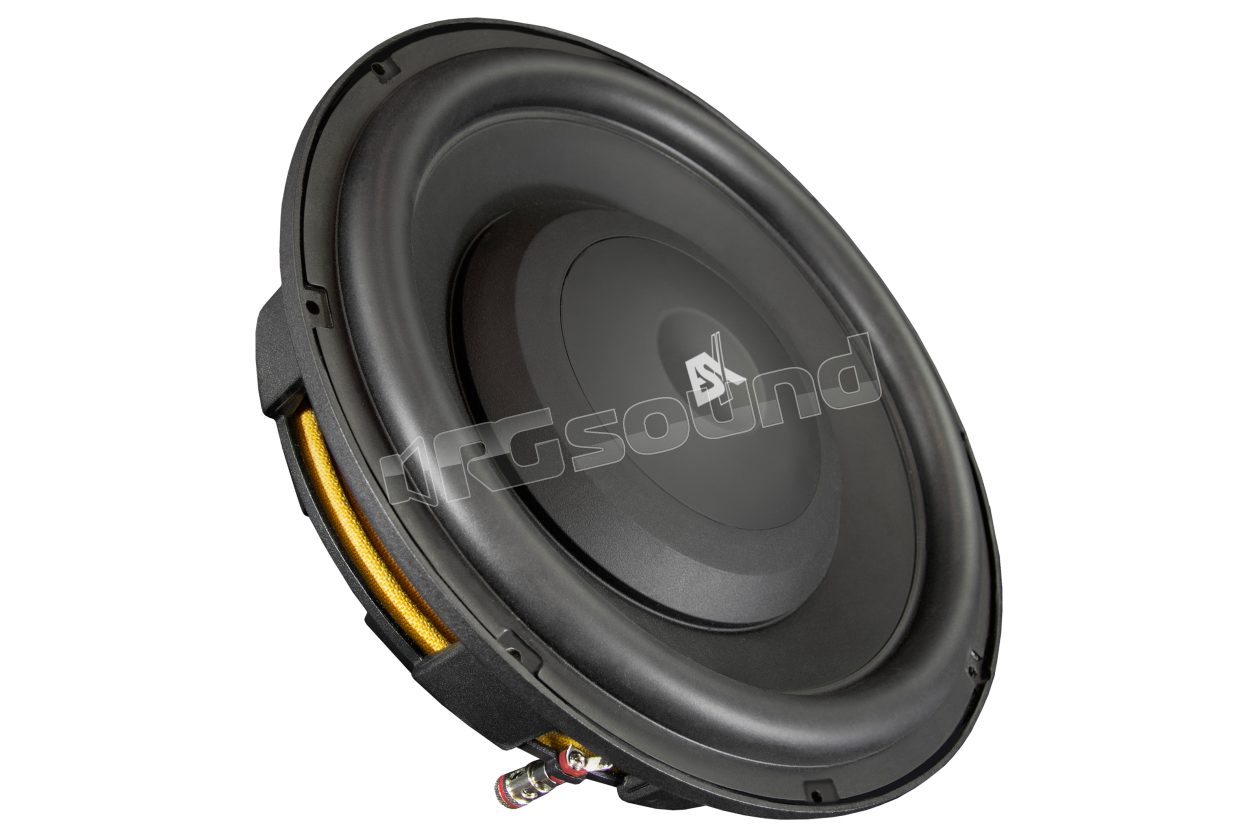

ESX QXP124 flat 30 cm (12") subwoofer with protective grille

With the new QUANTUM QXP subwoofers, ESX is writing the next chapter in powerful bass performance. Following the success of the VISION VXP Flat subwoofers in 8 and 10 inches, which have already established themselves as a technological benchmark for uncompromised sound, ESX now takes performance to a new level with the QXP Flat subwoofers, which combine power, precision and efficiency in a completely new category.

The QXP woofers deliver bass power that was previously associated only with large, deep-mounted subwoofers. Powerful, dynamic and with impressive depth, they send shivers down your spine inside the vehicle, leaving an indelible mark on the market. And most importantly: despite their extraordinary performance, the two QUANTUM models, in 10 and 12 inch formats, are extremely compact, with mounting depths of only 82 and 89 mm respectively.

The larger model, the QXP124, is the answer for those seeking the impossible: a 30 cm subwoofer that, with a mounting depth of only 89 mm, makes the cabin vibrate. The performance this compact subwoofer generates from a minimum volume of approximately 22 liters is simply impressive. Its precisely crafted die-cast aluminum basket ensures maximum stability, while the elegant protective grille perfectly completes the high-quality appearance. For true bass enthusiasts, the QXP124 leaves nothing to be desired.

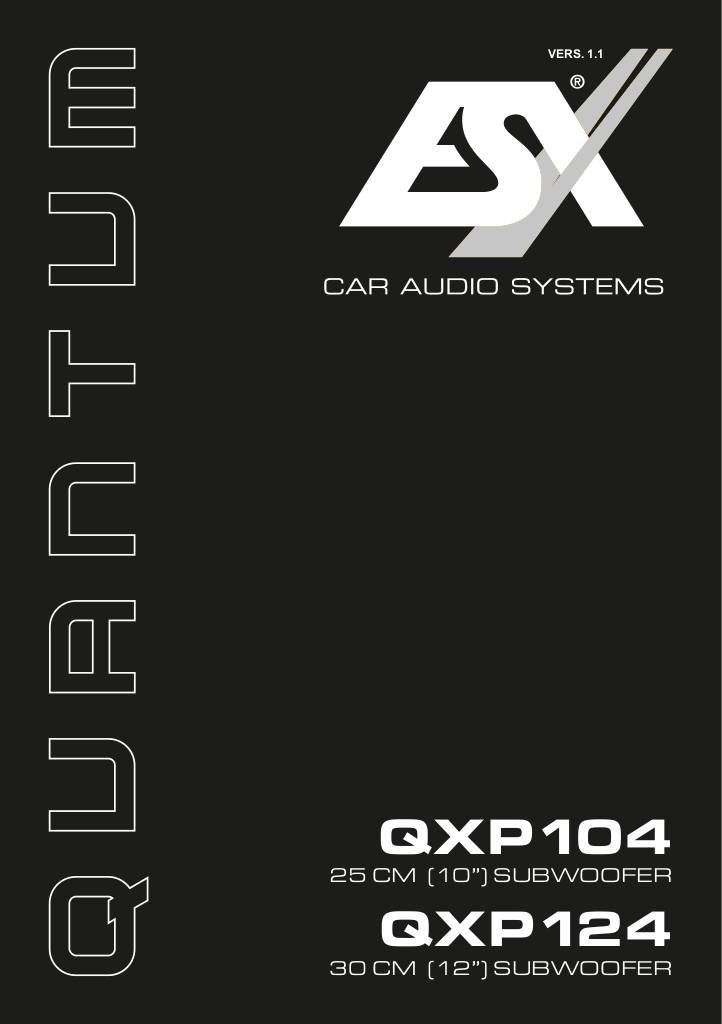

Manuale utente

n-20260803145909-qxp104-qxp124.pdf

ESX QXP124 technical specifications

  • Die-cast aluminum basket, robust and flat design
  • Ideal for sealed enclosures from approximately 22 liters
  • Dual 39 mm voice coil with 36 mm winding height
  • Dual Y35 magnet with 3.1 kg ABS seal
  • ABS gasket and polypropylene cone
  • Includes metal protective grille
  • X-Max. +/- 20 mm
  • Flat 25 cm (10") subwoofer
  • Nominal power 500/1000 Watt (musical/peak)
  • Impedance 4 Ω
  • Fs 26 Hz, Qts 0.55, VAS 52.2 L, 88 dB/2.83 V/1 m
  • Installation depth 89 mm
  • Installation diameter 286 mm
€ 287,00 Price incl. VAT
