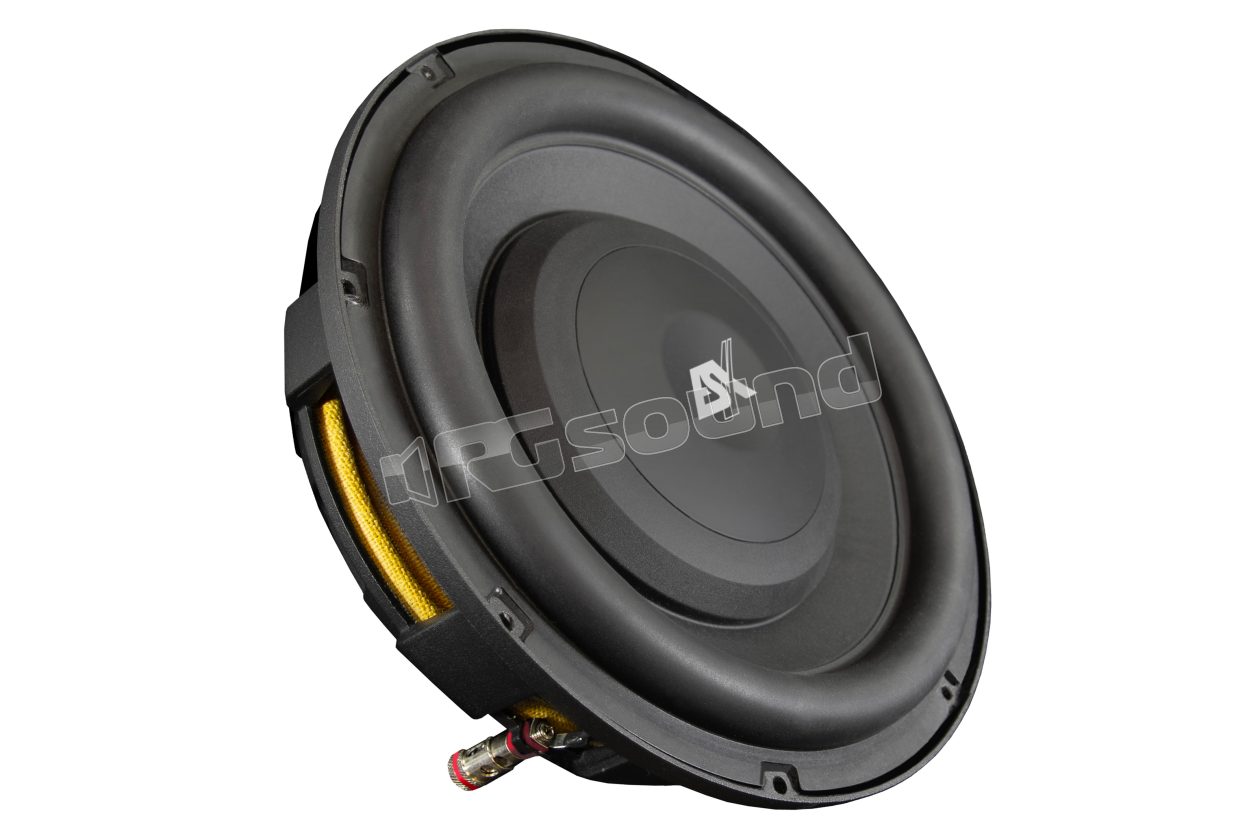

QXP104 25cm flat subwoofer with protective grille

ESX
Your price:
€ 239,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Sensitivity
86 dB
Impedance
4 Ohm
Installation Depth
82 mm
Woofer Material
Polipropilene

ESX QXP104 flat 25 cm (10") subwoofer with protective grille

The QXP woofers offer bass power that was previously associated only with large subwoofers and deep mounting. Powerful, dynamic and with impressive depth, they give you goosebumps inside the vehicle, leaving an indelible mark on the market. And, most importantly: despite their extraordinary performance, the two QUANTUM models, in 10 and 12 inch formats, are extremely compact, with mounting depths of only 82 and 89 mm respectively.

With a mounting depth of only 82 mm, the QXP104 is among the flattest subwoofers in its category. The real surprise, however, lies in its dynamics: while conventional flat woofers often reach their limits early, the QXP104 delivers a sound pressure level that is usually expected only from subwoofers of considerably larger dimensions.

A sensational Xmax of ±20 mm sets new standards in this segment. The QXP104 delivers this power even in compact, sealed enclosures with a volume of approximately 14 liters. ESX makes no compromises in construction either: instead of a simple sheet metal basket, a solid die-cast aluminum basket is used. An elegant protective grille, included in the package, ensures optimal protection.

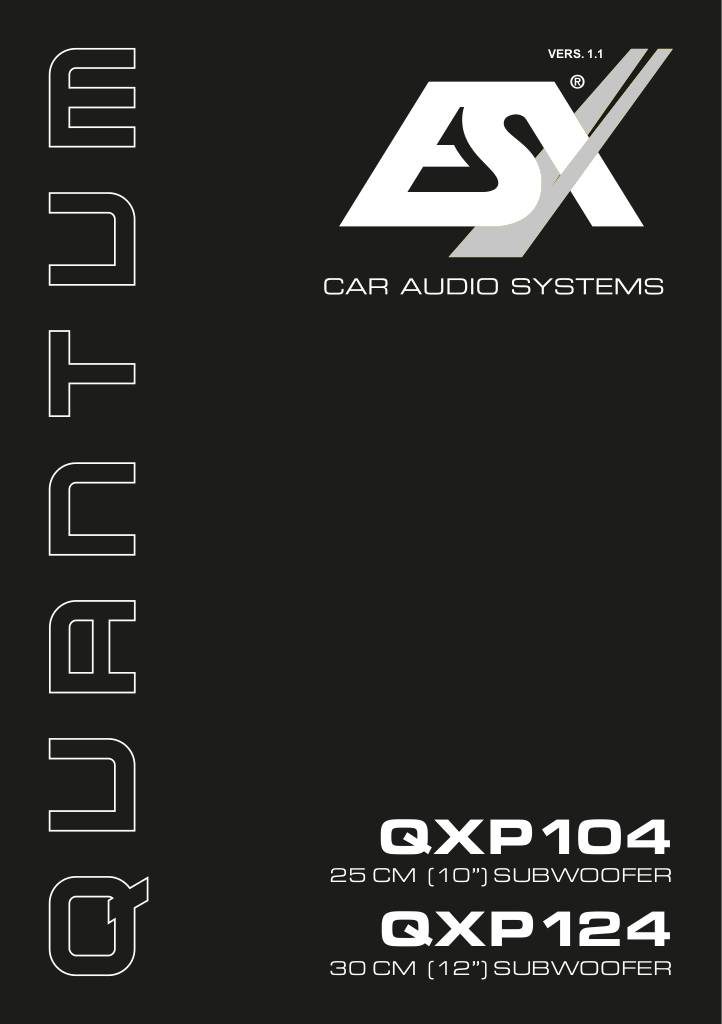

Manuale utente

n-20260803150829-qxp104-qxp124.pdf

ESX QXP104 technical specifications

  • Die-cast aluminum basket, robust and flat in design
  • Ideal for sealed enclosures of approximately 14 liters
  • Dual 39 mm voice coil with winding height of 36 mm
  • Dual Y40 magnet of 2.3 kg
  • ABS gasket and polypropylene cone
  • Includes metal protective grille
  • X-Max. +/- 20 mm
  • Flat 25 cm (10") subwoofer
  • Nominal power 500/1000 Watt (musical/peak)
  • Impedance 4 Ω
  • Fs 33 Hz, Qts 0.63, VAS 19.5 L, 86 dB/2.83 V/1 m
  • Installation depth 82 mm
  • Installation diameter 236 mm
€ 239,00 Price incl. VAT
