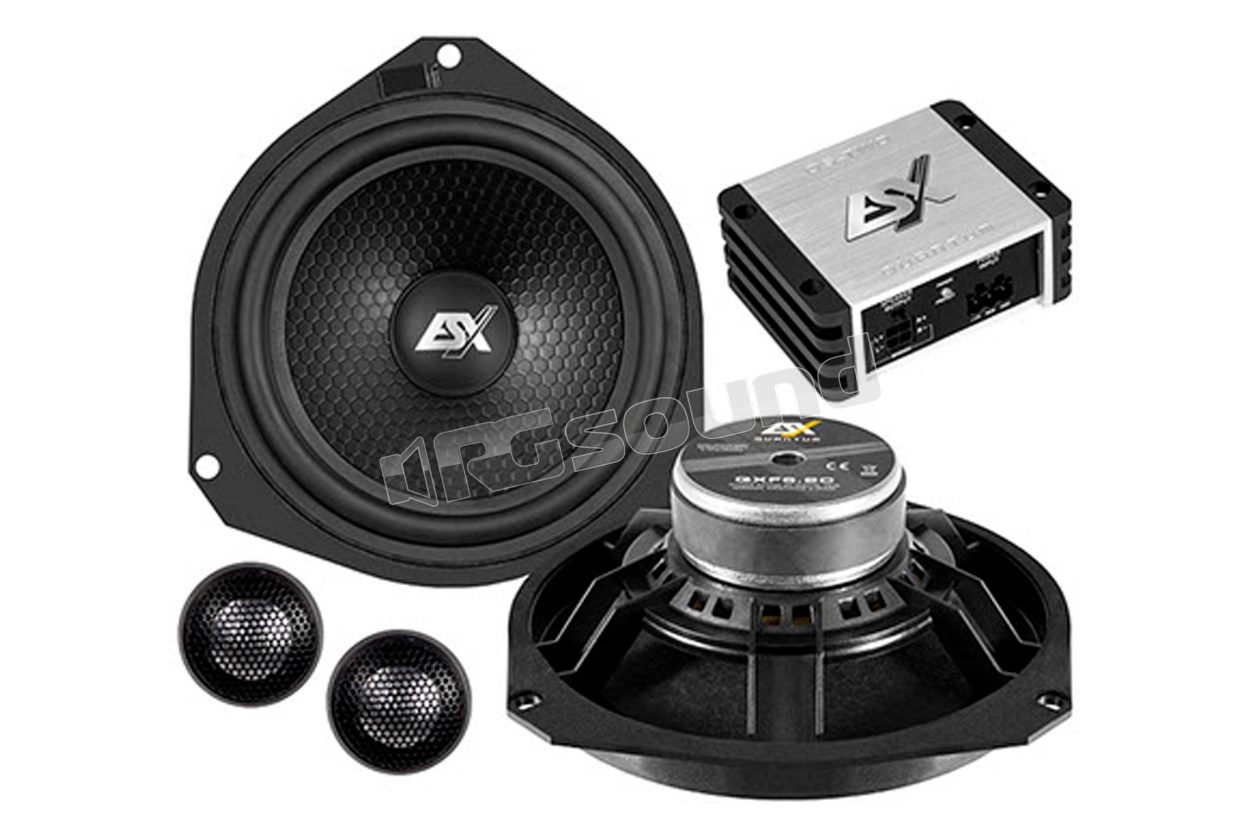

QXFA6.2C Two-way system with amplifier, dedicated to Ducato, Boxer, Jumper, Movano and Ford Ka

ESX
Your price:
€ 412,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
50 - 24.000 Hertz
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
180 Watt
RMS Power
90 Watt
Impedance
3 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Alluminio

ESX QXFA6.2C 2-way system 16 cm with 90 W RMS / 180 W MAX power

2-way kit composed of:

  • 25 mm aluminum tweeter • 160 mm paper/fiberglass woofer
  • 6 dB inline crossover including cable
  • Mounting dimensions and adapter cables specific to the vehicle
  • Installation depth 51 mm
  • Installation hole 155 mm
  • Amplifier
    • 2 x 52 / 95 W RMS @ 4 / 2 Ω (Class D)
    • Highpass / Lowpass @ 80Hz • Auto turn-on • EPS
    • Efficiency up to 90% at 2 ohm
    • Included 60 cm ISO Plug&Play cable set

Compatible models
Fiat

  • Ducato F8 (from 2021)
  • Ducato III (Type 250, from 2006), Ducato IV (Type 290, from 2015)

Citroën

  • Jumper II (Type 250, from 2006), Jumper III (Type 290, from 2015)

Peugeot

  • Boxer II (Type 250, from 2006), Boxer III (Type 290, from 2015)

Opel

  • Movano III (from 10/2021)

Ford

  • Ka II (2009-2016)

Manuale utente

n-20230208121221-qxf201a.pdf

ESX QXFA6.2C Technical specifications

QXF6.2C

  • 90 Watt/RMS, 180 Watt/MAX, impedance 3 Ohm
  • Frequency range 50 - 24000 Hz
  • 160 mm midwoofer speakers with paper cone
  • 25 mm aluminum tweeter
  • 6 dB inline crossover
  • Installation opening 155 mm, installation depth 51 mm
  • Plug+Play connectors

QS-TWO-ISO

  • 2 x 52/95 Watt RMS at 4/2 Ohm
  • 1 x 190 Watt RMS @ 4 Ohm bridged
  • Highpass/lowpass switchable at 80 Hz
  • Very low THD+N @ 5W/RMS < 0.007%
  • Frequency range 10 Hz - 60 kHz
  • RCA Line Out for example Active Subwoofer
  • High level inputs with EPS
  • Auto turn-on function
  • Efficiency up to 90%.
  • Dimensions: 70 x 35 x 90 mm
