QXF201A Subwoofer with built-in amplifier specifically for Ducato, Jumper and Boxer

ESX
Your price:
€ 335,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
200 mm
MAX Power
200 Watt
RMS Power
100 Watt
Enclosure Size
290 x 210 x 73 mm
Enclosure Type
Sealed Enclosure

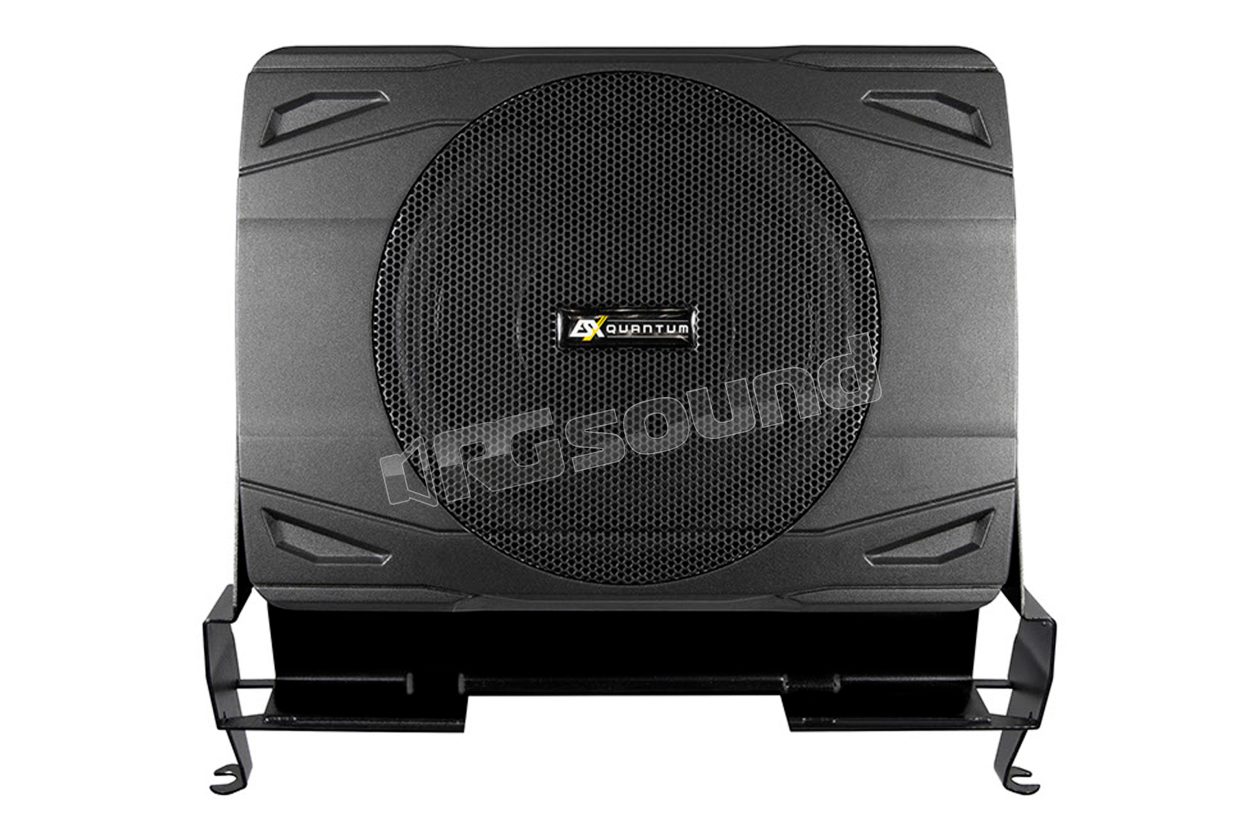

ESX QXF201A Subwoofer with integrated amplifier specific to Ducato, Jumper and Boxer

With the active subwoofer QUANTUM QXF201A with integrated 200 watt amplifier, music lovers get the foundation necessary for deep bass. The ESX subwoofer is mounted directly under the center console, below the cup holder to not sacrifice valuable space. To avoid annoying vibrations and resonances from the cup holder, ESX developers came up with an ingenious mounting solution: The actual subwoofer is fixed to the vehicle's metal bars behind the console by means of a special steel frame. Mounted this way, the QXF201A "floats" in the air, preventing annoying vibrations from being transmitted to the console or dashboard.

The QXF201A stands out for its powerful special 8 inch (20 cm) subwoofer. Rich and high-quality bass previously unthinkable ensure unique musical pleasure. Thanks to the supplied bass level remote control cable, the subwoofer volume can be conveniently adjusted from the driver's seat. The delivery also includes all signal and power cables, an integrated fuse and pre-glued cable terminals.

Compatible models

Fiat

  • Ducato III (Type 250, 2006+)
  • Ducato IV (Type 290, 2015+)
  • Ducato 8/9* (2021+)

Citroën

  • Jumper II (Type 250, 2006+)
  • Jumper III (Type 290, 2015+)

Peugeot

  • Boxer II (Type 250, 2006+)
  • Boxer III (Type 290, 2015+)

Opel

  • Movano III (10/2021+)

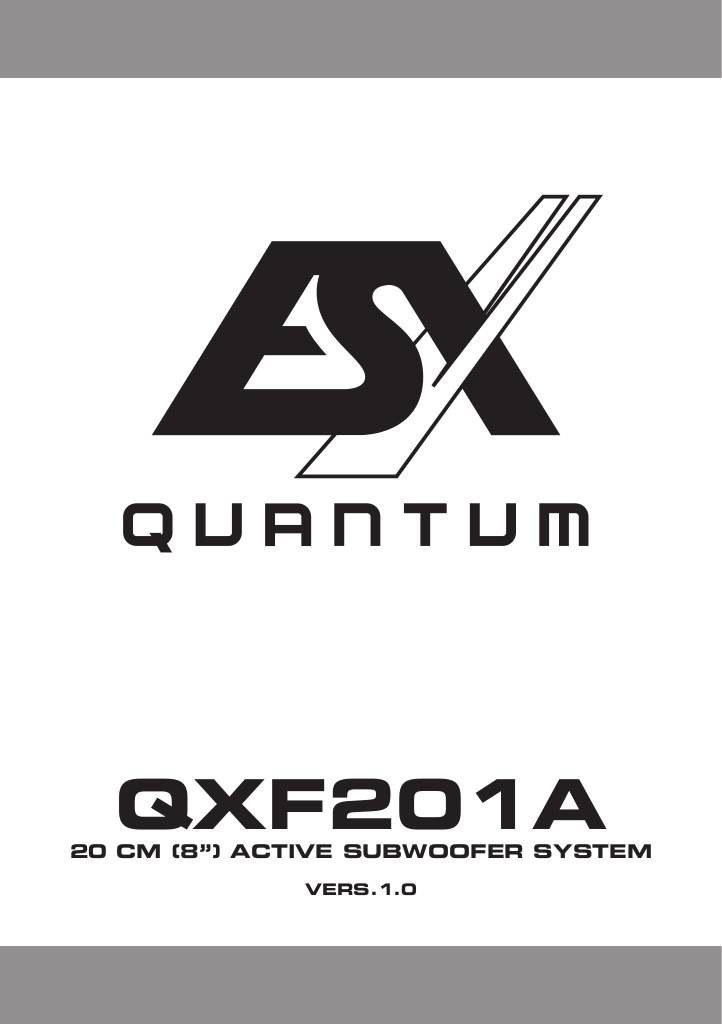

Manuale utente

n-20230208124110-qxf201a.pdf

ESX QXF201A Technical specifications

  • Active 20 cm (8") subwoofer system
  • Class A/B integrated amplifier
  • Power 1 x 100 Watt RMS, 1 x 200 Watt MAX
  • LPF crossover 50-150Hz
  • Bass boost 0-12 dB at 45 Hz
  • Fixed subsonic filter 20 Hz
  • Phase switch 0/180°, RCA inputs
  • Auto turn-on function, high level inputs
  • Bass remote control
  • Dimensions 210 x 73 x 290 mm
