QXE15D2 Sound Quality subwoofer 38cm

ESX
Your price:
€ 364,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2000 Watt
RMS Power
1500 Watt
Impedance
2 + 2 Ohm
Installation Depth
205 mm
Woofer Material
Cellulosa trattata

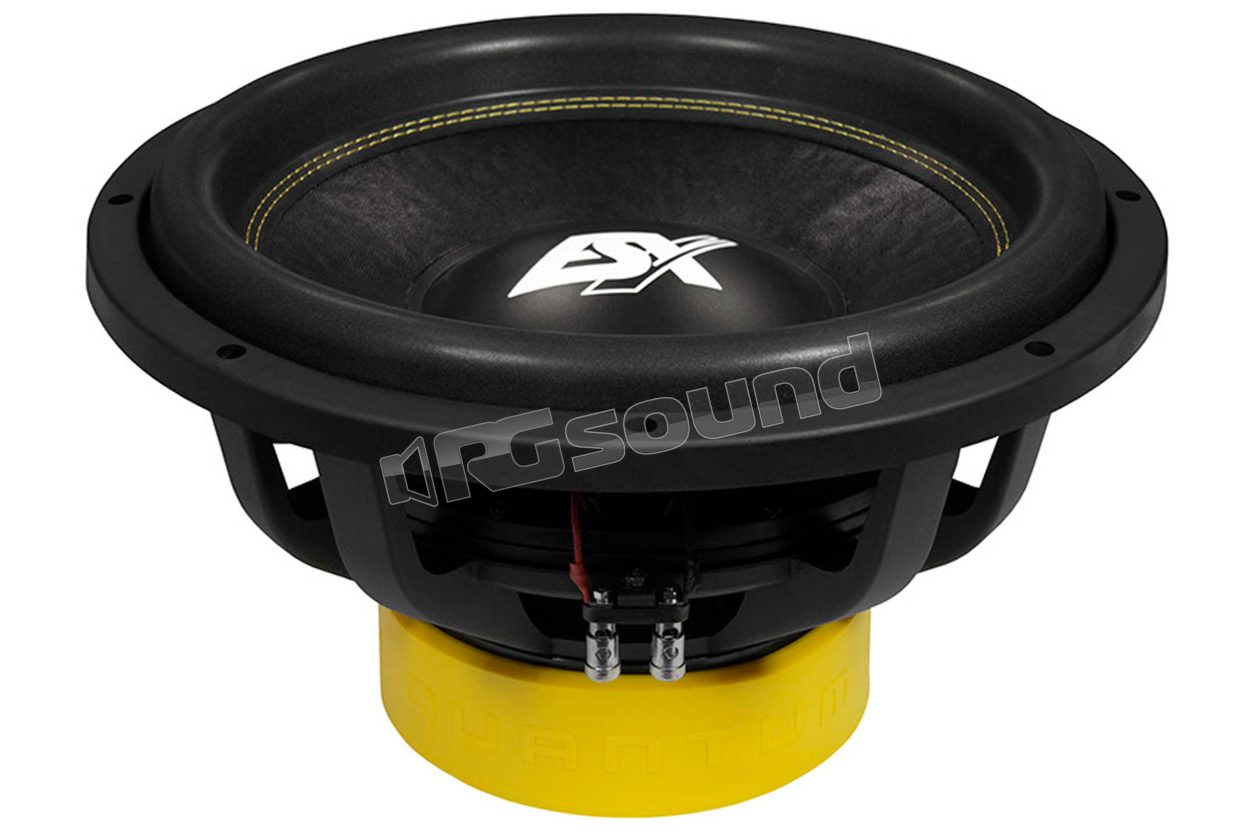

ESX QXE15D2 subwoofer Sound Quality 38cm (15") with dual voice coil 2 Ohm

For the QXE woofer series, ESX engineers have developed completely new die-cast aluminum baskets. For these baskets, particular emphasis was placed on two characteristics: the widest possible centering to ensure optimal cone excursion and excellent rear ventilation of the spider and voice coil. This reduces flex compression of the cone and improves cooling of the voice coil. For further cooling improvement and to increase load capacity, the T-Plate has also been equipped with ventilation holes. The 76 mm (3") voice coil on a black anodized aluminum frame is guided by two powerful 100 oz (Y30) magnets, which guarantee extremely high efficiency up to 89 dB. The 40 mm length wound voice coil gives the cone a linear excursion of +/- 14 mm and mechanical excursion up to +/- 22 mm. In this way, the scooped paper cone with double-stitched foam surround provides enormous sound pressure and precise-sounding bass.

ESX QXE15D2 technical features

Robust aluminum basket
Double 76 mm voice coils
Dual Voice Coils with winding height of 40 mm
Dual magnet driver with 200 oz (5.6 kg)
Ventilated T-Plate and Spider
Double-stitched surrounds
Scooped paper cone
X-Max. +/- 22 mm
Rated Power 1500/2000 Watt RMS / max.
Impedance 2 + 2 Ohm
Dual 76 mm voice coil
Dual magnet driver 200 oz (5.6 kg)
Installation depth 205 mm
Installation opening: 305 mm

Scheda tecnica

n-20200917165539-dbx-series.pdf

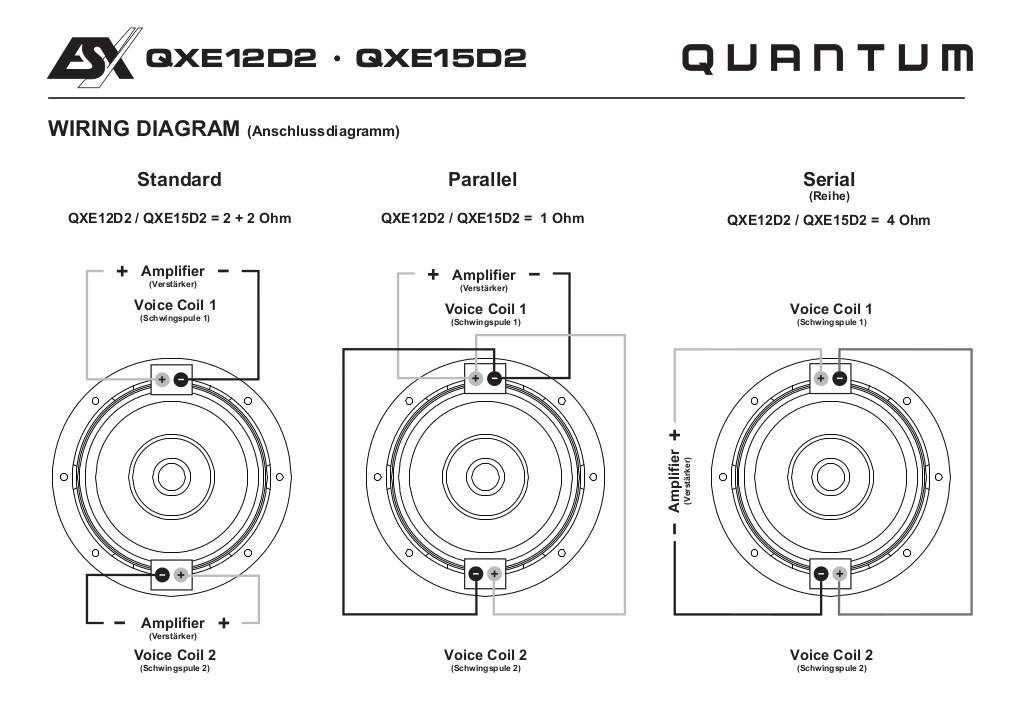

Manuale installazione

n-20200917165539-qxe12d2-qxe15d2.pdf
€ 364,00 Price incl. VAT
