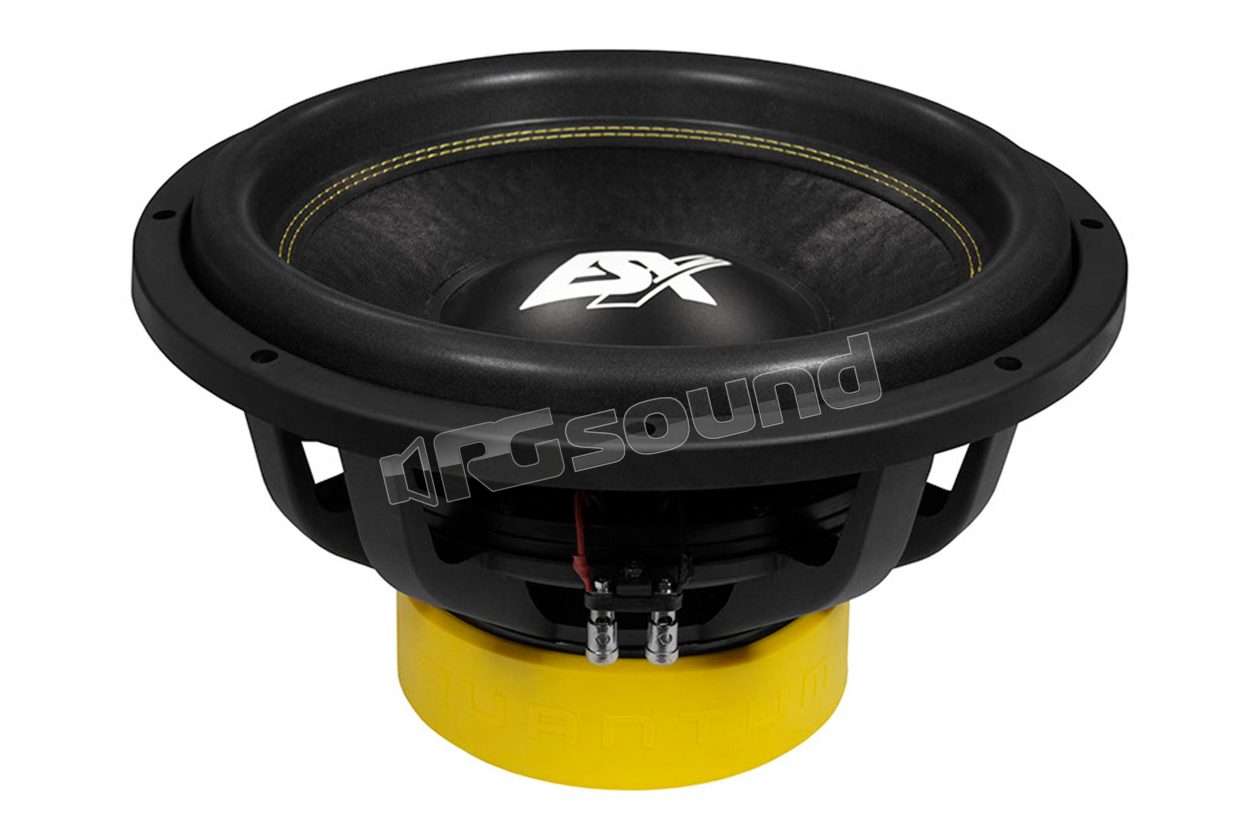

QXE12D2 Sound Quality subwoofer 30cm

ESX
Your price:
€ 316,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Impedance
2 + 2 Ohm
Installation Depth
185 mm
Woofer Material
Cellulosa trattata

ESX QXE12D2 subwoofer Sound Quality 30cm (12") with dual voice coil 2 Ohm

For the QXE woofer series, ESX engineers developed completely new die-cast aluminum baskets. Two characteristics were emphasized for these baskets: the widest possible centering to ensure optimal cone travel and excellent rear ventilation of the spider and voice coil. This reduces cone flexure compression and improves voice coil cooling. For further cooling improvement and to increase load capacity, the T-Plate was also equipped with ventilation holes. The 76 mm (3") voice coil on a black anodized aluminum frame is guided by two powerful 100 oz (Y30) magnets, which provide extremely high efficiency up to 89 dB. The 40 mm length wrapped voice coil gives the cone a linear excursion of +/- 14 mm and mechanical excursion up to +/- 22 mm. In this way, the hollow paper cone with double-stitched foam surround provides enormous sound pressure and precise-sounding bass.

ESX QXE12D2 technical features

Sturdy aluminum basket
Double 76 mm voice coils
Dual voice coils with winding height of 40 mm
Dual magnet driver with 200 oz (5.6 kg)
Vented T-Plate and spider
Double-stitched surround
Hollow paper cone
X-Max. +/- 22 mm
Rated power 1000/2000 Watt RMS / max.
Impedance 2 + 2 Ohm
Dual 76 mm voice coil
Dual magnet driver 200 oz (5.6 kg)
Installation depth 185 mm
Installation opening 285 mm

Scheda tecnica

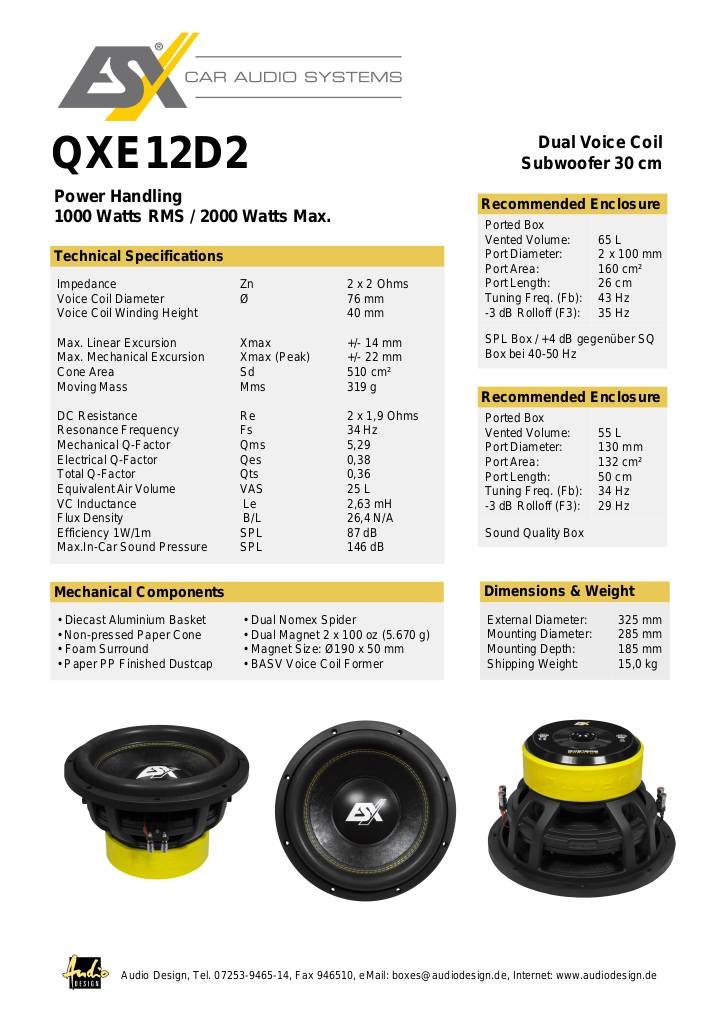

n-20200917170258-qxe12d2.pdf

Manuale installazione

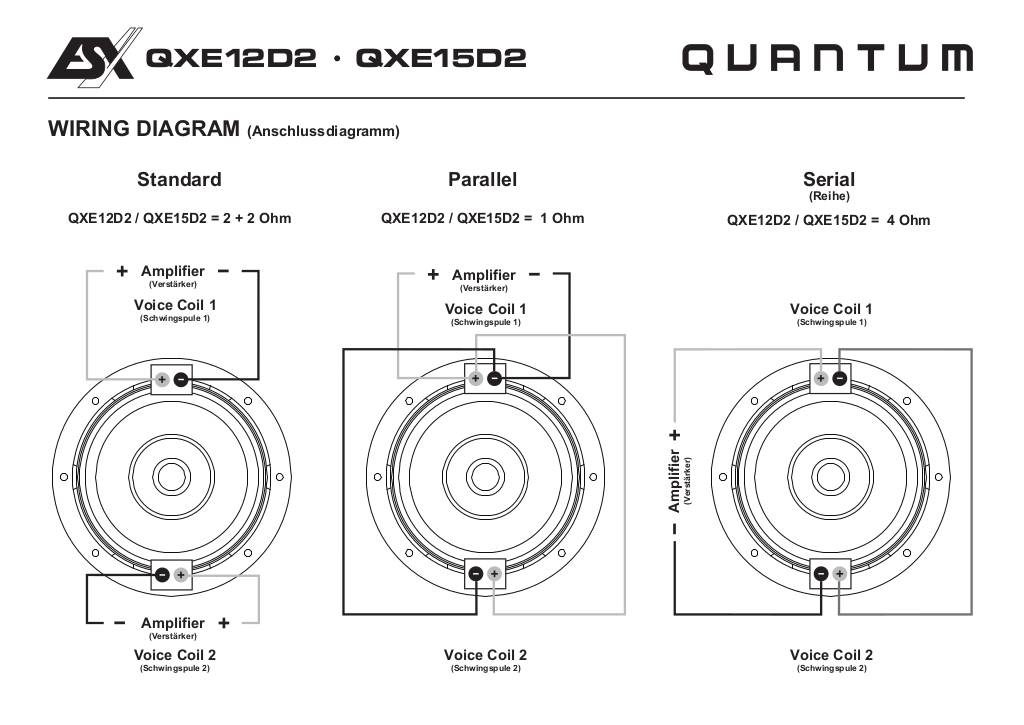

n-20200917170258-qxe12d2-qxe15d2.pdf
€ 316,00 Price incl. VAT
