QX10BXA Downfire 25 cm active subwoofer

ESX
Your price:
€ 431,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
250 mm
MAX Power
800 Watt
RMS Power
400 Watt
Sensitivity
102 dB
Enclosure Size
530 x 360 x 170 mm
Enclosure Type
Sealed Enclosure

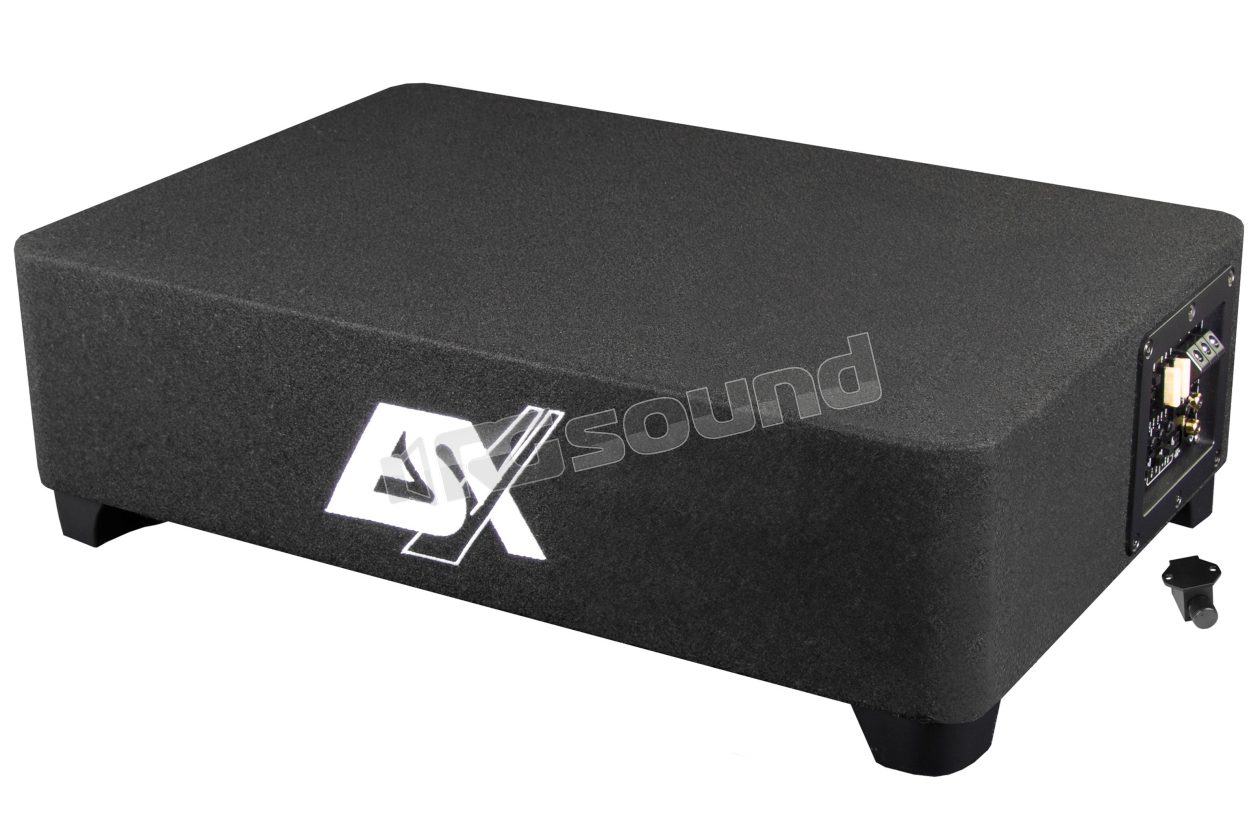

ESX QX10BXA 25 cm (10") active downfire subwoofer system

With their extremely compact dimensions, ESX presents two new active subwoofers with downward-firing that prove to be real space savers. But their compact design is deceiving: thanks to high-quality components such as the new high-end QXP subwoofers and powerful 460 watt Class D bass modules, they offer top-level performance and handle even the deepest bass attacks effortlessly.

Their considerable weight already demonstrates that no compromises were made. The MDF cabinets, flat but solid, with additional internal reinforcements, are extremely robust and effectively suppress unwanted resonances. A particularly practical feature: thanks to removable feet, the speakers can be perfectly integrated into the elevated floors of car trunks.

ESX speakers use the new and revolutionary flat QXP subwoofers: thin and high-performance drivers that have no equal. With an impressive Xmax of ±20 mm, they offer dynamic range and bass power hardly imaginable in this form factor. The massive die-cast aluminum baskets and powerful dual magnets ensure maximum stability and perfect diaphragm control. The result: clean, precise and deep bass reproduction.

Powerful Class D amplifier

Inside the high-end QXP housings is housed the award-winning POWER4 active module in Class D, which offers ample power reserves with a peak power of no less than 1000 watts at 4 ohms. The module features sophisticated input circuits: thanks to the high-level input "EPS PRO" developed by ESX, the module is fully compatible with modern vehicles and their sensitive diagnostic systems. The module makes no compromises in its features either: adjustable subsonic and low-pass filters, bass boost and a phase switch allow precise adjustment of the bass response. Signal input is available via RCA connectors or high-level inputs. For maximum comfort, the bass level remote control included allows you to conveniently adjust the bass level from the driver's seat at any time.

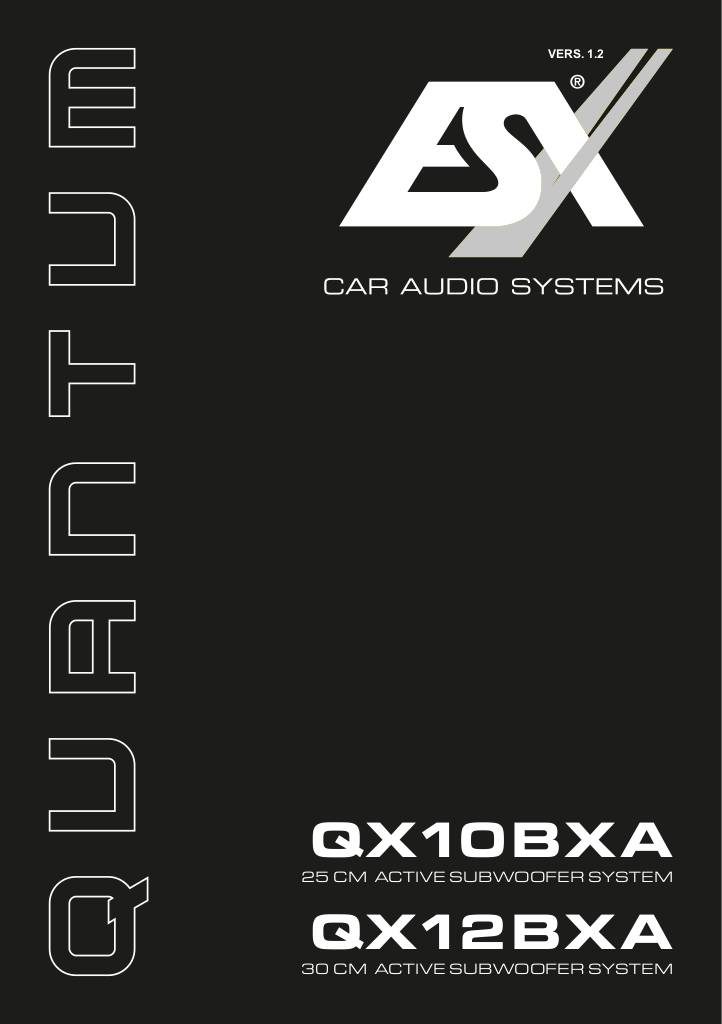

Manuale utente

n-20260803155240-qx10bxa-qx12bxa.pdf

ESX QX10BXA technical specifications

  • 25 cm (10") active subwoofer system (sealed)
  • Integrated Class D amplifier (Power4 active module)
  • Power 1 x 500/1000 Watt Music/Peak
  • Low-pass filter 40-120 Hz at 12 dB
  • Phase shift 0°/180°
  • Bass boost 0-6 dB at 45 Hz
  • Low-level RCA input
  • High-level input
  • Automatic turn-on function (DC or signal)
  • Start-stop function, 5 sec./up to 7 Volt
  • EPS® PRO with 10Ω / 150Ω / 600Ω (selectable)
  • Input sensitivity 15 or 40 Volt (selectable)
  • Triple limiter, clipping LED
  • Bass remote control
  • Compact case with embroidered logo
  • Subwoofer protective grille
  • Dimensions without feet: 53 x 12.5 x 36 cm
  • Dimensions with feet: 53 x 17 x 36 cm
€ 431,10 Price incl. VAT
