QSB-8v2

ESX

Discontinued

Your price:
€ 219,00
Price per single item (VAT included)
Type
Subwoofer in enclosure
Speaker Size
200 mm
MAX Power
800 Watt
RMS Power
400 Watt
Impedance
2 + 2 Ohm
Enclosure Size
460 x 330 x 180 mm
Enclosure Type
Reflex Enclosure

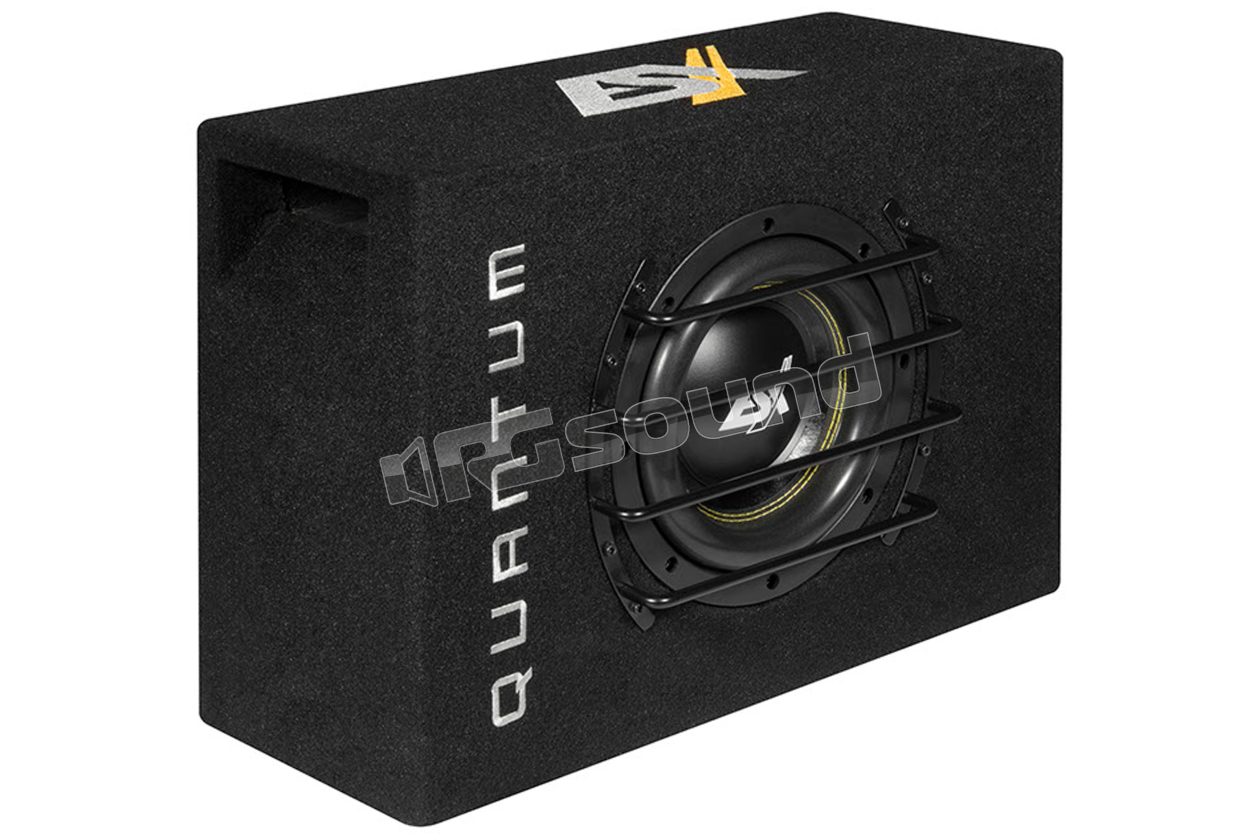

ESX QSB-8v2 20 cm (8") subwoofer in bass-reflex enclosure.

The ventilated QUANTUM QSB enclosures feature a very compact design. With an impedance of 2 + 2 ohm the subwoofer can operate at 4 ohm or at 1 ohm to get the most out of the amplifier. Thanks to the large voice coils: 50 mm for QSB6, 64 mm for QSB8 and the new QSB10 model, these subwoofers are designed for dynamic performance and can be powered by even more powerful amplifiers. Thanks to the flat design, the new QSB enclosures find the right place in almost all vehicles. With a height of only 16 cm, the QSB6 box can be positioned even in a double floor of the trunk, or for example behind the seat. The protective grilles included protect the woofers optimally in all models. For QSB6 and QSB8, optional feet are included that allow you to position the speakers on the belly in the trunk.

Technical featuresESX QSB-8v2

Rated power 400/800 watt RMS / max.

Impedance 2 + 2 ohm

Dual 64 mm voice coil

Compact enclosure with logo embroidery

With protective grille and optional feet

Dimensions: 46 x 33 x 18 cm

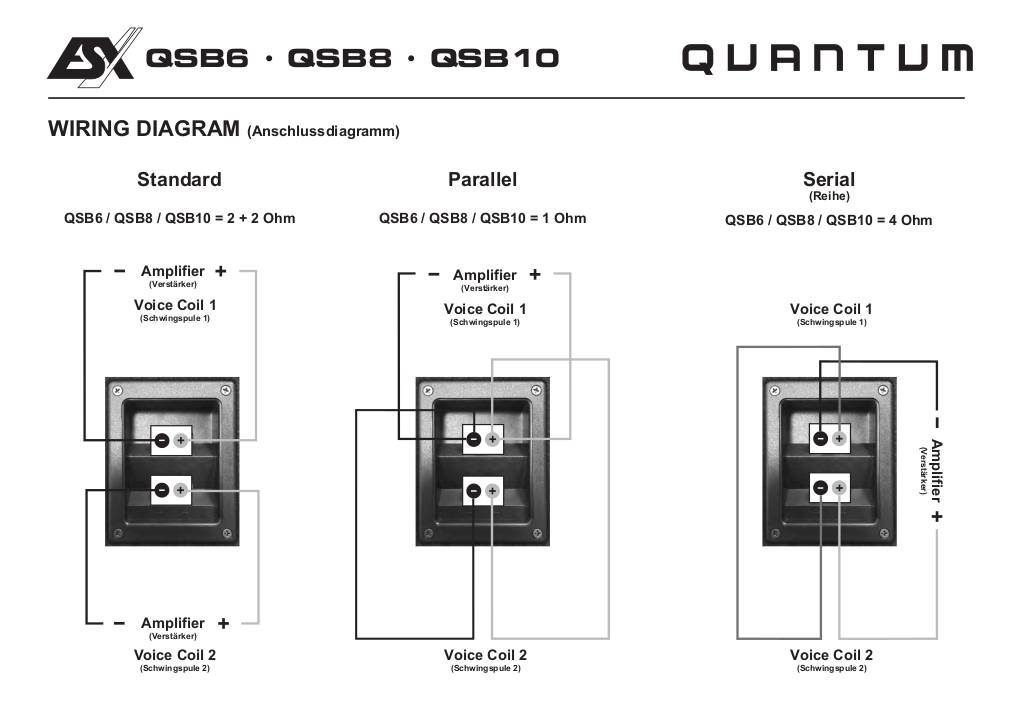

Manuale utente

n-20210913170559-qsb8.pdf
