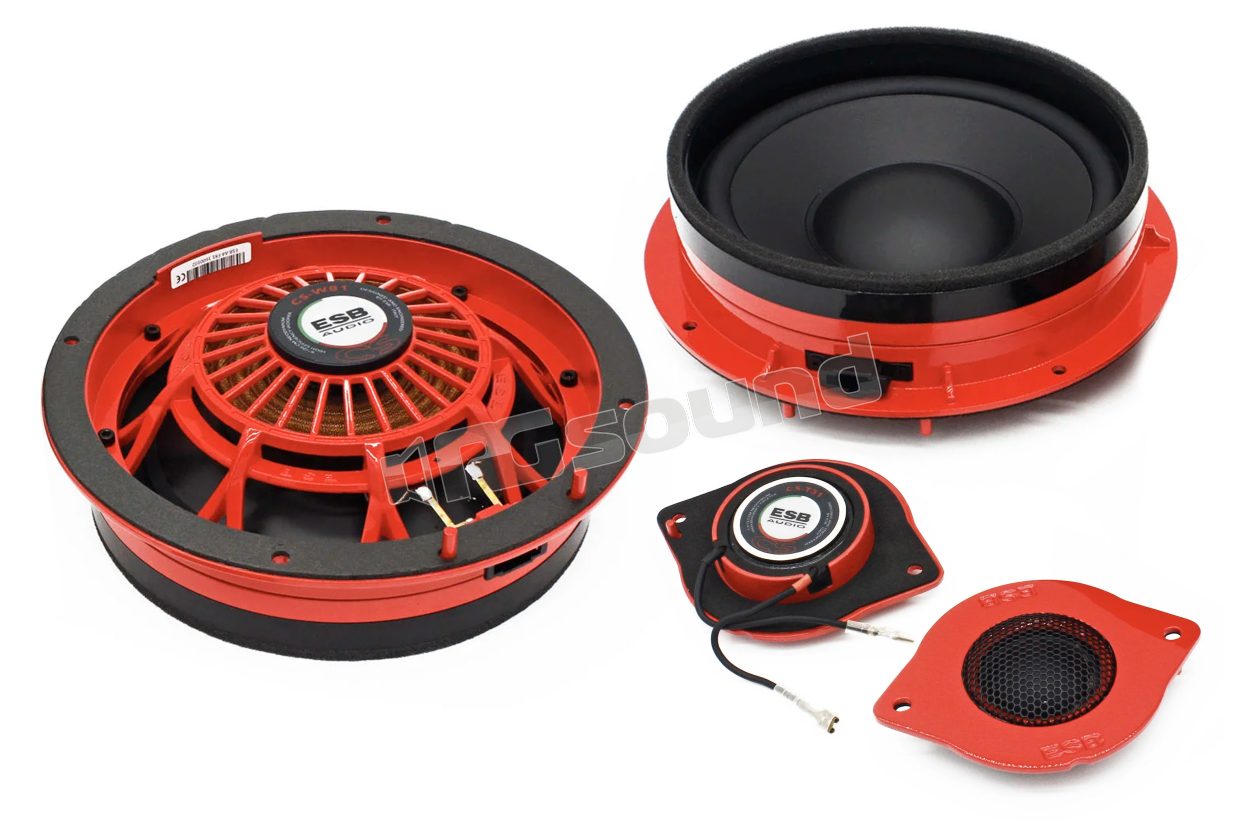

Q5 Front 200 Front speaker kit for Audi Q5

ESB car audio
Your price:
€ 797,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
40 - 25.000 Hertz
Woofer Size
200 mm
Tweeter Size
32 millimetri
Impedance
4 Ohm
Tweeter Material
Cupola in seta

ESB Q5 Front 200 2-way speaker kit for the front of the Audi Q5

6000 Series CS Car Special Speakers

Every car model is different from all others in terms of space distribution and acoustic performance. With the Car Special series, ESB intends to provide speakers


plug and play diffusers specific to the vehicle, designed to achieve optimal acoustic performance in the car for which they were created. All Special Car diffusers are different from other ESB Car Audio diffusers.

They are not different only in size and dimensions. They differ in the technology used to adapt to limited spaces and low-power factory amplifiers. They have high-quality neodymium magnets, lighter cones, lighter and stiffer aluminum baskets and a new mobile coil assembly. All speaker connections are plug and play with original factory cables. Each speaker is then equalized for the specific environment of the car by an individually designed crossover.

Q5 Front 200 Components

  • Tweeter A4-FTW1
    • The A4-FTW1 uses the ESB CS-T31 1.2" / 3.2 cm tweeter, with a special adapter to integrate it in the original space of the Audi A4/Q5.
  • Woofer A4-F81
    • The A4-F81 uses the ESB CS-W81 8"/20 cm woofer, with a special adapter to integrate with the original space in the doors of the Audi A4/Q5.

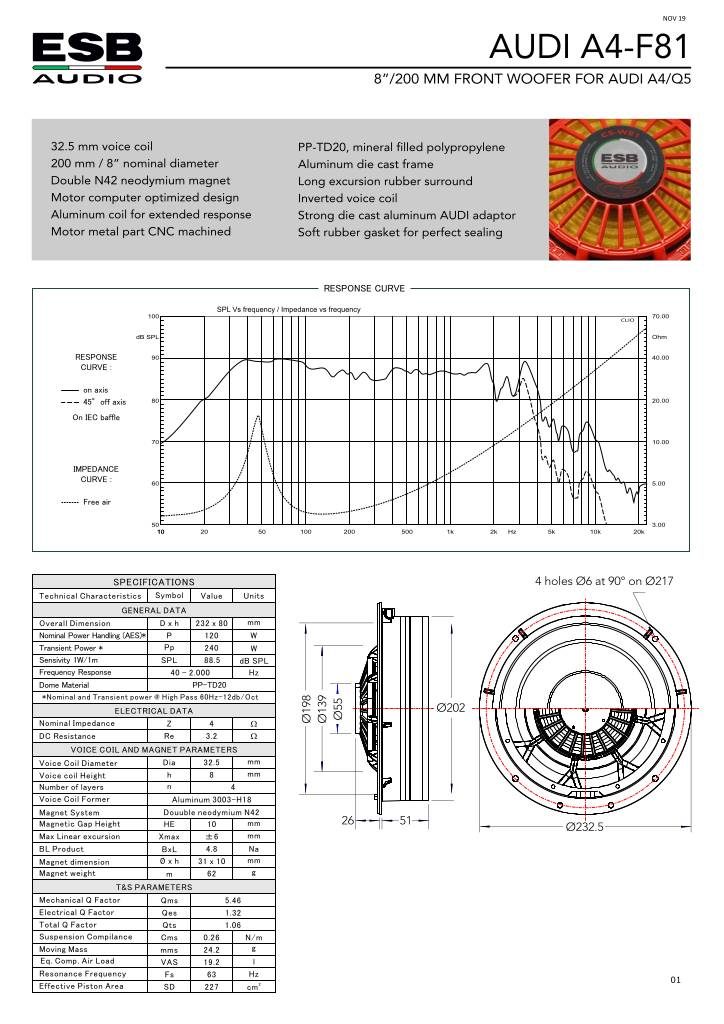

Scheda tecnica A4-F81

n-20231009113209-audia4f81-11-20-1.pdf

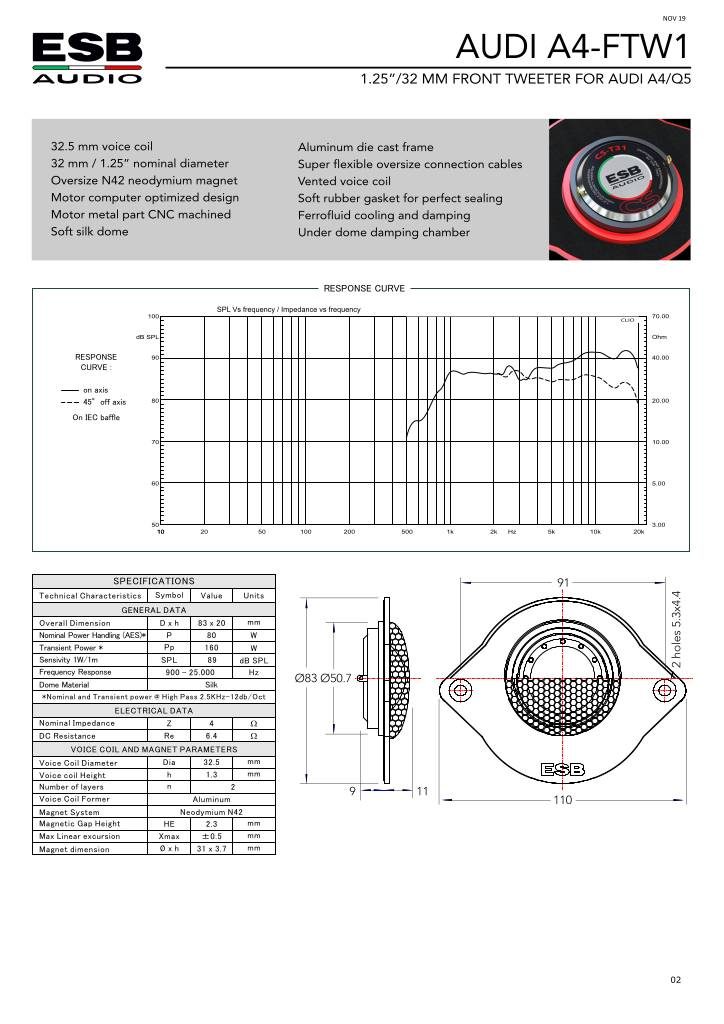

Scheda tecnica A4-FTW1

n-20231009113209-audia4ftw1-11-20-2.pdf

ESB Q5 Front 200 Technical Specifications

Tweeter A4-FTW1

  • Nominal impedance: 4 Ohm
  • Nominal power: 80 Watt
  • Transient power: 160 Watt
  • Freq. Response: 900 Hz ~ 25 KHz
  • Sensitivity: 89 dB 1W/1m

Woofer A4-F81

  • Nominal impedance: 4 Ohm
  • Nominal power: 120 Watt
  • Transient power: 240 Watt
  • Freq. Response: 40 Hz ~ 2 KHz
  • Sensitivity: 88.5 dB 1W/1m
€ 797,00 Price incl. VAT
