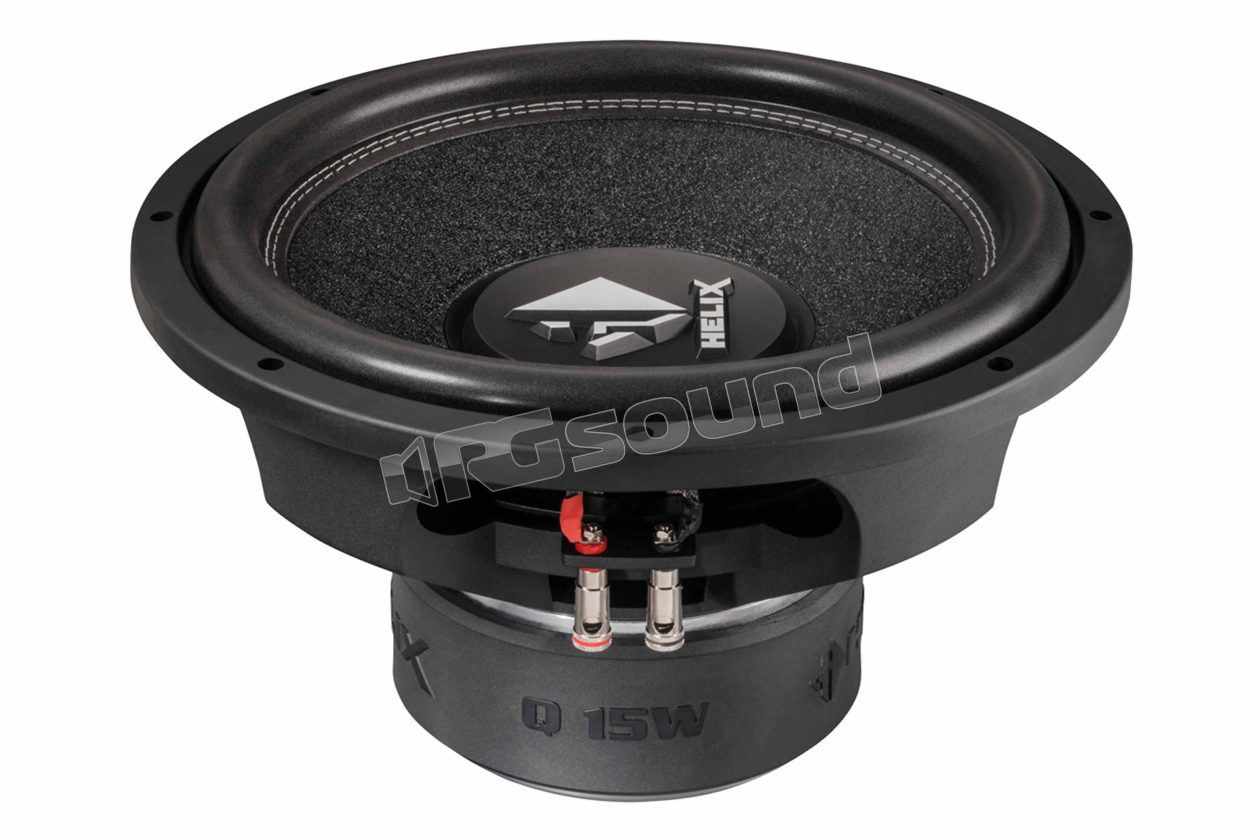

Q 15W 38 cm sub with an extremely rigid handcrafted cone

Helix

Discontinued

Your price:
€ 435,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2.000 Watt
RMS Power
1.000 Watt
Sensitivity
90 dB
Impedance
2 + 2 Ohm
Installation Depth
198 mm
Woofer Material
Cellulosa trattata

Helix Q 15W 38cm subwoofer that combines power and sensitivity

An extremely rigid cone worked by hand and large voice coils are destined to transform incredible volumes of air into deep bass.

However, pure power alone is not enough: numerous sophisticated technical details and an intelligent mix of materials ensure maximum precision and detailed bass reproduction that will satisfy even the most demanding music enthusiasts.

These subwoofers form a perfect symbiosis between maximum sound pressure and cutting-edge sound quality in a new dimension.

Technical features of the Q 15W sub

Extremely rigid uncompressed paper cone for maximum rigidity
Wide low-loss foam surround for maximum cone excursion
Concave PP dust cap with embossed HELIX logo
2 x 2 Ohms impedance allows the most flexible configuration
High-temperature dual voice coil with enormous winding height for exceptional linear excursion
Solid pressure-cast basket with diamond cut
Removable rubber gasket
Robust magnesium butyl cover with HELIX lettering for perfect magnet protection
Solid push terminals for large gauge wire
Extremely powerful, 9 x triple ferrite magnet system ventilated for maximum magnetic flux linearity
RMS power 1.000 Watt
Maximum power 2.000 Watt
Impedance 2 x 2 Ohm
Efficiency 1 W / 1 m SPL 90 dB
Installation hole diameter 348 mm
Installation depth 198 mm

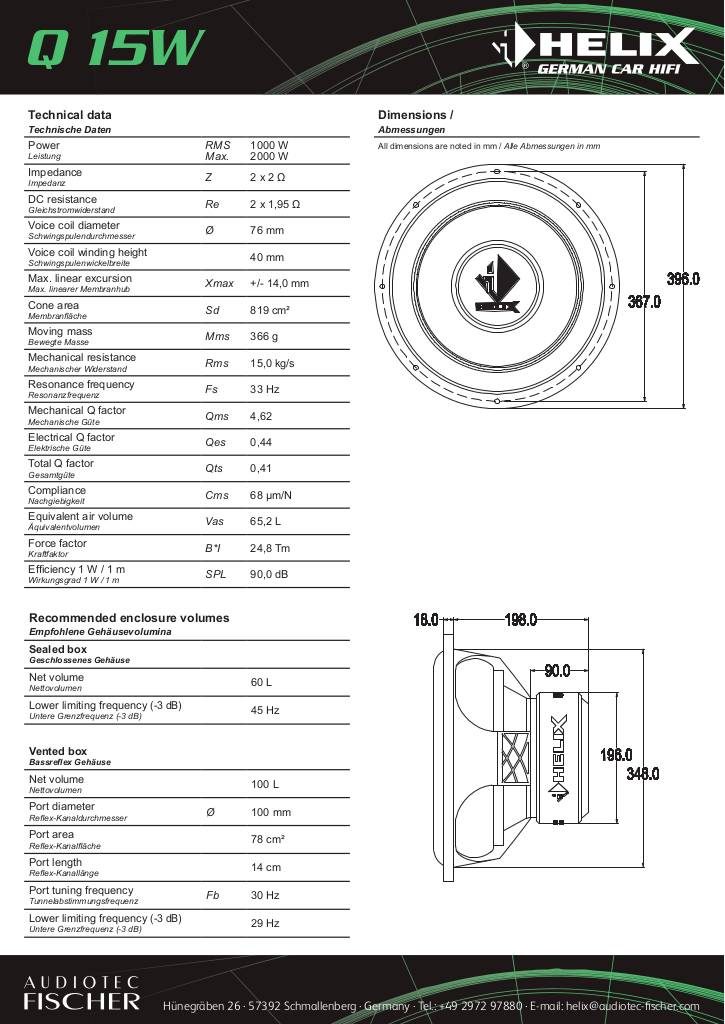

Scheda tecnica

n-20190507104535-db-helix-q-15w.pdf
Discontinued
