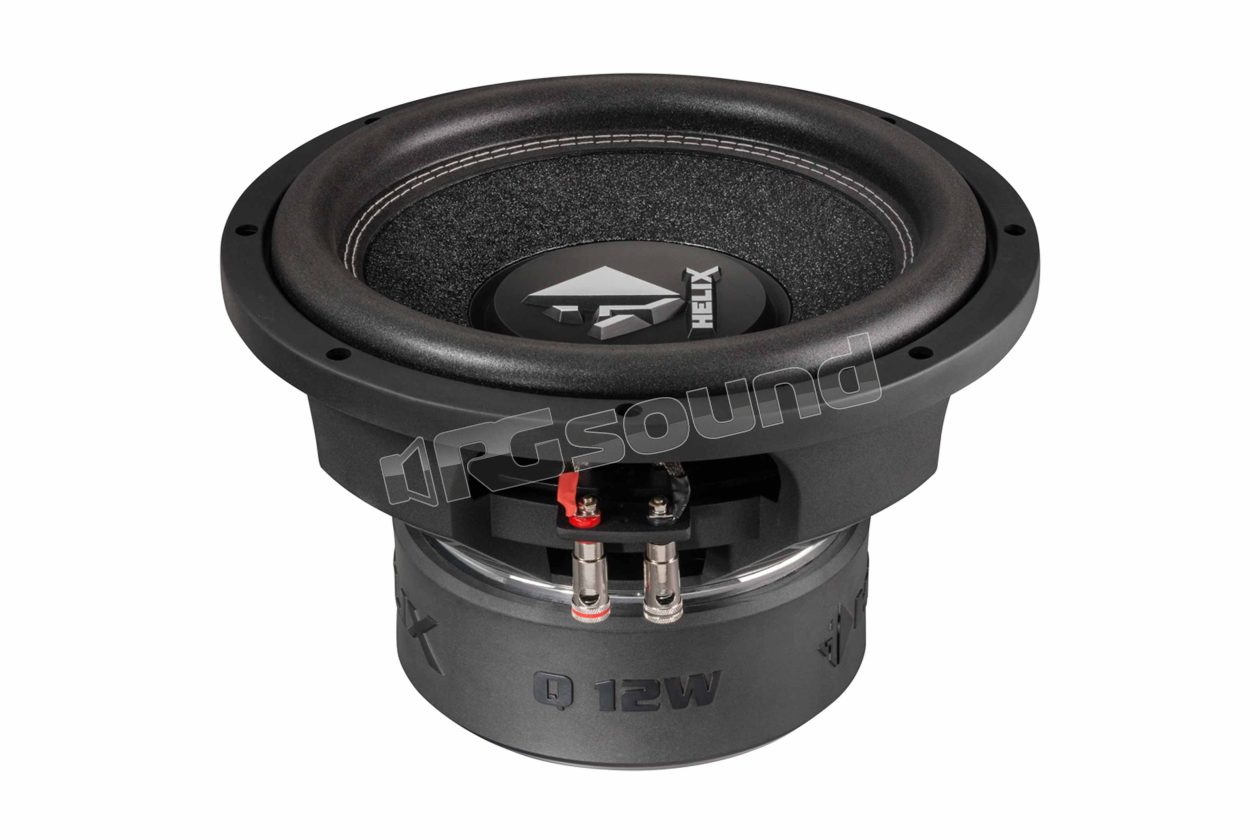

Q 12W 30cm subwoofer with handcrafted rigid cone

Helix

Discontinued

Your price:
€ 389,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
2.000 Watt
RMS Power
1.000 Watt
Sensitivity
87 dB
Impedance
2 + 2 Ohm
Installation Depth
188 mm
Woofer Material
Cellulosa trattata

Helix Q 12W Subwoofer 30cm with Hand-Worked Rigid Cone

Extremely rigid hand-worked cone and large coils are destined to transform incredible air volumes into deep bass. However, pure power alone is not enough: numerous sophisticated technical details and an intelligent mix of materials ensure maximum precision and detailed bass reproduction that will satisfy even the most demanding music enthusiasts. These subwoofers form a perfect symbiosis between maximum sound pressure and cutting-edge sound quality in a new dimension.

Q 12W Features

  • Extremely rigid non-pressed paper cone for maximum stiffness
  • Wide low-loss foam surround for maximum cone excursion
  • Concave PP dust cap with embossed HELIX logo
  • 2 x 2 Ohms impedance allows the most flexible configuration
  • High-temperature dual voice coil with enormous winding height for exceptional linear excursion
  • Solid die-cast basket as hard as rock with diamond cut
  • Removable rubber seal
  • Robust butyl magnesium cover with HELIX lettering for perfect magnet protection
  • Solid push terminals for large gauge wire
  • Extremely powerful, 9 x triple ferrite magnet system vented for maximum magnetic flux linearity

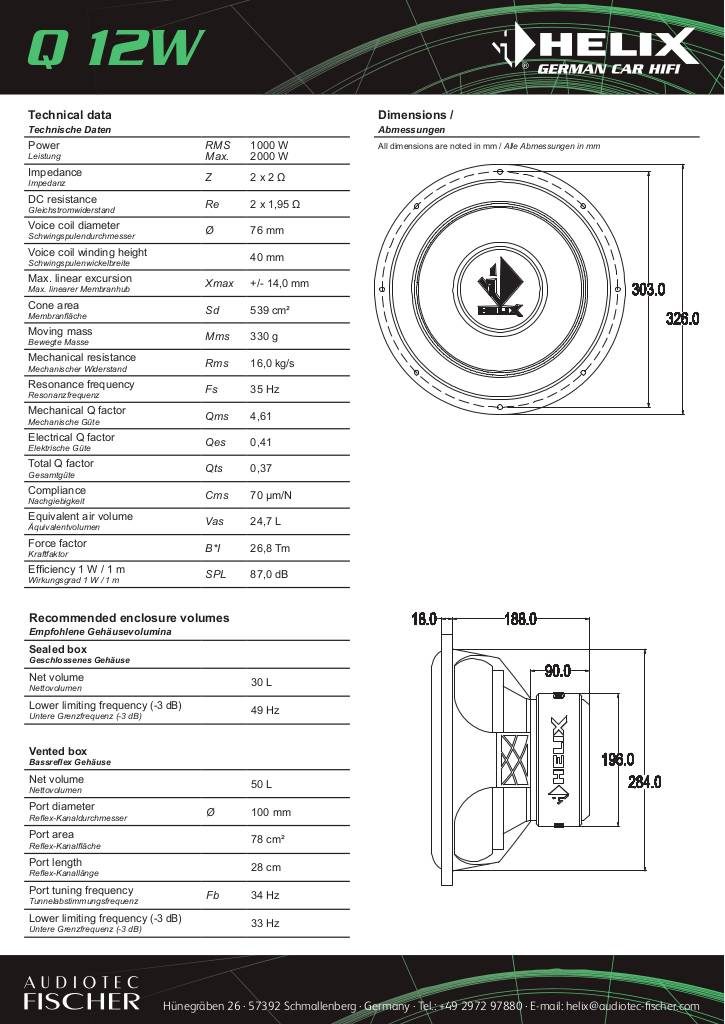

Scheda tecnica

n-20190507104940-db-helix-q-12w.pdf

Helix Q 12W Technical Specifications

  • RMS Power 1.000 Watt
  • Maximum Power 2.000 Watt
  • Impedance 2 x 2 Ohm
  • Efficiency 1 W / 1 m SPL 87 dB
  • Installation Hole Diameter 284 mm
  • Installation Depth 188 mm
Discontinued
