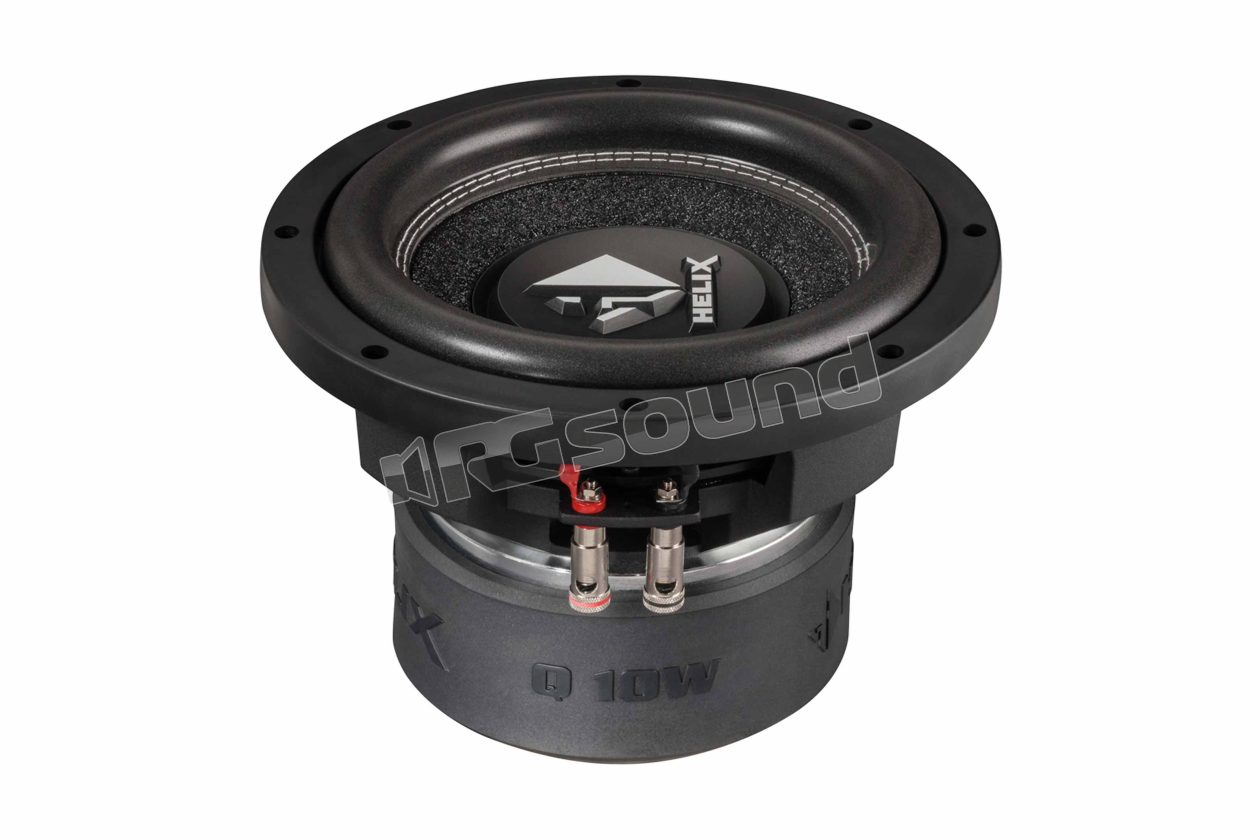

Q 10W 25cm subwoofer with stiff non-pressed paper cone

Helix

Discontinued

Your price:
€ 315,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1.500 Watt
RMS Power
750 Watt
Sensitivity
85 dB
Impedance
2 + 2 Ohm
Installation Depth
163 mm
Woofer Material
Cellulosa trattata

Helix Q 10W Subwoofer 25cm rigid cone uncompressed paper

Extremely rigid cone worked by hand and large voice coils are predestined to transform incredible volumes of air into deep bass. However, pure power alone is not sufficient: numerous sophisticated technical details and an intelligent mix of materials ensure maximum precision and detailed bass reproduction that will satisfy even the most demanding music enthusiasts. These subwoofers form a perfect symbiosis between maximum sound pressure and cutting-edge sound quality in a new dimension.

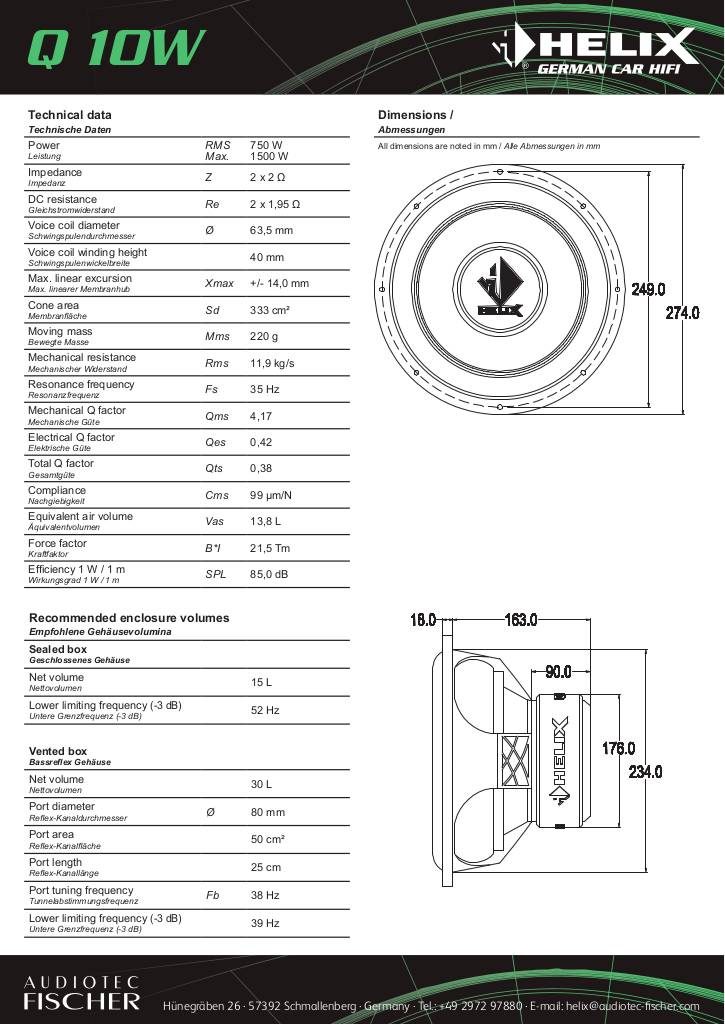

Scheda tecnica

n-20190507105707-db-helix-q-10w.pdf

Helix Q 10W Technical specifications

  • Extremely rigid uncompressed paper cone for maximum rigidity
  • Wide low-loss foam surround for maximum cone excursion
  • Concave PP dust cap with embossed HELIX logo
  • 2 x 2 Ohms impedance allows the most flexible configuration
  • High-temperature dual voice coil with enormous winding height for exceptional linear excursion
  • Solid die-cast basket rock-solid with diamond cut
  • Removable rubber seal
  • Robust magnesium butyl cover with HELIX lettering for perfect magnet protection
  • Solid thrust terminals for large gauge wire
  • Extremely powerful, 9 x triple ferrite magnet system ventilated for maximum magnetic flux linearity
  • RMS power 750 Watt
  • Maximum power 1.500 Watt
  • Impedance 2 x 2 Ohm
  • Efficiency 1 W / 1 m SPL 85 dB
  • Installation hole diameter 234 mm
  • Installation depth 163 mm
