PX335ND 320mm coaxial - Power 700W max

Ciare

Discontinued

Your price:
€ 576,00
Price per single item (VAT included)
Type
Coaxial
Speaker Size
320 mm
MAX Power
700 Watt
RMS Power
350 Watt
Frequency Response
60 - 20.000 Hertz
Sensitivity
99 dB
Impedance
8 Ohm
Weight
5,3 Kg
Installation Depth
163 mm
Voice Coil Diameter
75 mm

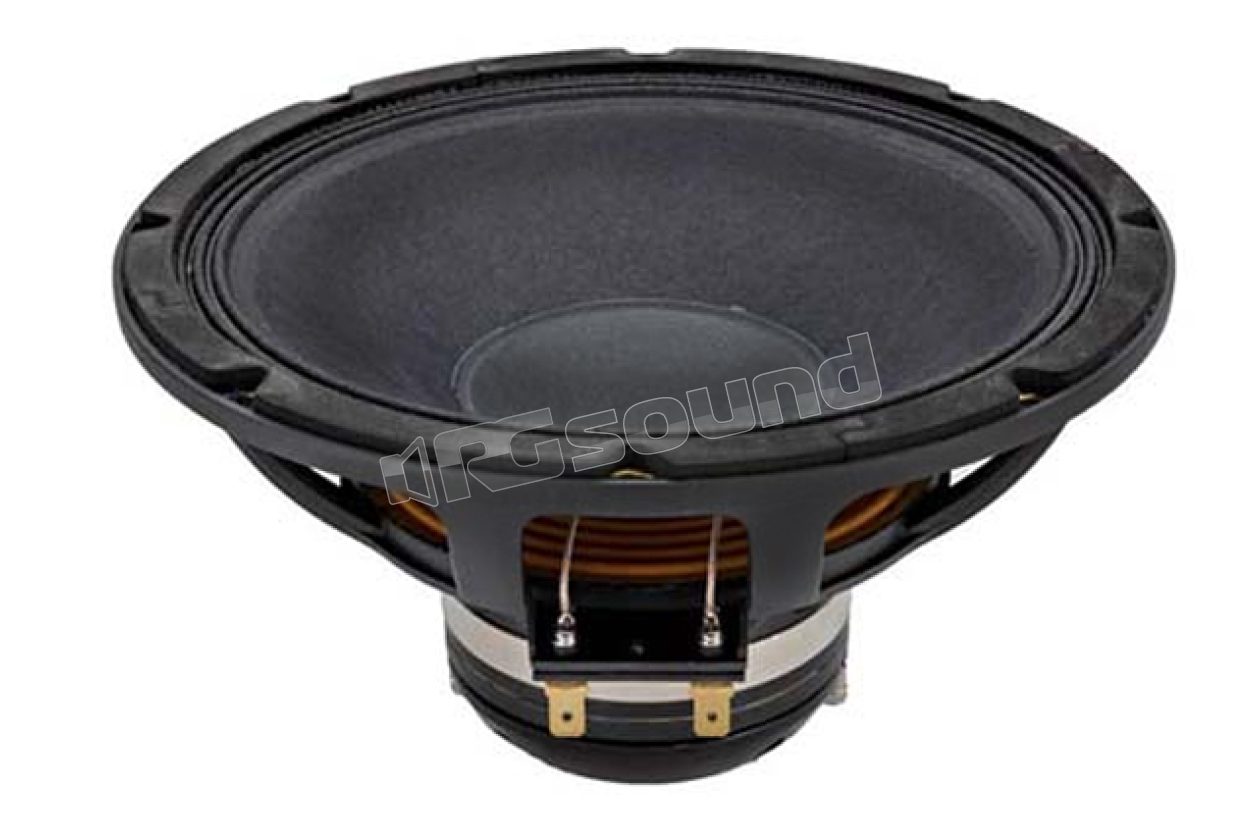

Ciare PX335ND 320mm coaxial with cellulose cone, damped NOMEX ® suspension, titanium compression driver, single neodymium magnet.

Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely independently all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

PX335ND Features

  • Max power: 700W - 400W (HF)
  • Nominal power: 350W - 200W (HF)
  • Nominal impedance: 8Ω / 8Ω (HF)
  • Diameter: 320mm
  • Voice coil diameter: 75mm - 72mm (HF)
  • Sensitivity 1W/1m: 99 dB - 109dB (HF)
  • Frequency response 60-20,000 Hz
  • Recommended load type: Bass Reflex
  • Recommended crossover frequency: 1,600 Hz
  • Recommended reflex volume: 50 dm3
  • Recommended tuning frequency: 67 Hz

PX335ND Materials

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Membrane type: Treated cellulose fiber - Titanium (HF)
  • Suspension type: Nomex
  • Dust cap type: Nomex
  • Former type: Kapton - Kapton (HF)
  • Winding type: Aluminum - Aluminum (HF)
  • Electrical connection type: Push - Faston (HF)
  • Membrane profile: Exponential - Dome (HF)
  • Gap height: 10 mm

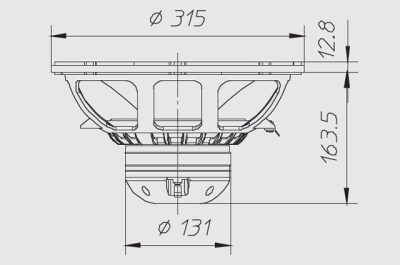

PX335ND Dimensions

  • Outer diameter: 315 mm
  • Depth under flange: 163.5 mm
  • Flange thickness: 12.8 mm
  • Panel hole: 282 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 7 mm
  • Mounting hole position diameter: 295
  • Weight with individual packaging: 5.30 Kg

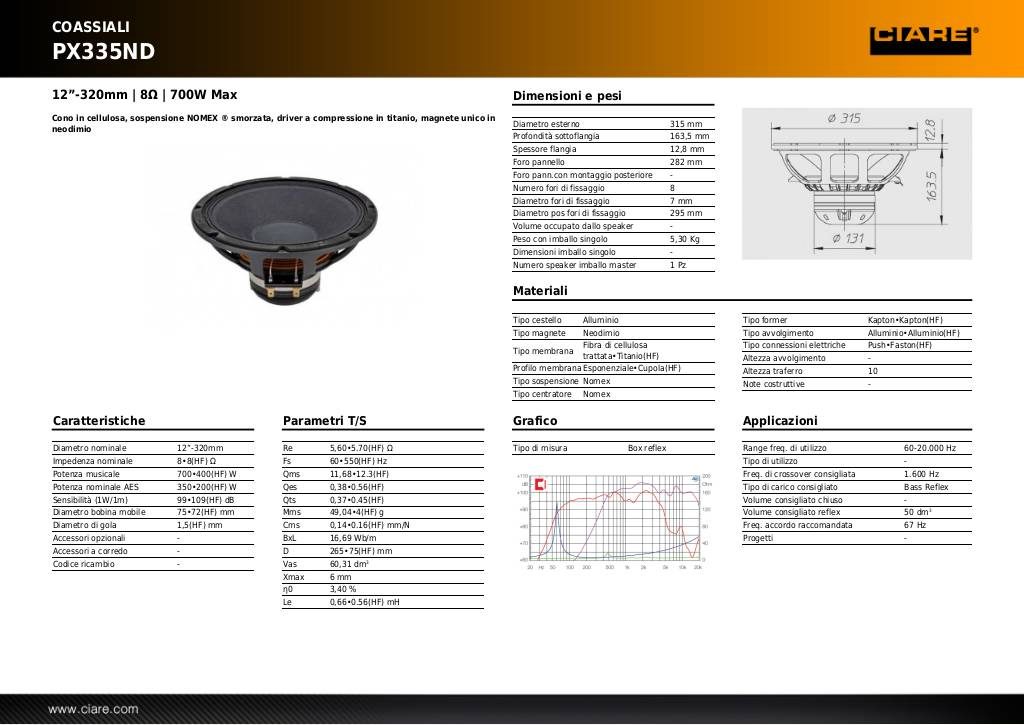

Scheda tecnica

20131106105818-px335nd.pdf

1 Ciare PX335ND 8 Ohm coaxial speaker
