PWD-X5 sub with amplified processor

Alpine
Your price:
€ 599,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Powered subwoofer
Speaker Size
4x6''
MAX Power
4x50 + 240 Watt
RMS Power
4x25 + 165 Watt
Frequency Response
20 - 20.000 Hertz
Impedance
4 Ohm
Weight
5,3 Kg
Enclosure Size
350 x 245 x 80 mm
Enclosure Type
Sealed Enclosure

Alpine PWD-X5 4.1 digital audio processor with integrated powered subwoofer

PWD-X5 is an Audio Processor with 4-channel Amplifier and powered subwoofer all in one product!

This DSP can be connected to aftermarket sources via RCA inputs or to factory head units via high-level inputs. It is supplied with auto turn-on when connected with factory head units or remote for aftermarket head units.
It includes a high-performance Digital Sound Processor (DSP) with 4-channel amplifier for the front and rear of the vehicle, in addition to an ultra-slim powered subwoofer. The compact footprint allows the PWD-X5 to be easily installed inside the car to enjoy pleasant bass enhancement.

Wired Controller
The remote control is connected to the DSP amplifier via USB.
Use the rotary controller to select presets, input sources, audio settings and more.

Download the smartphone app
This app allows you to set the main volume and subwoofer level, select sound presets, switch audio input sources, adjust 6-band parametric EQ, Crossover, Fader / Balance and much more.

Compact Installation
The very compact size, only 350 mm in length, 245 mm in width and 80 mm in height, allows you to install the PWD-X5 under the front seats
of many vehicles. It can also be easily installed in the trunk of sedan or coupe cars. The total weight of the product is just over 5 kg.

Advanced Audio Tuning Functions
Use the integrated 10-band parametric equalizer, digital time correction and digital crossover to best tune the sound of your
vehicle. You can perform the main tuning by connecting a PC and using the dedicated software or via the included wired controller.

Bluetooth Audio Streaming
The PWD-X5 includes an included Bluetooth dongle that can be connected to one of the USB ports on the DSP amplifier, you can stream music from your smartphone. Just pair your phone and select Bluetooth as the source on the wired remote to listen to all your music.

Wide Connectivity Options
You can connect the PWD-X5 to an aftermarket radio using RCA inputs. If you have a factory radio in your car that doesn't have RCA connections, you can connect it to the DSP amplifier using high-level inputs. There are also 2 USB ports used for the included external Bluetooth dongle and for connecting the wired remote control and PC for installation.

All-in-one Audio Upgrade
The PWD-X5 has a digital audio processor (DSP), compact subwoofer and 4-channel amplifier - all in one box. This is perfect for smaller vehicles and for customers who don't want to install many different devices in their car.
The integrated amplifier offers 4x 50 Watts for the front + rear channels and 240 Watts for the integrated subwoofer (peak power). Installation brackets and a wiring kit are included in the set.

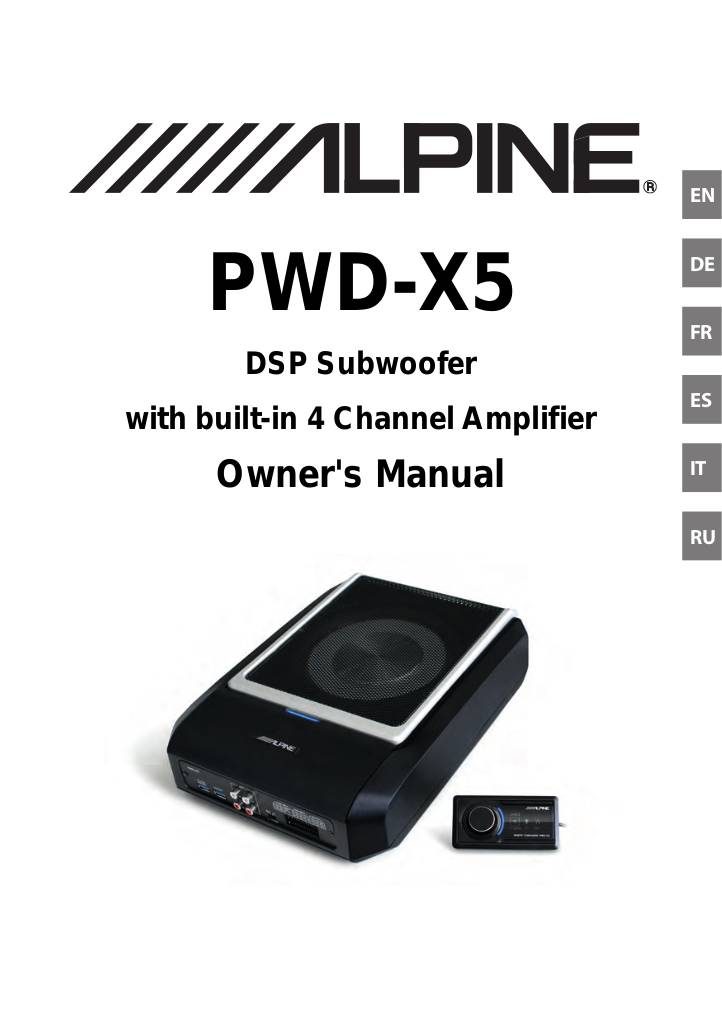

Manuale utente

n-20181120113430-om-pwd-x5-en.pdf

Technical SpecificationsAlpine PWD-X5

Output Powers:
Rated power: 25 W x 4 + 165 W;
Peak power: 50 W x 4 + 240 W.

Signal-to-noise ratio: ≥80dB
Bass boost: -12dB ~ + 12dB
Frequency response: 20Hz ~ 20KHz
Input impedance: low-level input: 20 KΩ; high-level input: 100Ω
Phase selection: 0 ° / 180 °
Remote ON: high-level DC input activation / REM
Operating temperature: -10 ~ 60 ° C
Storage temperature: -40 ~ 85 ° C
Power supply: DC 14.4 V (9 V ~ 16 V) with negative ground
Active REM input: high-level activation options (H1 + / H3 +) and ACC activation for selection
Active REM output: activation voltage output + 12V (0.5A)
Standby current: 750mA
Net weight: 5.35 kg
Dimensions: 350 mm (L) x 245 mm (W) x 80 mm (H)
