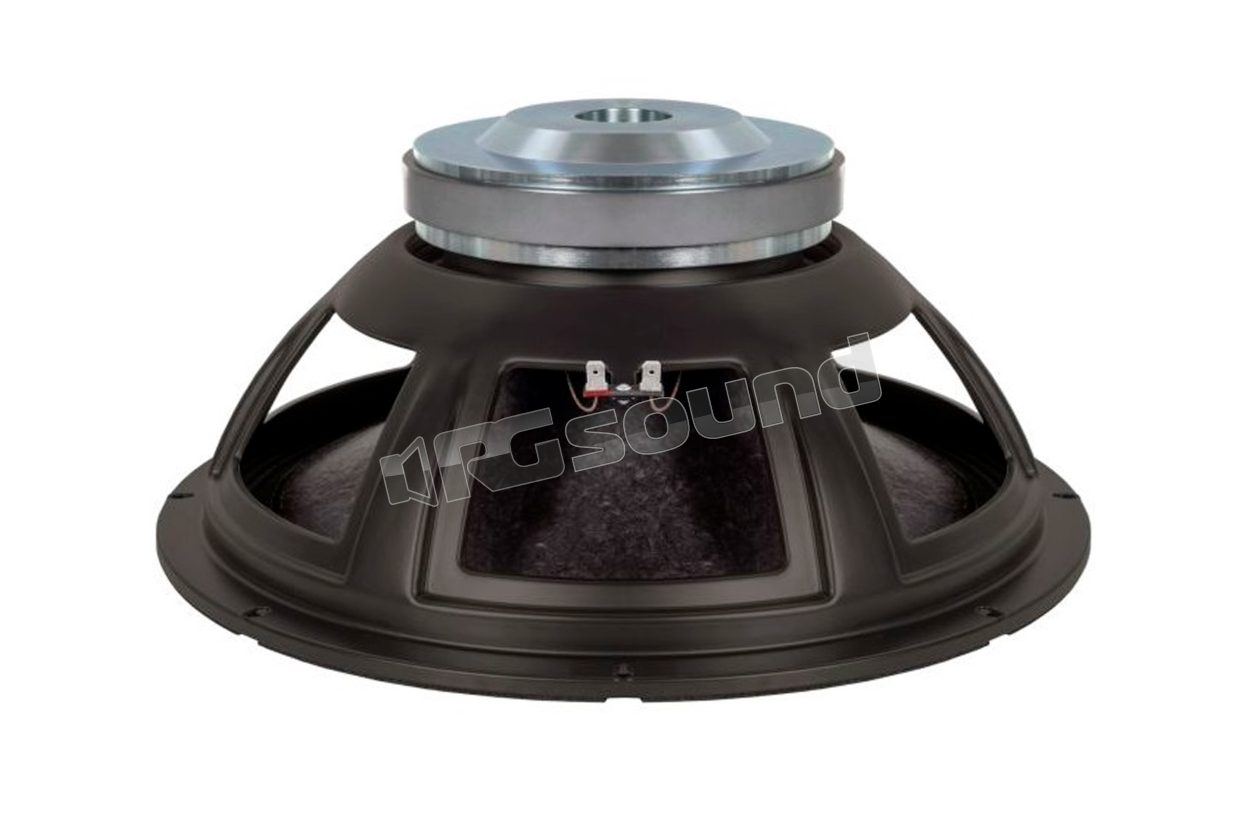

PWA15.75-8

Ciare
Your price:
€ 175,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
40 - 3000 Hertz
Sensitivity
97,9 dB
Impedance
8 Ohm
Weight
6,8 Kg
Installation Depth
174 mm
Voice Coil Diameter
75 mm

Ciare PWA15.75-8 woofer 15" - 380 mm, voice coil 75 mm, 1000 Watt max, 98 dB, 40-3000 Hz, 8 Ohm.

Ciare PWA15.75 is a professional woofer with a diameter of 380 mm (15") and nominal impedance of 8 Ω. Its construction structure includes the use of a steel sheet basket. The installation of this woofer is recommended in a bass reflex enclosure.

Furthermore, the moving part of the Ciare PWA15.75 woofer includes a damped cellulose diaphragm coupled with rubber suspensions. The use of rubber makes the moving part of this woofer more durable over time. In fact, rubber suspensions do not suffer from the problem of rapid wear of those in polyurethane foam. Moreover, the voice coil that completes the moving part has a nominal diameter of 75 mm and a nominal impedance of 8 Ω. The electrical power that the voice coil can handle is 500 Watt AES. Finally, the frequency range of use declared by Ciare for this woofer ranges from 40 Hz to 3 kHz, with an average nominal sensitivity of 97.9 dB SPL (2.83 V/1 m).

Scheda tecnica

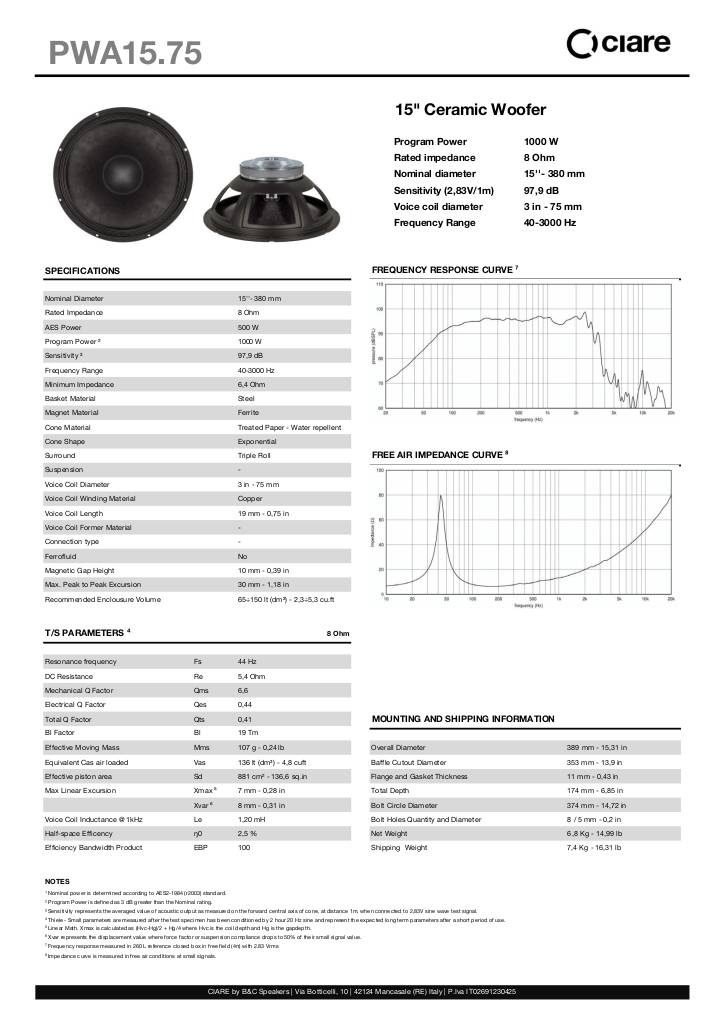

n-20221228171439-ciare-pwa15-75-en.pdf

Ciare PWA15.75 technical specifications

Nominal Diameter 15" - 380 mm
Nominal Impedance 8 Ohm
AES Power 500 W
Program Power 1000 W
Sensitivity 97.9 dB
Frequency Range 40-3000 Hz
Minimum Impedance 6.4 Ohm
Basket Material Steel
Magnet Material Ferrite
Cone Material Treated Paper - Water-repellent
Cone Shape Exponential
Triple Roll Surround
Voice Coil Diameter 3 inches - 75 mm
Voice Coil Winding Material Copper
Voice Coil Length 19 mm - 0.75 in
Magnetic Gap Height 10 mm - 0.39 in
Max. Peak to Peak Excursion 30 mm - 1.18 in
Recommended Container Volume 65÷150 lt (dm³) - 2.3÷5.3 cu.ft

€ 175,00 Price incl. VAT
