PWA12.75-8

Ciare
Your price:
€ 145,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
320 mm
MAX Power
1800 Watt
RMS Power
900 Watt
Frequency Response
50 - 3000 Hertz
Sensitivity
97,5 dB
Impedance
8 Ohm
Weight
4,2 Kg
Installation Depth
136 mm
Voice Coil Diameter
75 mm

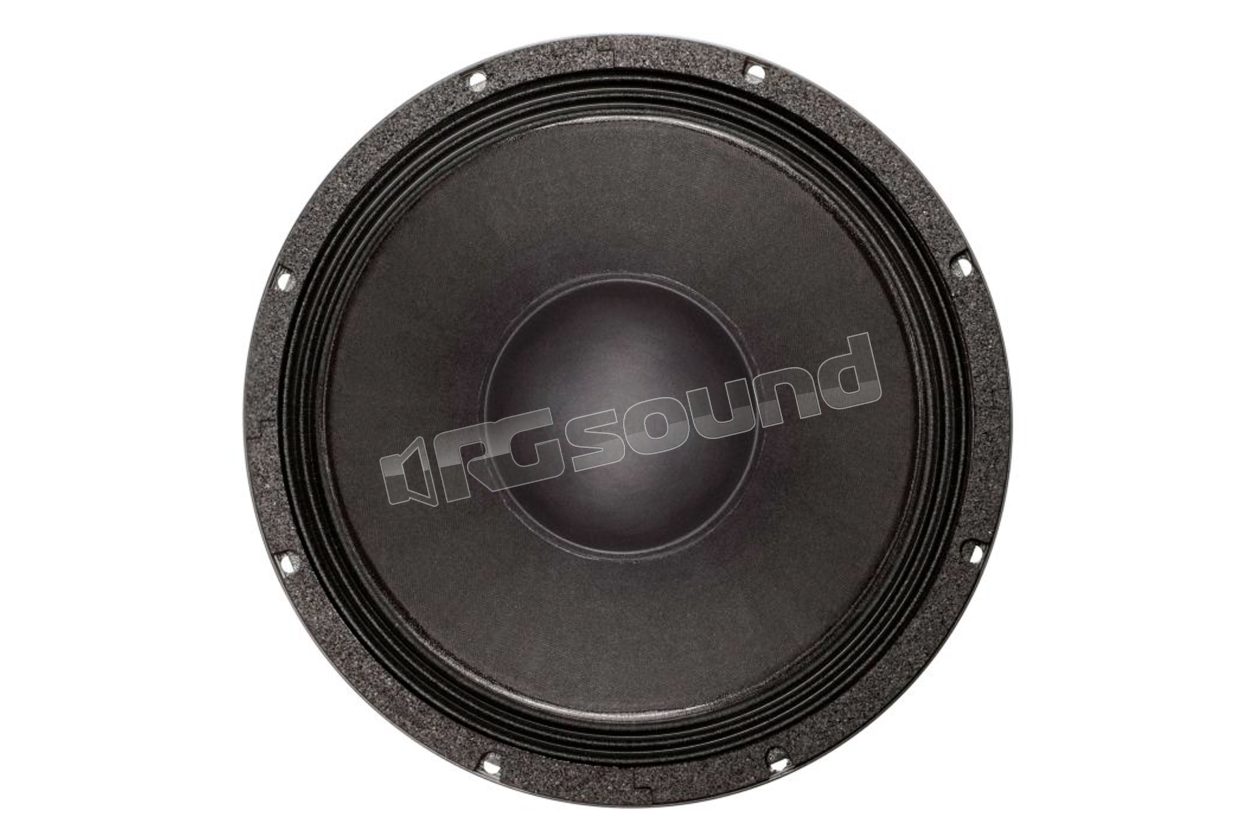

Ciare PWA12.75-8 woofer 12''- 320 mm, 75 mm voice coil, 900 Watt, 97.1 dB, 50-3000 Hz, 8 Ohm.

The Ciare PWA12.75 is a professional woofer with a nominal diameter of 320 mm (12″), and nominal impedance of 8 Ω. Its construction structure provides for the use of a basket made of steel sheet.

Furthermore, the moving group of the Ciare PWA12.75 woofer features a damped cellulose membrane coupled with rubber suspensions. The use of rubber makes the moving group of this woofer more durable over time. In fact, rubber suspensions are not affected by the problem of rapid wear of those made of polyurethane foam. Moreover, the voice coil that completes the moving group has a nominal diameter of 75 mm and a nominal impedance of 8 Ω. The electrical power that the voice coil can handle is 900 WattAES. Finally, the frequency range of use declared by Ciare for this woofer ranges from 50 Hz to 3 kHz, with a nominal average sensitivity of 97.5 dBSPL (2.83 V/1 m).

Scheda tecnica

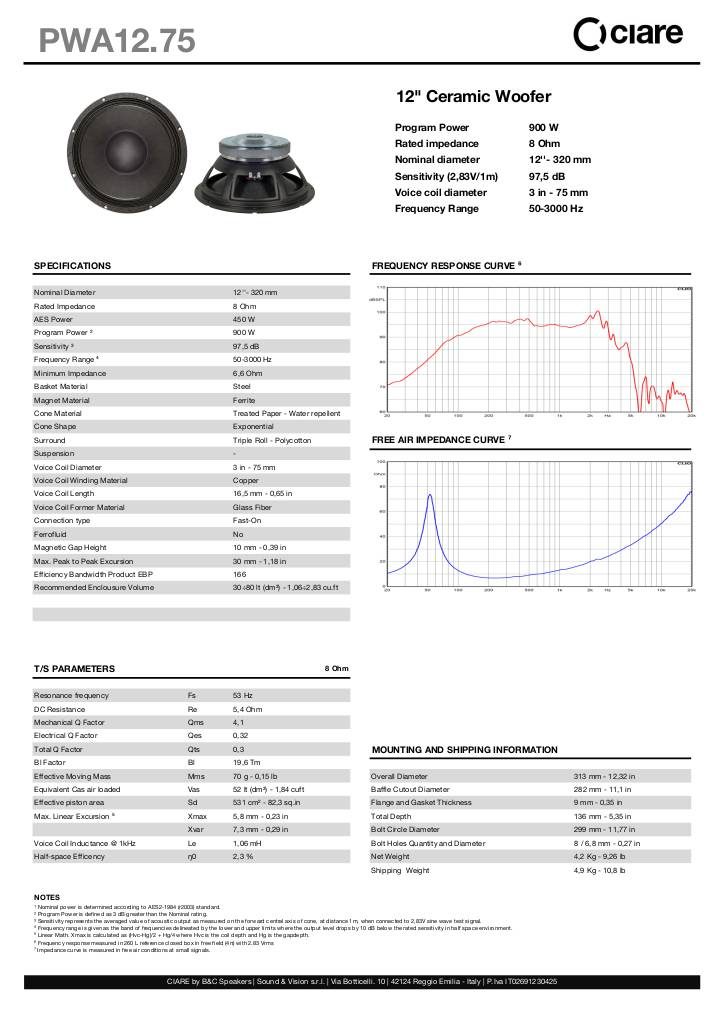

n-20221228173726-ciare-pwa12-75-en.pdf

Ciare PWA12.75 technical specifications

Woofer

AES Power 900 Watt

Nominal Impedance 8 Ohm

Sensitivity (dB SPL 2.83 V/1 m) 97.5

Diameter (mm/in) 320/12″

Voice Coil Diameter (mm/in) 75/3″

Weight (Kg) 4.2

Bxl (Tm) 19.60

Nominal Voice Coil Diameter (mm) 75

Nominal Diameter 12" / 320 mm

Fs (Hz) 53

Mms (g) 70

Qts 0.30

Vas (l) 52

€ 145,00 Price incl. VAT
