PWA10.64-8

Ciare
Your price:
€ 126,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
60 - 4000 Hertz
Sensitivity
97,5 dB
Impedance
8 Ohm
Weight
4 Kg
Installation Depth
109 mm
Voice Coil Diameter
64 mm

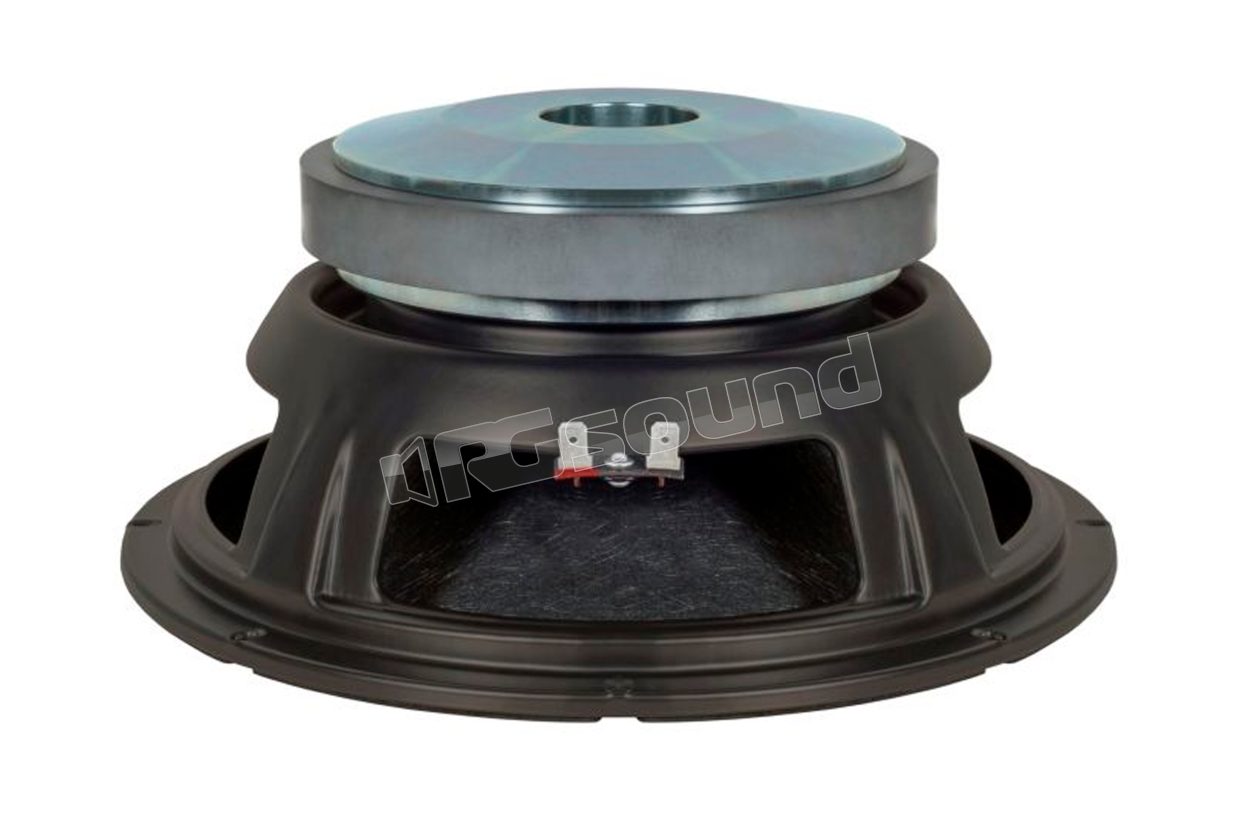

Ciare PWA10.64-8 woofer 10''- 250 mm, 64 mm voice coil, maximum power 600 Watts, 97.5 dB, 60-4000 Hz, 8 Ohm.

Ciare PWA10.64 is a professional woofer with a nominal diameter of 250 mm (10″), and nominal impedance of 8 Ω. Its construction structure includes a steel sheet basket. The installation of this woofer is recommended in bass reflex mode.

Furthermore, the moving part of the Ciare PWA10.64 woofer includes a damped cellulose membrane coupled with rubber suspensions. The use of rubber makes the moving part of this woofer more durable over time. In fact, rubber suspensions do not suffer from the problem of rapid wear of polyurethane foam ones. Moreover, the voice coil that completes the moving part has a nominal diameter of 64mm and a nominal impedance of 8 Ω. The electrical power that the voice coil can handle is 300 WattAES. Finally, the frequency range of use declared by Ciare for this woofer ranges from 60Hz to 4kHz, with an average nominal sensitivity of 97.5 dBSPL (2.83V/1m).

Ciare PWA10.64 main features

Speaker type woofer

Power (AES) 300 Watt

Nominal Impedance 8 Ohm

Sensitivity (dB SPL 2.83V/1m) 97.5

Diameter (mm/in) 250/10″

Voice Coil Diameter (mm/in) 64/2.5″

Weight (Kg) 4

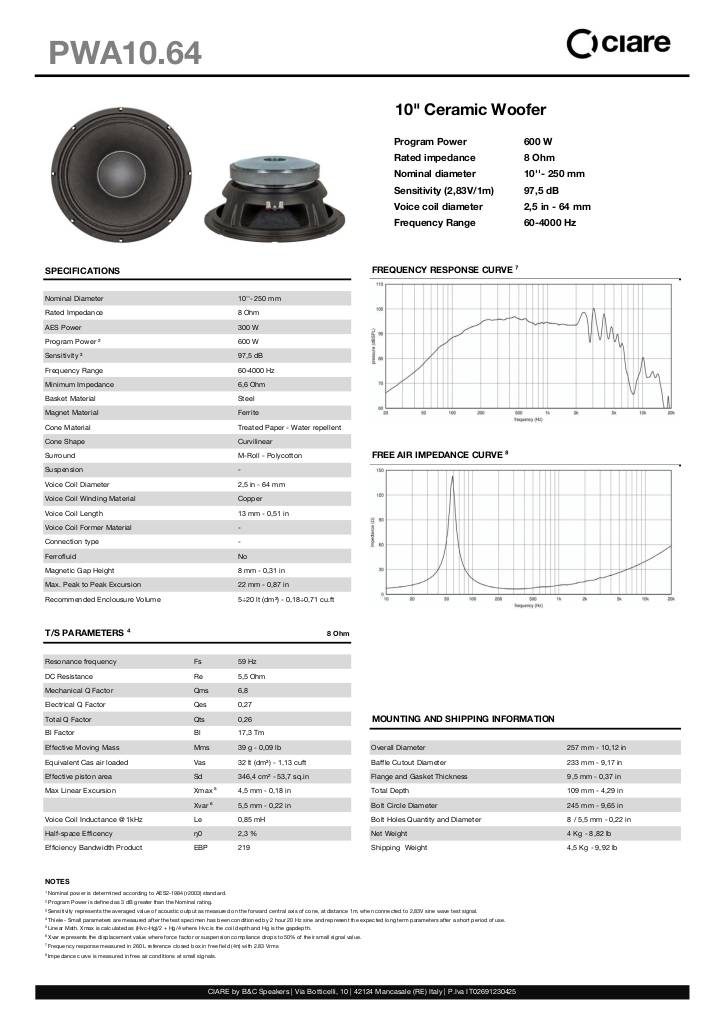

Scheda tecnica

n-20221228180731-ciare-pwa10-64-en.pdf

Ciare PWA10.64 technical specifications

Nominal Diameter 10''- 250 mm
Nominal Impedance 8 Ohm
AES Power 300 W
Program Power 600 W
Sensitivity 97.5 dB
Frequency Range 60-4000 Hz
Minimum Impedance 6.6 Ohm
Basket Material Steel
Magnet Material Ferrite
Cone Material Treated Paper - Water Repellent
Cone Shape Curvilinear
Surround M-Roll - Polycotton
Mobile Voice Coil Diameter 2.5 inches - 64 mm
Mobile Voice Coil Winding Material Copper
Mobile Voice Coil Length 13 mm - 0.51 in
Magnetic Gap Height 8 mm - 0.31 in
Maximum Peak to Peak Excursion 22 mm - 0.87 in
Recommended Enclosure Volume 5÷20 lt (dm³) - 0.18÷0.71 cu.ft

€ 126,00 Price incl. VAT
