PWA10.50-8

Ciare
Your price:
€ 99,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
50 - 2000 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
2,8 Kg
Installation Depth
109 mm
Voice Coil Diameter
50 mm

Ciare PWA10.50-8 woofer 10''- 250 mm, voice coil 50 mm, maximum power 500 Watt, 97 dB, 50-2000 Hz, 8 Ohm.

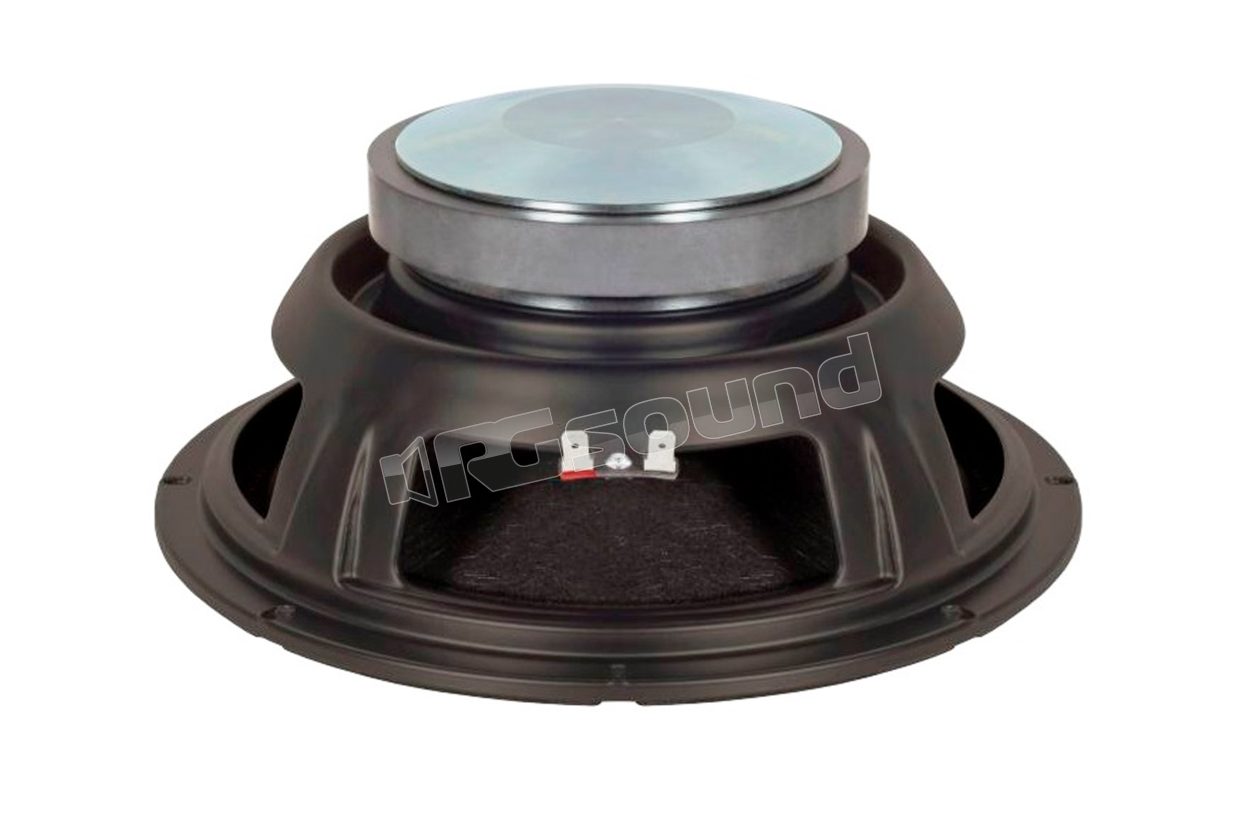

Ciare PWA10.50 is a professional woofer with a nominal diameter of 250 mm (10″), and nominal impedance of 8 Ω. Its construction structure provides for the use of a steel sheet basket. Installation of this woofer is recommended in bass reflex mode.

Furthermore, the moving part of the Ciare PWA10.50 woofer features a damped cellulose membrane coupled with rubber suspensions. The use of rubber makes the moving part of this woofer more durable over time. In fact, rubber suspensions do not suffer from the problem of rapid wear of polyurethane foam ones. Moreover, the coil that completes the moving part has a nominal diameter of 50mm and a nominal impedance of 8 Ω. The electrical power that the coil can handle is 250 WattAES. Finally, the range of frequencies for use declared by Ciare for this woofer goes from 50Hz to 2kHz, with an average nominal sensitivity of 97 dBSPL (2.83V/1m).

Scheda tecnica

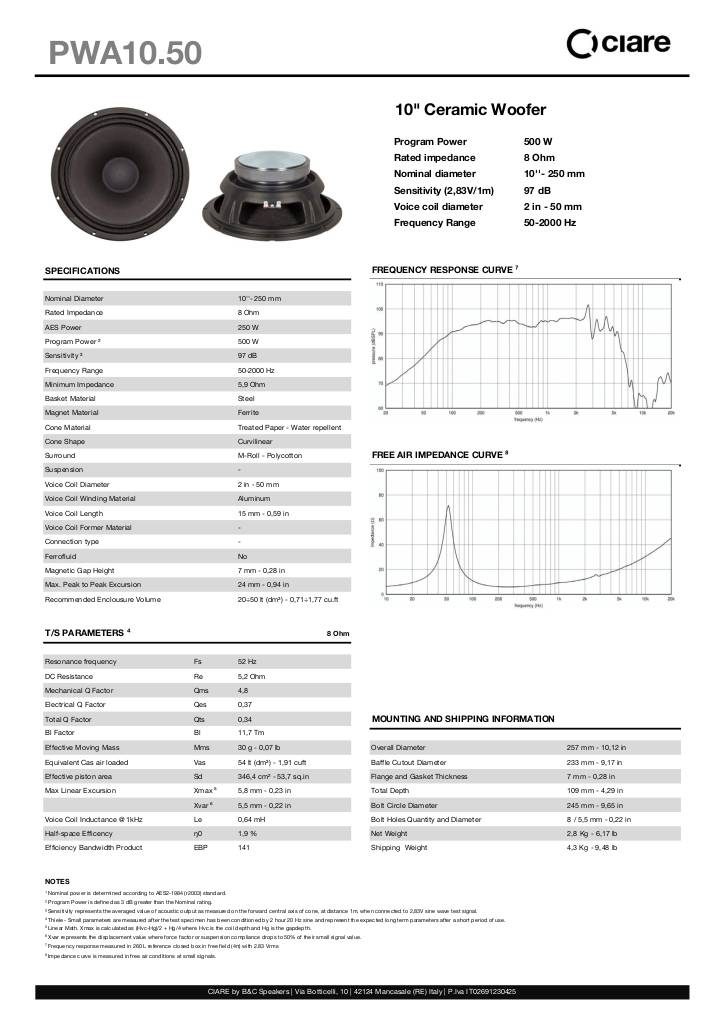

n-20221228181423-ciare-pwa10-50-en.pdf

Ciare PWA10.50 technical specifications

Nominal Diameter 10''- 250 mm
Nominal Impedance 8 Ohm
AES Power 250 W
Program Power 500 W
Sensitivity 97 dB
Frequency Range 50-2000 Hz
Minimum Impedance 5.9 Ohm
Basket Material Steel
Magnet Material Ferrite
Cone Material Treated Paper - Water Repellent
Cone Shape Curvilinear
Surround M-Roll - Polycotton
Moving Coil Diameter 2 inches - 50 mm
Moving Coil Winding Material Aluminum
Moving Coil Length 15 mm - 0.59 in
Magnetic Gap Height 7 mm - 0.28 in
Max. Peak to Peak Excursion 24 mm - 0.94 in
Recommended Enclosure Volume 20÷50 lt (dm³) - 0.71÷1.77 cu.ft
