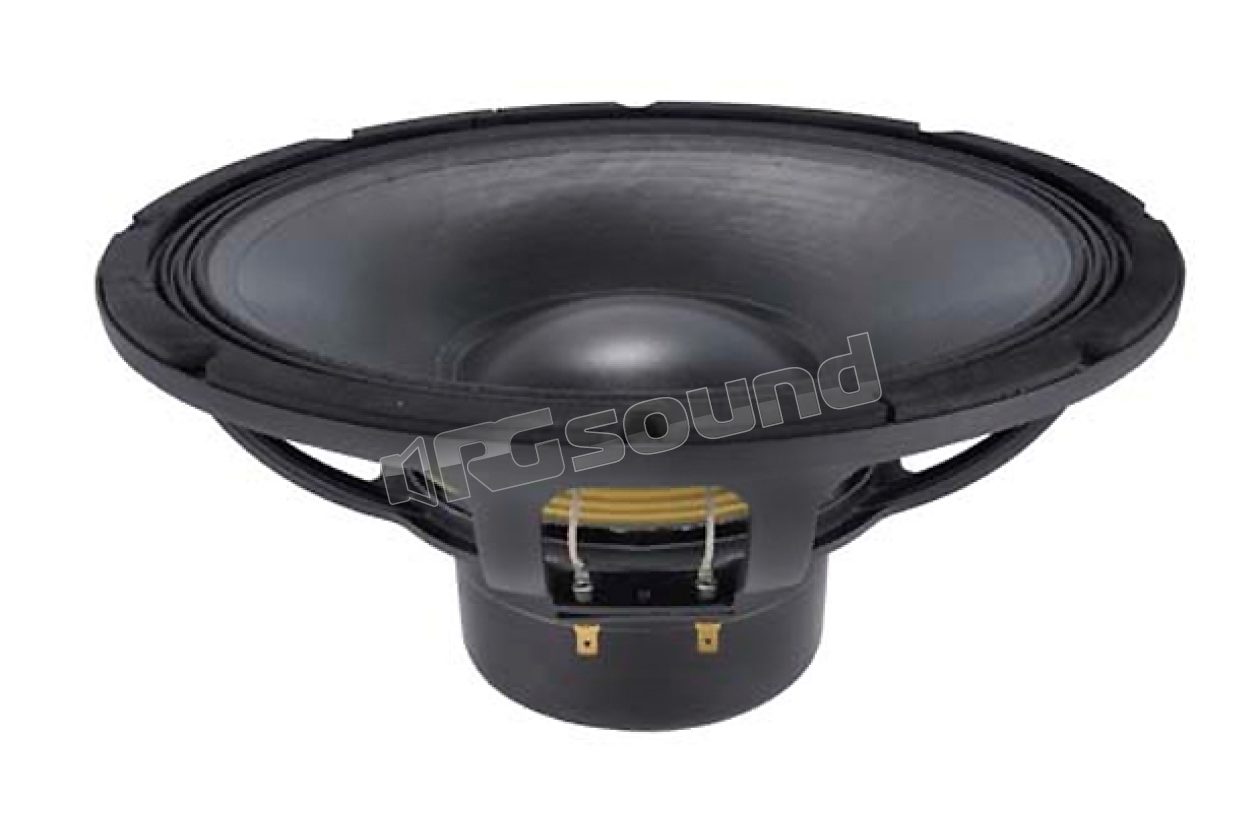

PW395ND 380mm woofer - 2000W max power

Ciare

Discontinued

Your price:
€ 478,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
35 - 2.000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
8 Kg
Installation Depth
166,5 mm
Voice Coil Diameter
100 mm

Ciare PW395ND woofer 380mm with cellulose diaphragm, cloth suspension with NOMEX ®, sandwich winding with aluminum wire. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

PW395ND Features

  • Max power: 2,000W
  • Nominal power: 1,000W
  • Nominal impedance: 8Ω
  • Diameter: 380mm
  • Voice coil diameter: 100mm
  • Sensitivity 1W/1m: 96 dB
  • Frequency response 35-2,000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 110 dm3
  • Recommended tuning frequency: 39 Hz

PW395ND Materials

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Suspension type: Nomex
  • Dust cap type: Nomex
  • Former type: Kapton
  • Winding type: Aluminum sandwich
  • Air gap height: 14 mm

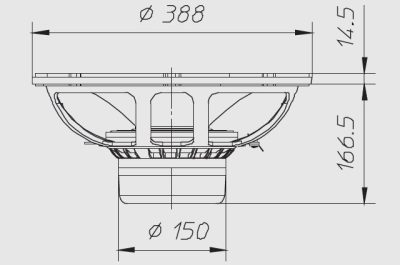

PW395ND Dimensions

  • External diameter: 388 mm
  • Depth under flange: 166.5 mm
  • Flange thickness: 14.5 mm
  • Rear panel hole: 354 mm
  • Number of mounting holes: 8
  • Mounting holes diameter: 7 mm
  • Mounting holes position diameter: 370
  • Weight with single packaging: 8.00 kg

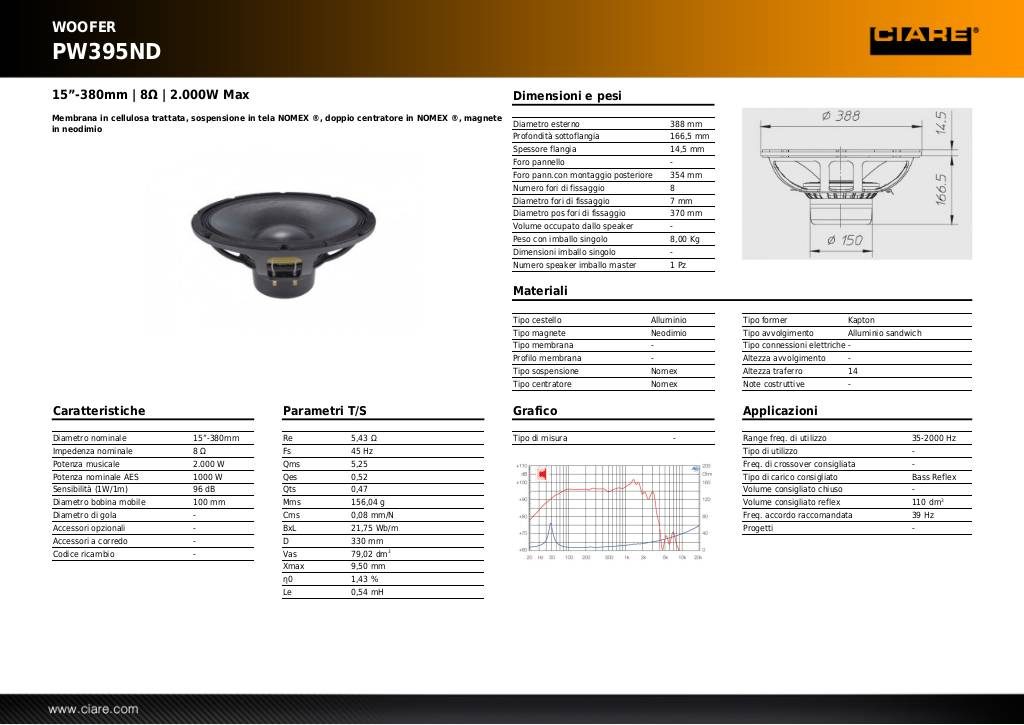

Scheda tecnica

20131106101513-pw395nd.pdf

1 Ciare PW395ND woofer 8 Ohm speaker
Discontinued
