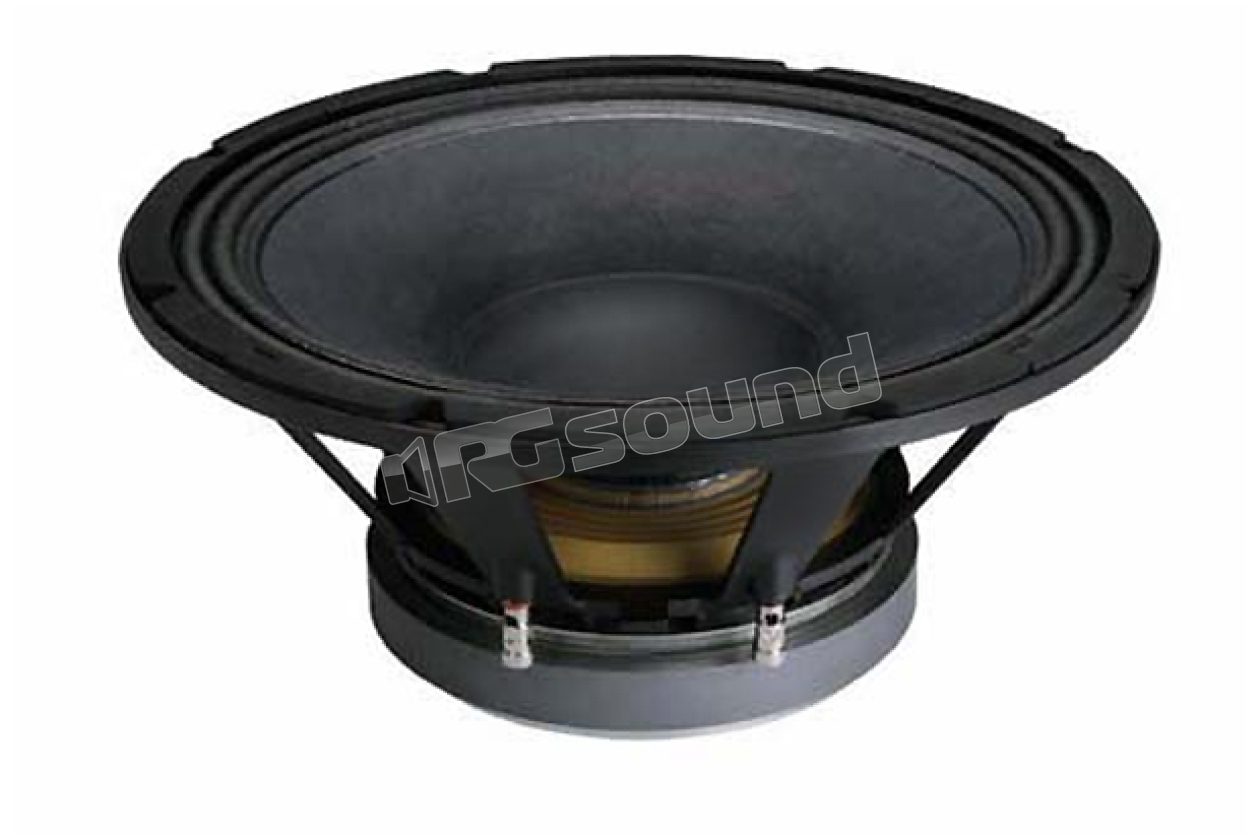

PW390 380mm woofer - 1000W max power

Ciare

Discontinued

Your price:
€ 275,40
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
35 - 1.500 Hertz
Sensitivity
100 dB
Impedance
8 Ohm
Weight
12,1 Kg
Installation Depth
161 mm
Voice Coil Diameter
100 mm

Ciare PW390 woofer 380mm with cellulose membrane, cloth suspension with NOMEX ®, sandwich winding with aluminum wire. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allows the company to achieve the highest quality standards in the realization of every component.

PW390 Features

  • Max power: 1,000W
  • Rated power: 500W
  • Nominal impedance: 8Ω
  • Diameter: 380mm
  • Voice coil diameter: 100mm
  • Sensitivity 1W/1m: 100 dB

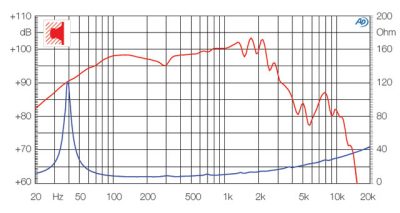

  • Frequency response 35-1,500 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 95 dm3
  • Recommended tuning frequency: 52 Hz

PW390 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Nomex
  • Former type: Kapton
  • Winding type: Aluminum sandwich
  • Air gap height: 10 mm

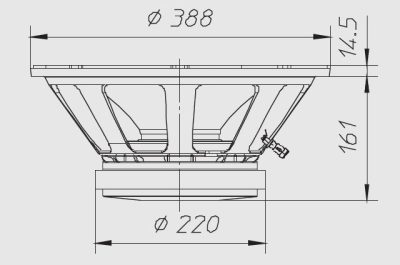

PW390 Dimensions

  • Outer diameter: 388 mm
  • Depth below flange: 161 mm
  • Flange thickness: 14.5 mm
  • Panel cutout: 350 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 6.5 mm
  • Mounting hole position diameter: 370
  • Weight with single package: 12.10 Kg

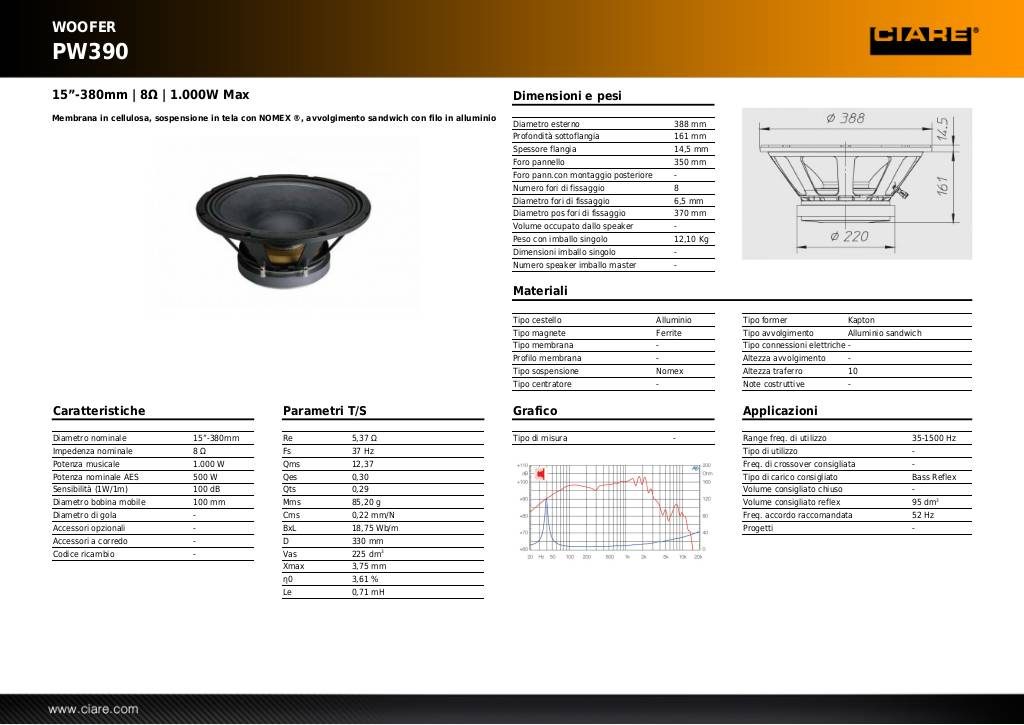

Scheda tecnica

20131106100459-pw390.pdf
