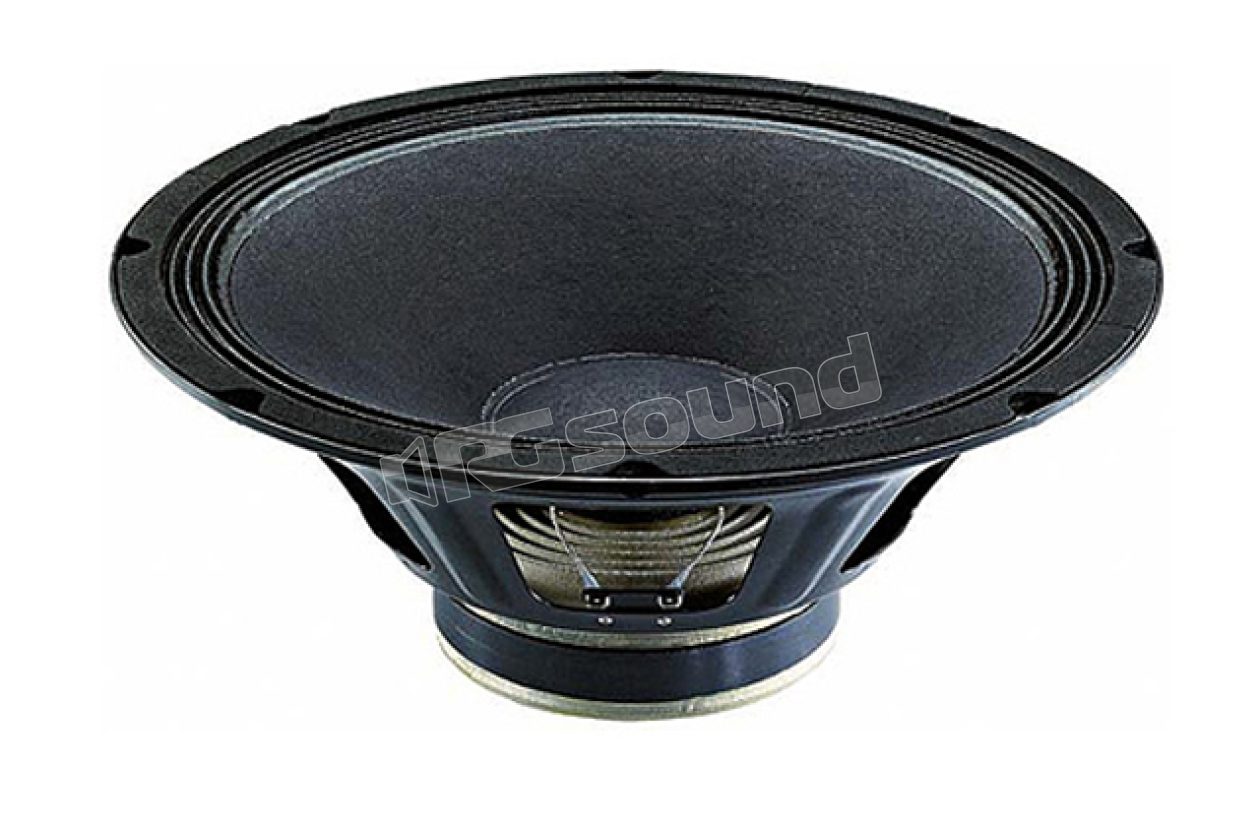

PW388 380mm woofer - 500W max power

Ciare

Discontinued

Your price:
€ 153,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
30 - 3.000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
5,6 Kg
Installation Depth
148,5 mm
Voice Coil Diameter
64 mm

Ciare PW388 woofer 380mm with cellulose cone with NOMEX®, cloth suspension with NOMEX. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization allows the company to achieve the highest quality standards in the realization of each component.

PW388 Features

  • Max power: 500W
  • Nominal power: 250W
  • Nominal impedance: 8Ω
  • Diameter: 380mm
  • Voice coil diameter: 64mm
  • Sensitivity 1W/1m: 98 dB
  • Frequency response 45-2,000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 148 dm3
  • Recommended tuning frequency: 40 Hz

PW388 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Nomex
  • Former type: Kapton
  • Voice coil height: 7 mm

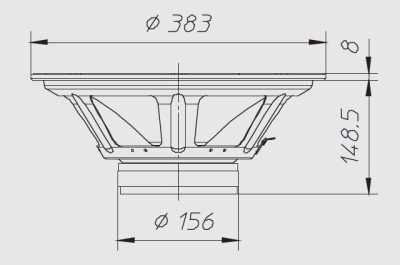

PW388 Dimensions

  • External diameter: 383 mm
  • Sub-flange depth: 148.5 mm
  • Flange thickness: 8 mm
  • Panel hole: 350 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 8 mm
  • Mounting hole position diameter: 370
  • Weight with single package: 5.60 Kg

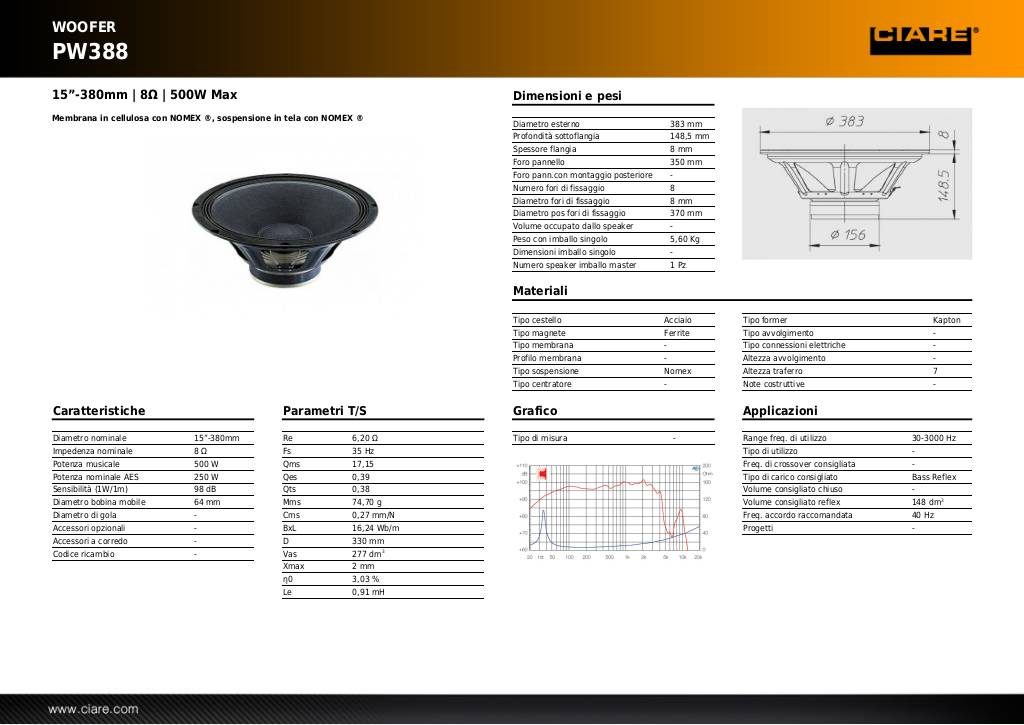

Scheda tecnica

20131105180441-pw388.pdf

1 Ciare PW388 woofer speaker 8 Ohm
Discontinued
