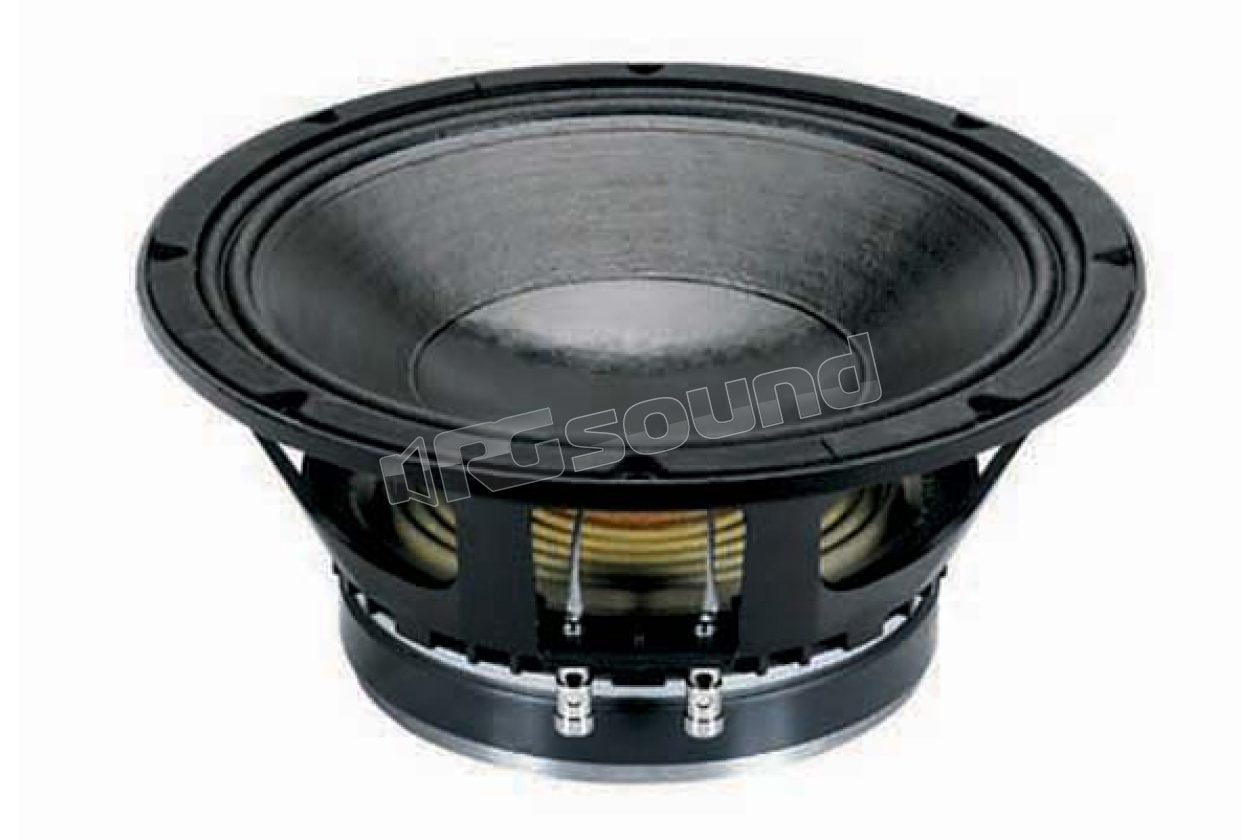

PW337 320mm woofer - Power 800W max

Ciare

Discontinued

Your price:
€ 192,10
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
320 mm
MAX Power
800 Watt
RMS Power
400 Watt
Frequency Response
45 - 2.000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
8,2 Kg
Installation Depth
133 mm
Voice Coil Diameter
75 mm

Ciare PW337 woofer 320mm with cellulose membrane and canvas suspension with NOMEX. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

PW337 Features

  • Max power: 800W
  • Nominal power: 400W
  • Nominal impedance: 8 Ω
  • Diameter: 320mm
  • Moving coil diameter: 75mm
  • Sensitivity 1W/1m: 96 dB
  • Frequency response 45-2,000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 28 dm3
  • Recommended tuning frequency: 62 Hz

PW337 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Nomex
  • Former type: Kapton
  • Air gap height: 10 mm

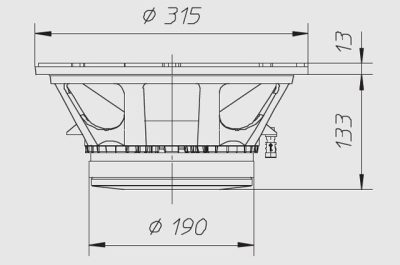

PW337 Dimensions

  • Outer diameter: 315 mm
  • Depth under flange: 133 mm
  • Flange thickness: 13 mm
  • Panel hole: 282 mm
  • Number of fixing holes: 8
  • Fixing hole diameter: 7 mm
  • Fixing hole position diameter: 295
  • Weight with single packaging: 8.20 Kg

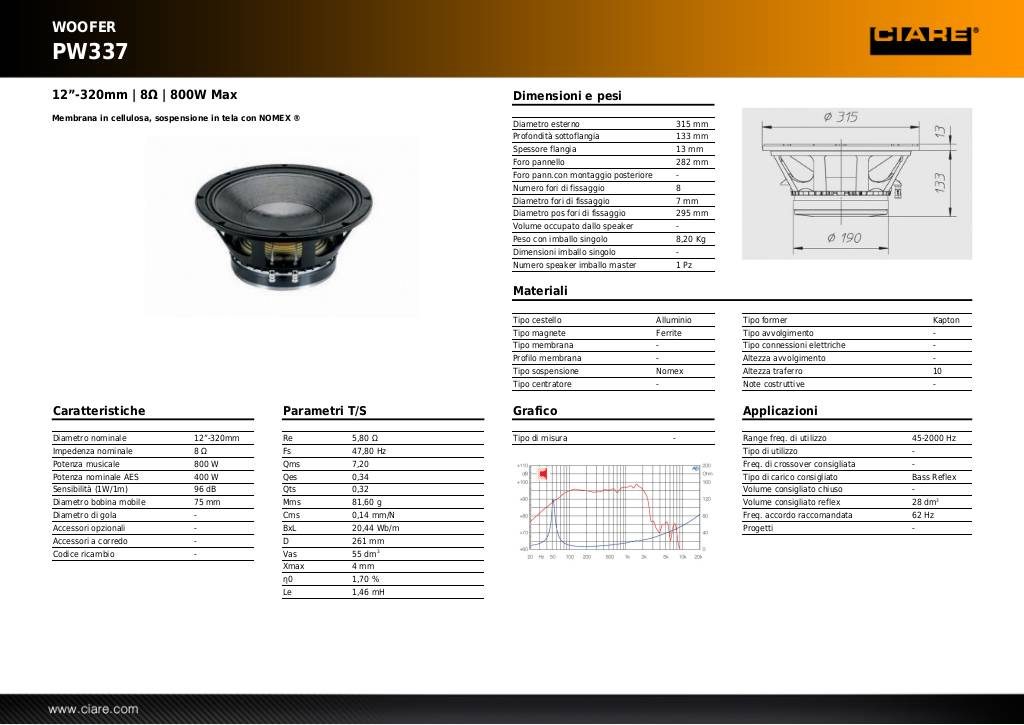

Scheda tecnica

20131105174634-pw337.pdf

1 Speaker 8 Ohm Ciare PW337 woofer
