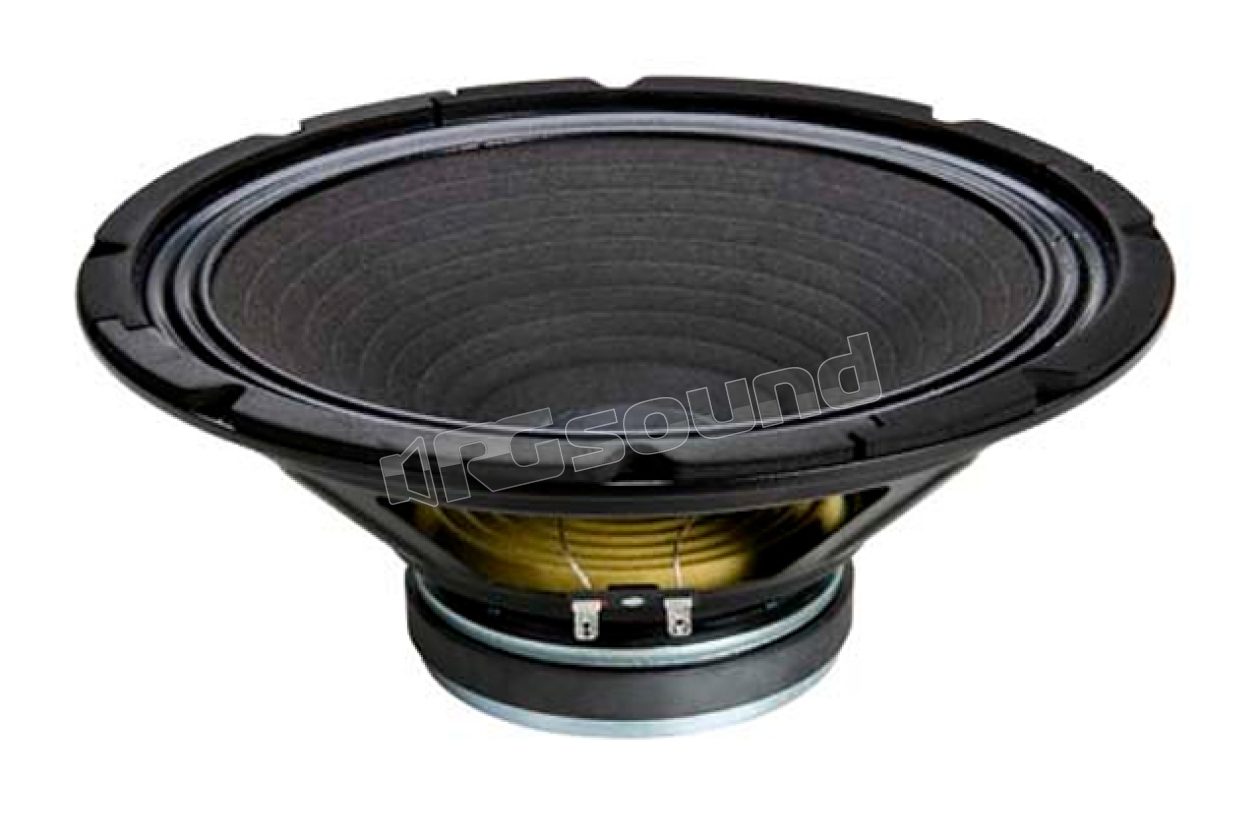

PW321 320mm midrange - 400W max power

Ciare

Discontinued

Your price:
€ 118,00
Price per single item (VAT included)
Type
Midrange
Speaker Size
320 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
45 - 5.000 Hertz
Sensitivity
99 dB
Impedance
8 Ohm
Weight
3,14 Kg
Installation Depth
120 mm
Voice Coil Diameter
38 mm

Ciare PW321 extended range 320mm with cellulose membrane and suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the production of every component.

PW321 Features

  • Max power: 200W
  • Nominal power: 100W
  • Nominal impedance: 8Ω
  • Diameter: 320mm
  • Voice coil diameter: 38mm
  • Sensitivity 1W/1m: 99 dB

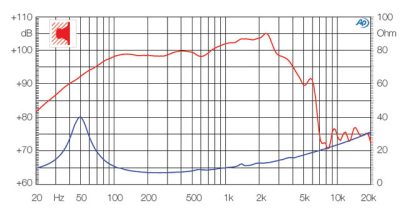

  • Frequency response 45-5,000 Hz
  • Recommended load type: Sealed enclosure
  • Recommended closed volume: 50 dm3

PW321 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Former type: Aluminum
  • Air gap height: 7 mm

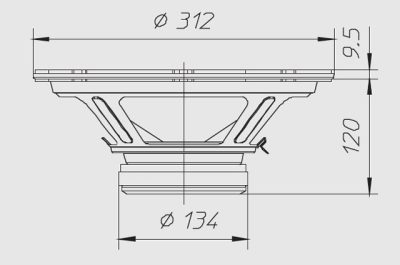

PW321 Dimensions

  • Outer diameter: 312 mm
  • Sub-flange depth: 120 mm
  • Flange thickness: 9.5 mm
  • Panel hole: 285 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 6 mm
  • Mounting hole position diameter: 296
  • Weight with individual packaging: 3.14 Kg

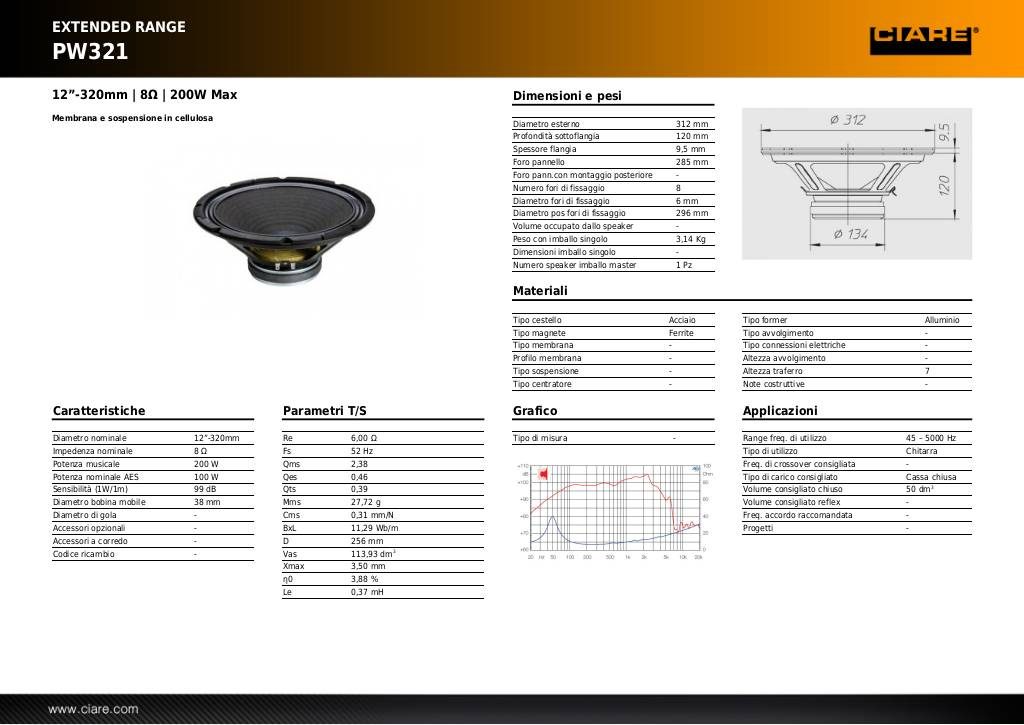

Scheda tecnica

20131105172605-pw321.pdf

1 Ciare PW321 extended range 8 Ohm speaker
Discontinued
