PW320 320mm woofer - 400W max power

Ciare

Discontinued

Your price:
€ 145,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
320 mm
MAX Power
400 Watt
RMS Power
150 Watt

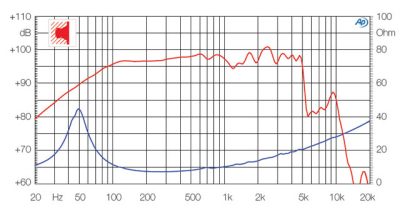

Frequency Response
40 - 4.000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
5,3 Kg
Installation Depth
120 mm
Voice Coil Diameter
50 mm

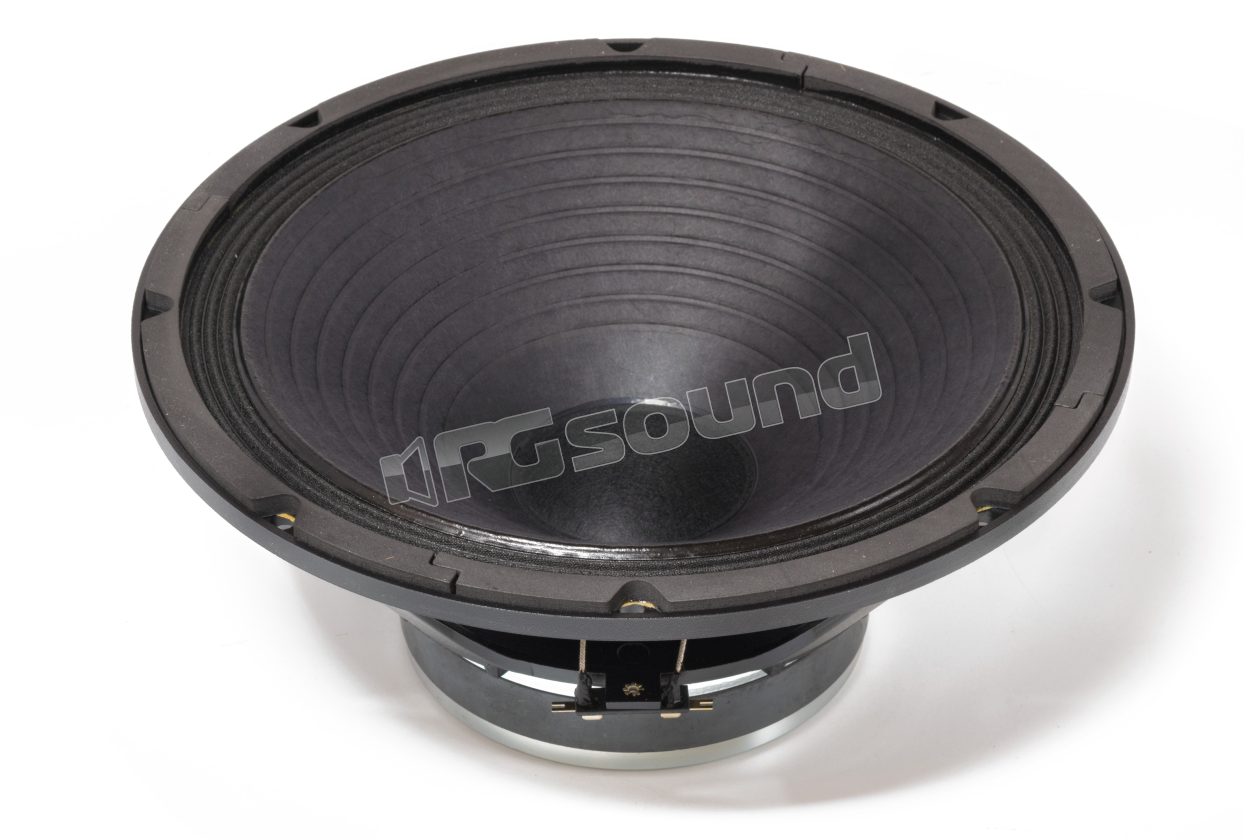

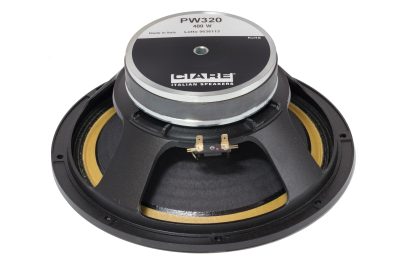

PW320 woofer with cellulose treated membrane, NOMEX cloth suspension.

Ciare is a company constantly up to date with technological innovations and under the continuous impulse of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

FEATURES

  • Max power: 400W
  • Rated power: 150W
  • Rated impedance: 8Ω
  • Diameter: 320mm
  • Voice coil diameter: 50mm
  • Sensitivity 1W/1m: 98 dB
  • Frequency response 40-4,000 Hz

MATERIALS

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Nomex
  • Former type: Aluminum
  • Air gap height: 8 mm

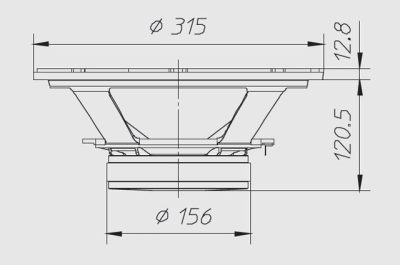

DIMENSIONS

  • Outer diameter: 315 mm
  • Depth below flange: 120.5 mm
  • Flange thickness: 12.8 mm
  • Panel hole: 282 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 7 mm
  • Mounting hole position diameter: 295
  • Weight with single packaging: 5.30 Kg

Recommended load type: Bass Reflex

Recommended reflex volume: 45 dm3

Recommended tuning frequency: 64 Hz

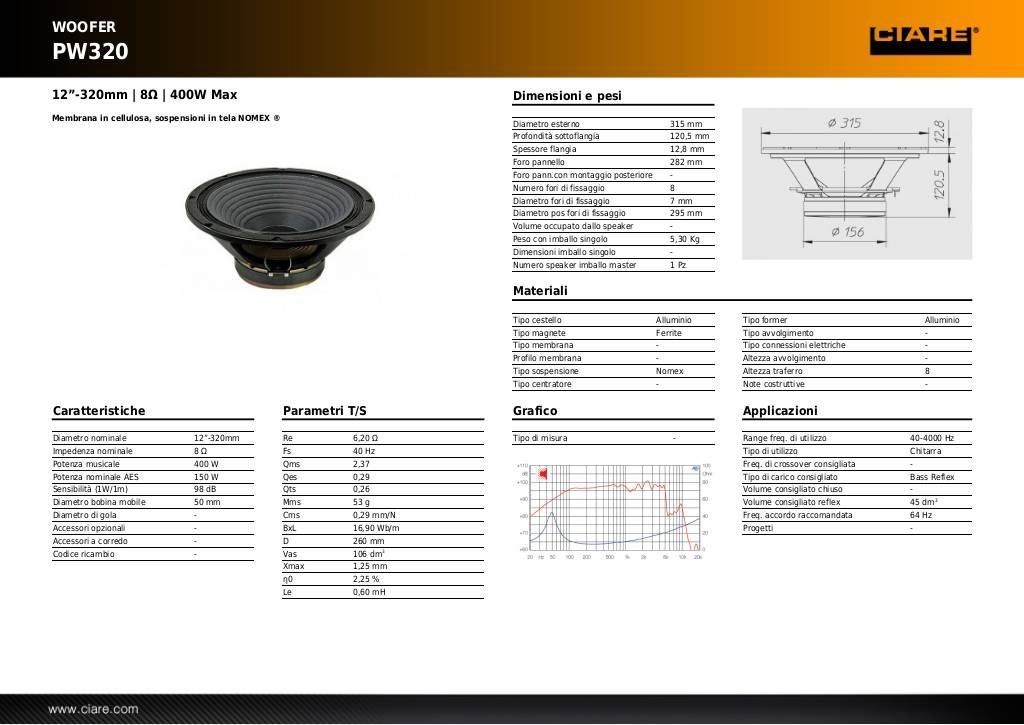

Scheda tecnica

20131105171413-pw320.pdf
