PW258ND 270mm Woofer - 600W max Power

Ciare

Discontinued

Your price:
€ 229,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
270 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
60 - 5.000 Hertz
Sensitivity
95.5 dB
Impedance
8 Ohm
Weight
4,5 Kg
Installation Depth
119 mm

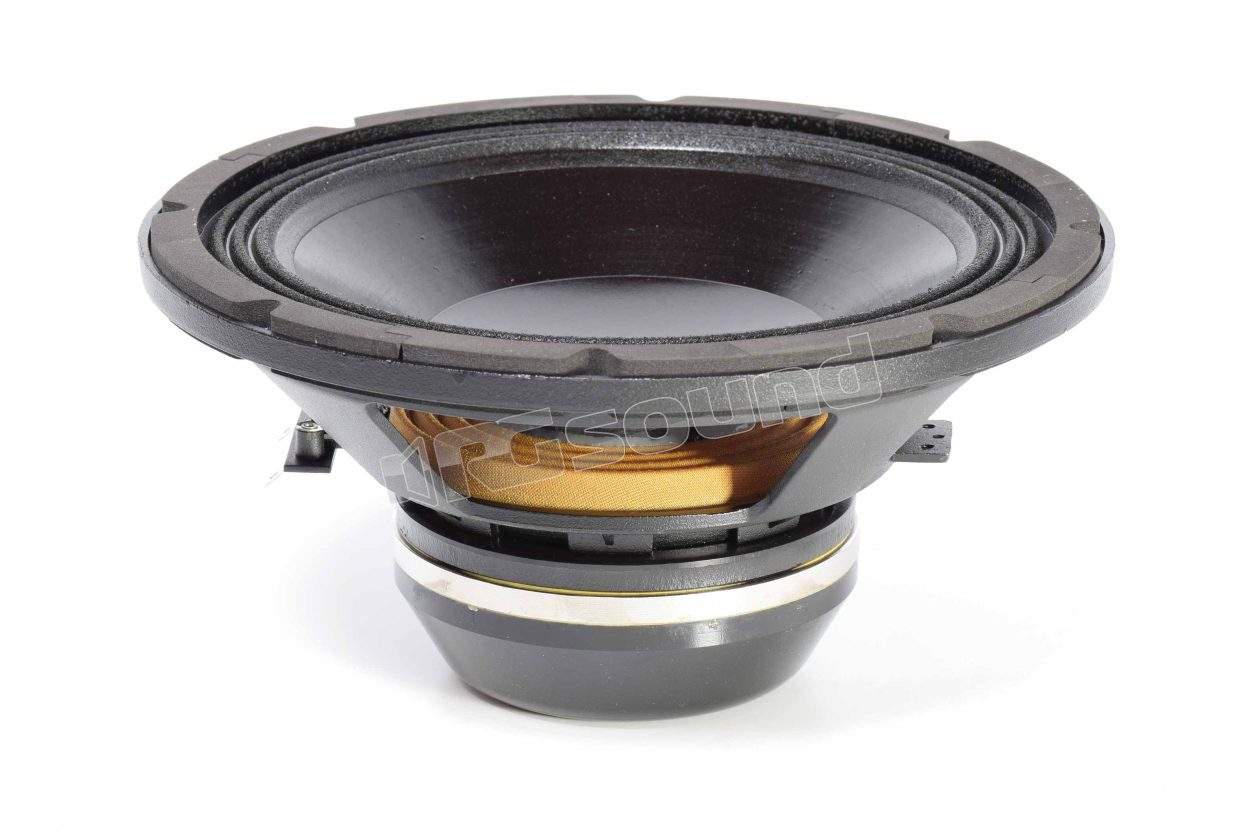

Ciare PW258ND 270mm woofer with treated cellulose membrane, NOMEX cloth suspension, fiberglass voice coil with aluminum wire, neodymium magnet.

Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product manufacturing, allowing the company to achieve the highest quality standards in the realization of every component.

PW258ND Features

  • Max power: 600W
  • Nominal power: 300W
  • Nominal impedance: 8 Ohm
  • Diameter: 270mm
  • Voice coil diameter: 75mm
  • Sensitivity 1W/1m: 95.5 dB
  • Frequency response 60-5,000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 18 dm3
  • Recommended tuning frequency: 76 Hz

PW258ND Materials

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Suspension type: Nomex
  • Former type: Fiberglass
  • Winding type: Aluminum sandwich
  • Air gap height: 10 mm

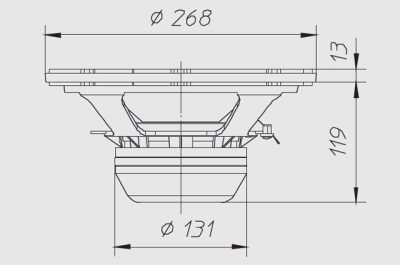

PW258ND Dimensions

  • Outer diameter: 268 mm
  • Sub-flange depth: 119 mm
  • Flange thickness: 13 mm
  • Panel hole: 235 mm
  • Number of mounting holes: 8
  • Mounting holes diameter: 5 mm
  • Mounting holes position diameter: 253
  • Weight with single package: 4.60 Kg

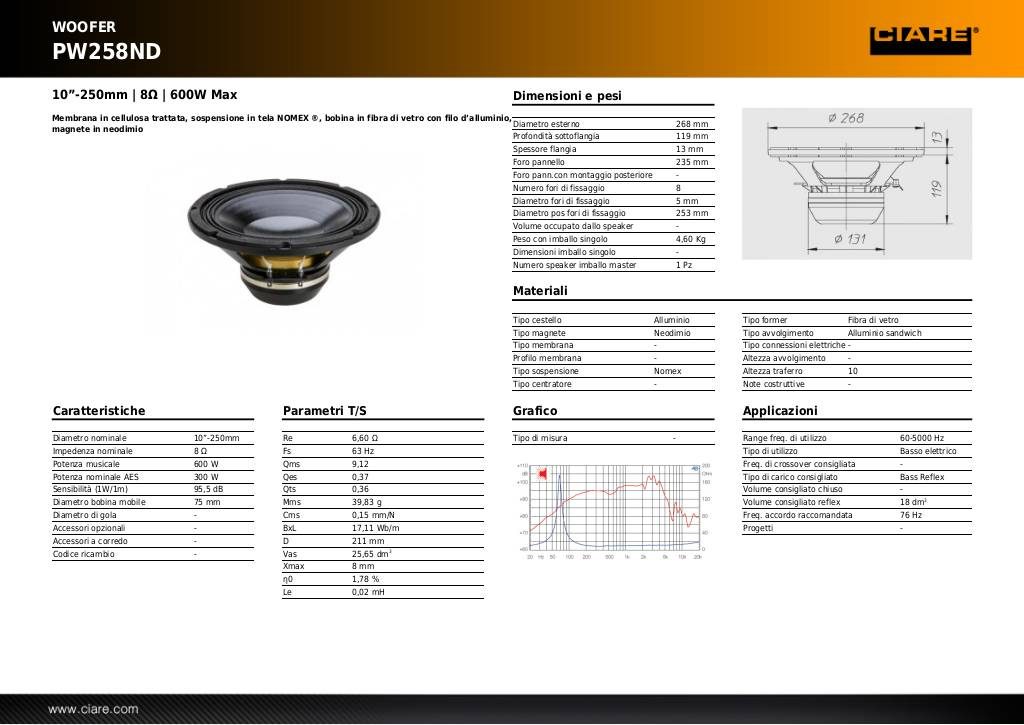

Scheda tecnica

20131105170434-pw258nd.pdf

1 8 Ohm speaker Ciare woofer PW258ND
