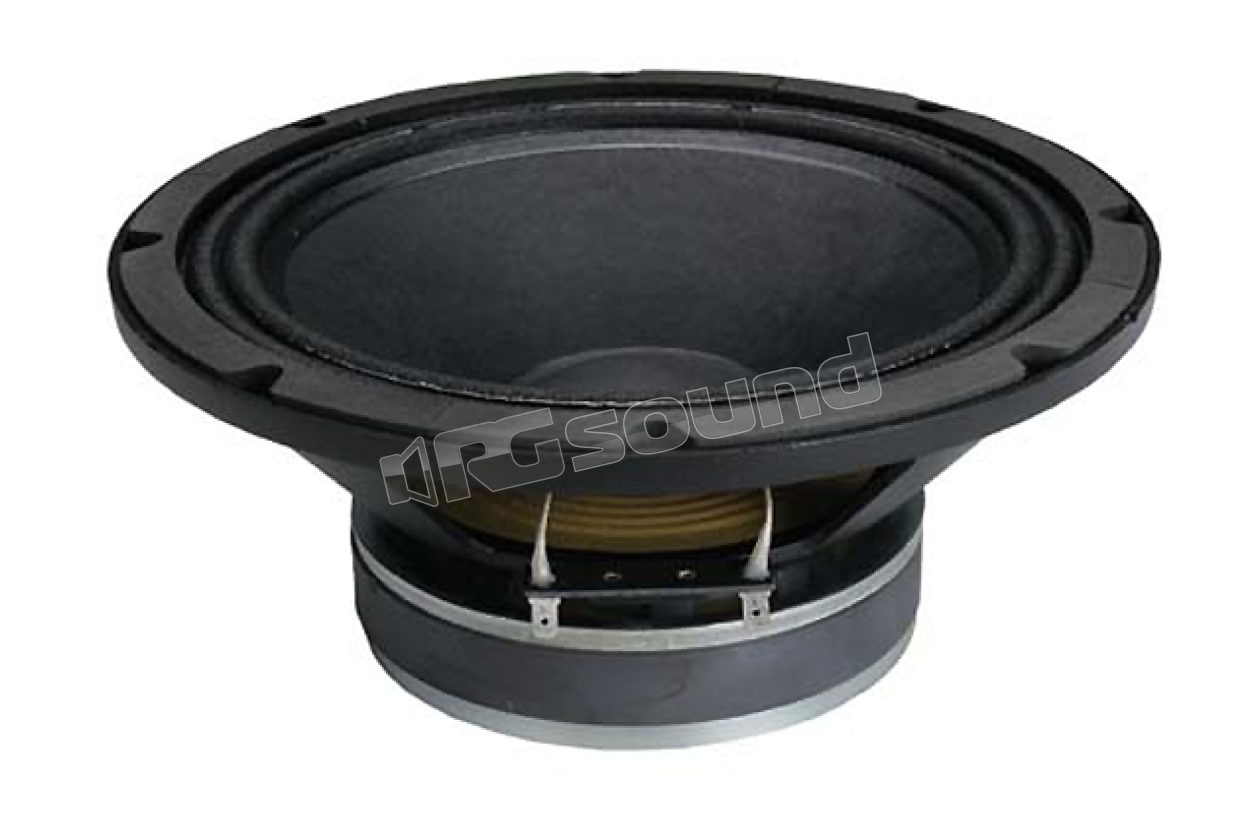

PW256 270mm woofer - 500W max power

Ciare

Discontinued

Your price:
€ 218,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
270 mm
MAX Power
500 Watt
RMS Power
250 Watt

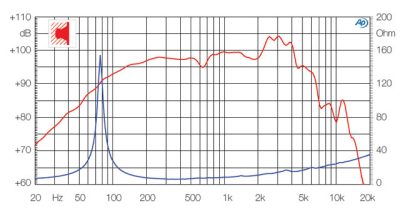

Frequency Response
70 - 4.000 Hertz
Sensitivity
100 dB
Impedance
8 Ohm
Weight
7,2 Kg
Installation Depth
103 mm
Voice Coil Diameter
64 mm

Ciare PW256 woofer 270mm with cellulose membrane, NOMEX ® fabric suspension, aluminum wire winding. Ciare is a company constantly keeping pace with technological innovations and under continuous pressure from market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization allows the company to achieve the highest quality standards in the realization of every component.

PW256 Features

  • Max power: 500W
  • Rated power: 250W
  • Nominal impedance: 8Ω
  • Diameter: 270mm
  • Voice coil diameter: 64mm
  • Sensitivity 1W/1m: 100 dB
  • Frequency response 70-4,000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 7 dm3
  • Recommended tuning frequency: 112 Hz

PW256 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Nomex
  • Former type: Kapton
  • Air gap height: 7 mm

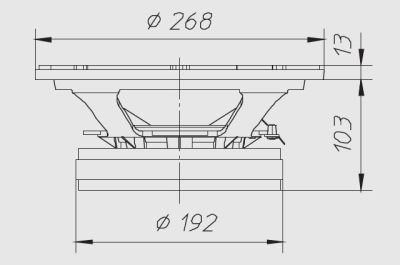

PW256 Dimensions

  • External diameter: 268 mm
  • Depth below flange: 103 mm
  • Flange thickness: 13 mm
  • Panel hole: 235 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 5 mm
  • Mounting holes position diameter: 253
  • Weight with single packaging: 7.20 Kg

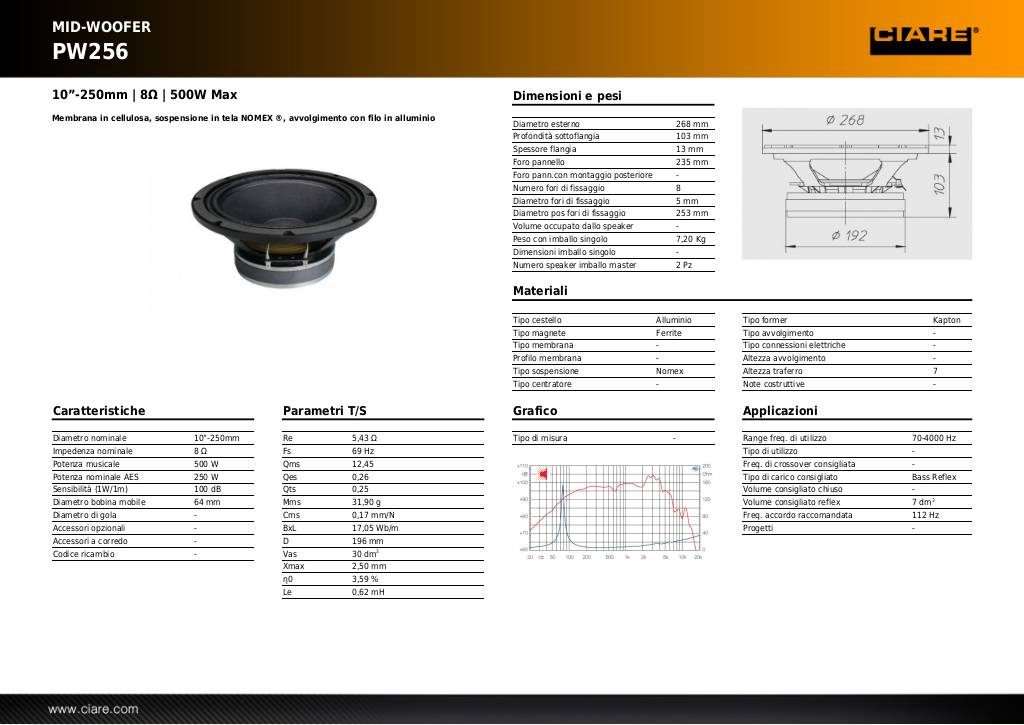

Scheda tecnica

20131105164215-pw256.pdf

1 8 Ohm loudspeaker Ciare woofer PW256
