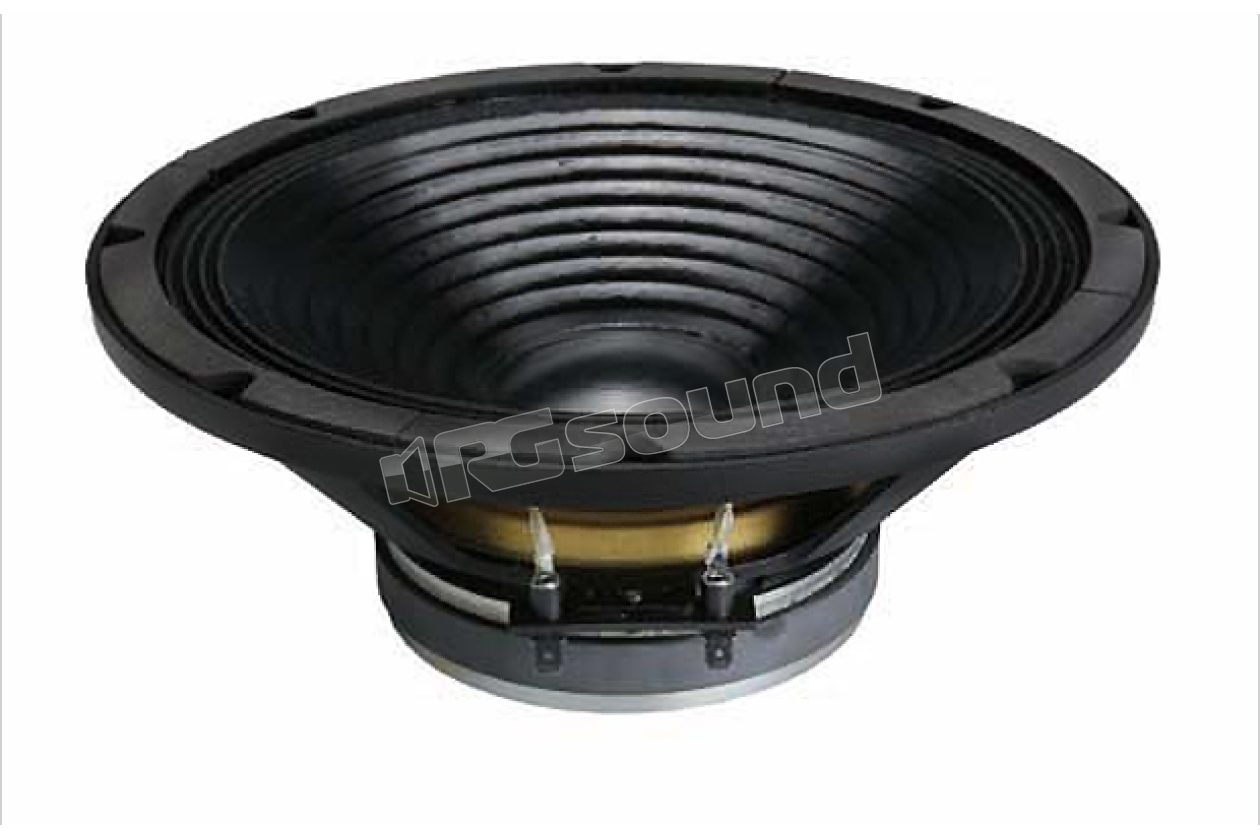

PW251 woofer 270mm - Power 300W max

Ciare

Discontinued

Your price:
€ 113,10
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
270 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
50 - 4.000 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
3,4 Kg
Installation Depth
96 mm
Voice Coil Diameter
50 mm

Ciare PW251 woofer 270mm with cellulose membrane and damped NOMEX ® fabric suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to completely independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

PW251 Features

  • Max power: 300W
  • Nominal power: 150W
  • Nominal impedance: 8Ω
  • Diameter: 270mm
  • Voice coil diameter: 50mm
  • Sensitivity 1W/1m: 97 dB

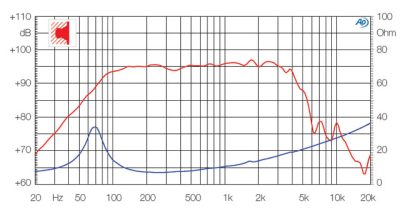

  • Frequency response 50-4.000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 30 dm3
  • Recommended tuning frequency: 72 Hz

PW251 Materials

  • Basket type: Aluminum
  • Magnet type: Ferrite
  • Suspension type: Nomex
  • Former type: Aluminum
  • Air gap height: 8 mm

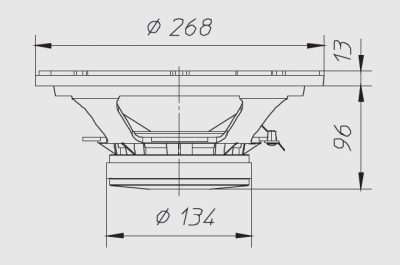

PW251 Dimensions

  • External diameter: 268 mm
  • Depth sub-flange: 96 mm
  • Flange thickness: 13 mm
  • Panel hole: 238 mm
  • Number of mounting holes: 8
  • Mounting hole diameter: 6 mm
  • Mounting hole position diameter: 253
  • Weight with single box: 3.40 Kg

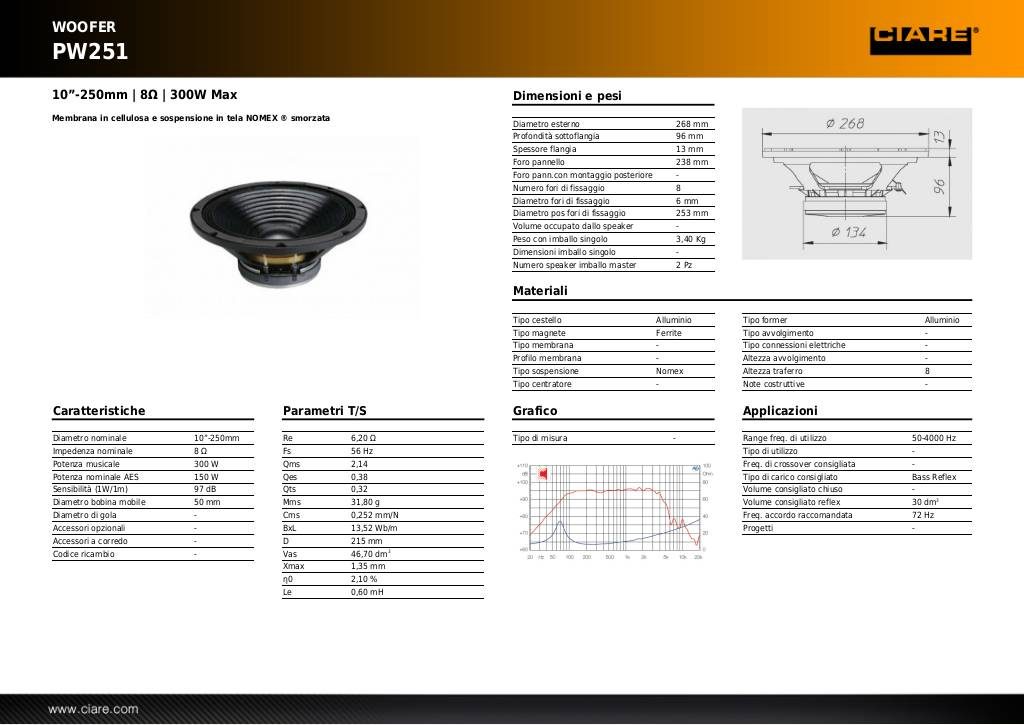

Scheda tecnica

20131105163140-pw251.pdf

1 8 Ohm speaker Ciare PW251 woofer
