PW205ND 200mm woofer - 400W max power

Ciare

Discontinued

Your price:
€ 181,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
60 - 3.000 Hertz
Sensitivity
96.5 dB
Impedance
8 Ohm
Weight
1,4 Kg
Installation Depth
85 mm
Voice Coil Diameter
50 mm

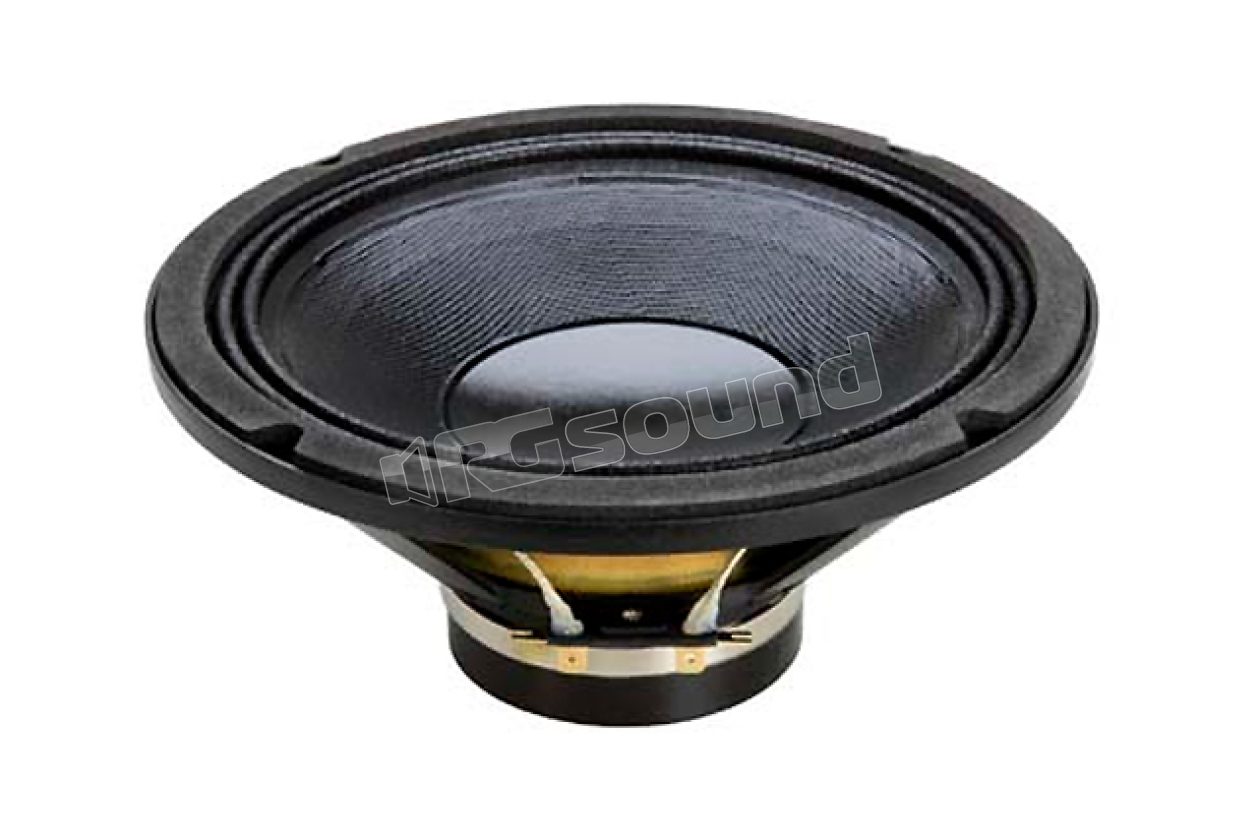

Ciare PW205ND 200mm woofer with cellulose treated cone, NOMEX ® cloth suspension, neodymium magnet.

Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

PW205ND Features

  • Max power: 400W
  • Nominal power: 200W
  • Nominal impedance: 8Ω
  • Diameter: 200mm
  • Voice coil diameter: 50mm
  • Sensitivity 1W/1m: 96.5 dB
  • Frequency response 60-3,000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 12 dm3
  • Recommended tuning frequency: 90 Hz

PW205ND Materials

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Suspension type: Nomex
  • Former type: Kapton
  • Winding type: Aluminum sandwich
  • Air gap height: 8 mm

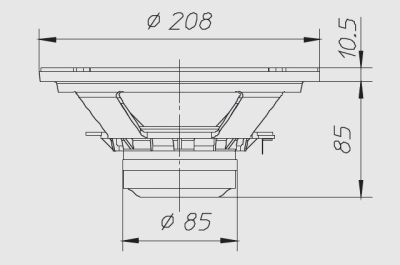

PW205ND Dimensions

  • Outer diameter: 208 mm
  • Sub-flange depth: 85 mm
  • Flange thickness: 10.5 mm
  • Panel hole: 184 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 194
  • Weight with single packaging: 1.41 Kg

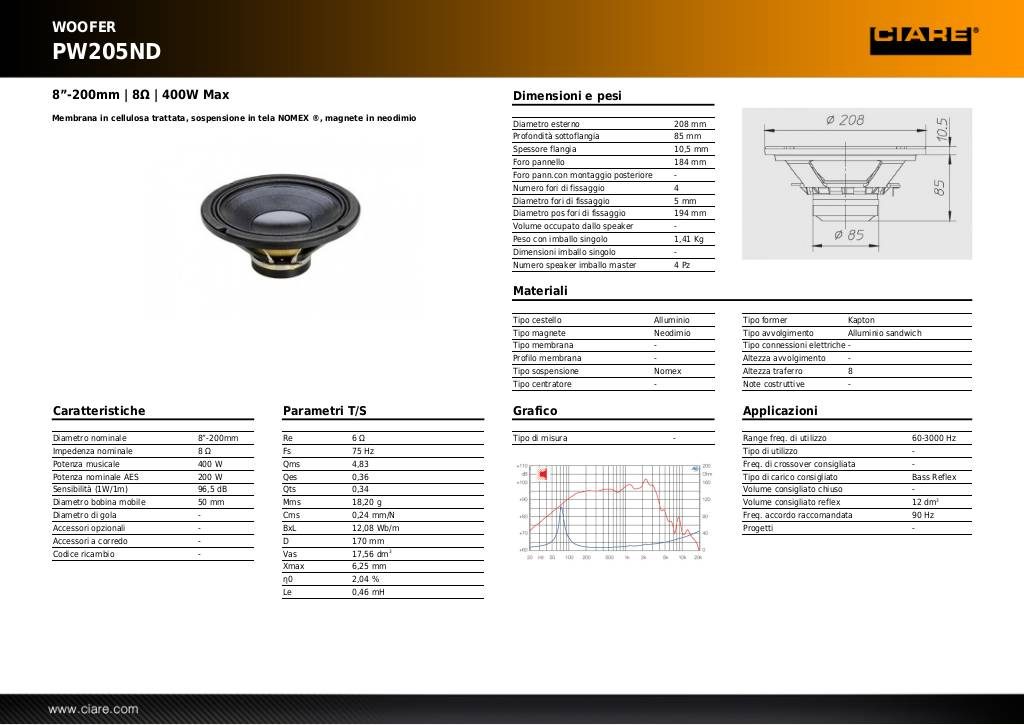

Scheda tecnica

20131105160322-pw205nd.pdf

1 8 Ohm speaker Ciare PW205ND woofer
