PW160ND 155mm woofer - 300W max power

Ciare

Discontinued

Your price:
€ 154,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
70 - 6.000 Hertz
Sensitivity
95 dB
Impedance
8 Ohm
Weight
1,2 Kg
Installation Depth
73,5 mm
Voice Coil Diameter
38 mm

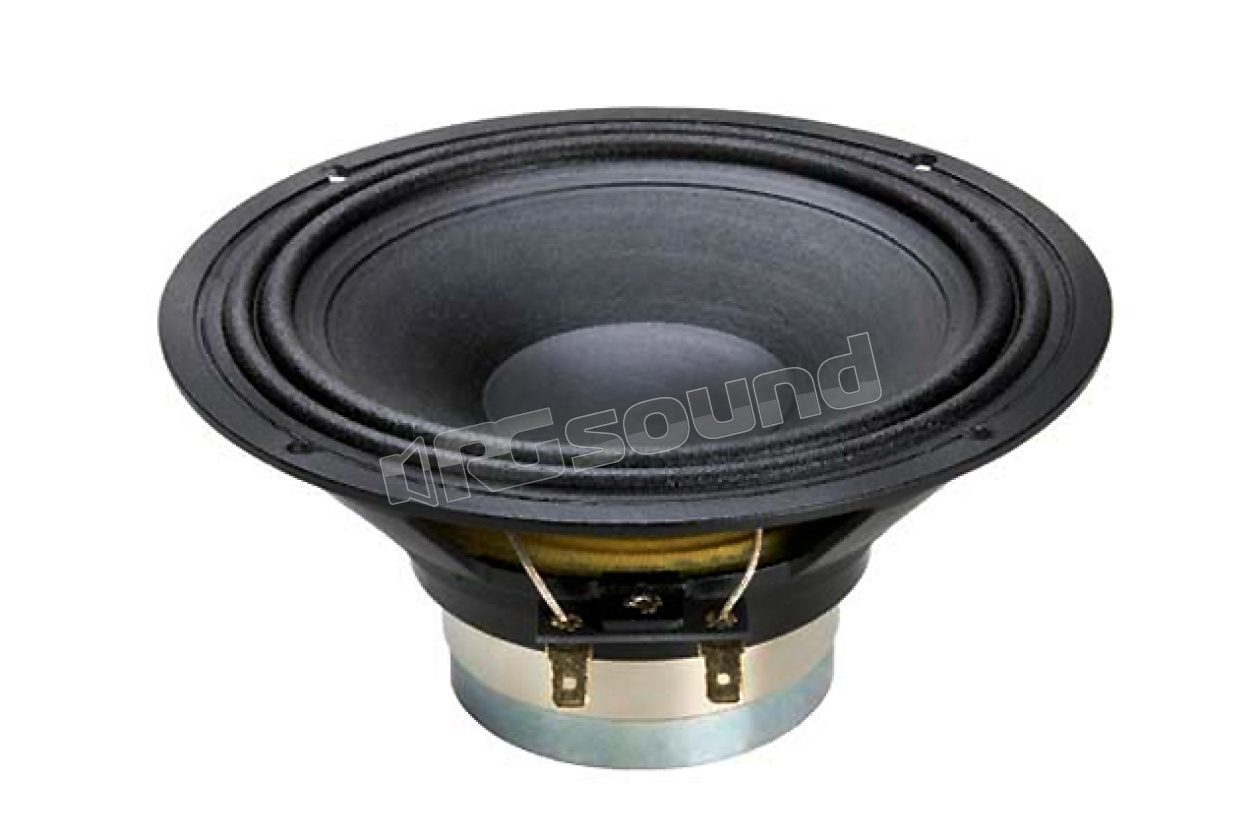

Ciare PW160ND 155mm woofer with cellulose treated membrane, treated cloth suspension, Neodymium magnet. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of each component.

PW160ND Features

  • Max power: 300W
  • Nominal power: 150W
  • Nominal impedance: 8Ω
  • Diameter: 165mm
  • Voice coil diameter: 38mm
  • Sensitivity 1W/1m: 95 dB

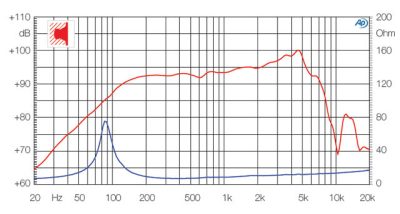

  • Frequency response 70-6.000 Hz
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 40 dm3
  • Recommended tuning frequency: 116 Hz

PW160ND Materials

  • Basket type: Aluminum
  • Magnet type: Neodymium
  • Suspension type: Treated cloth
  • Former type: Kapton
  • Air gap height: 8 mm

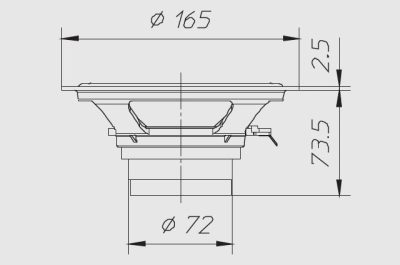

PW160ND Dimensions

  • Outer diameter: 165 mm
  • Depth sub-flange: 73.5 mm
  • Flange thickness: 2.5 mm
  • Panel hole: 147 mm
  • Number of mounting holes: 4
  • Mounting holes diameter: 5 mm
  • Mounting holes position diameter: 154
  • Weight with single package: 1.20 Kg

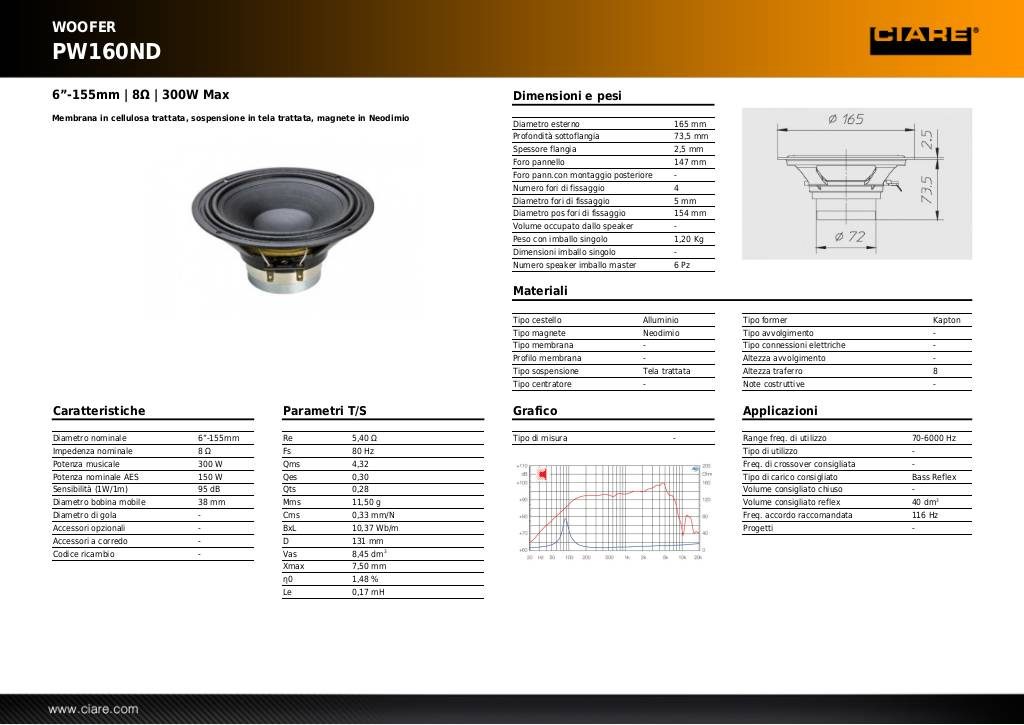

Scheda tecnica

20131105154942-pw160nd.pdf

1 Ciare PW160ND woofer 8 Ohm speaker
