PW 8 20cm subwoofer, 300 Watt RMS power

ETON
Your price:
€ 115,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
300 Watt
Sensitivity
81 dB
Impedance
2 + 2 Ohm
Weight
4,6 Kg
Installation Depth
131 mm
Woofer Material
Cellulosa trattata

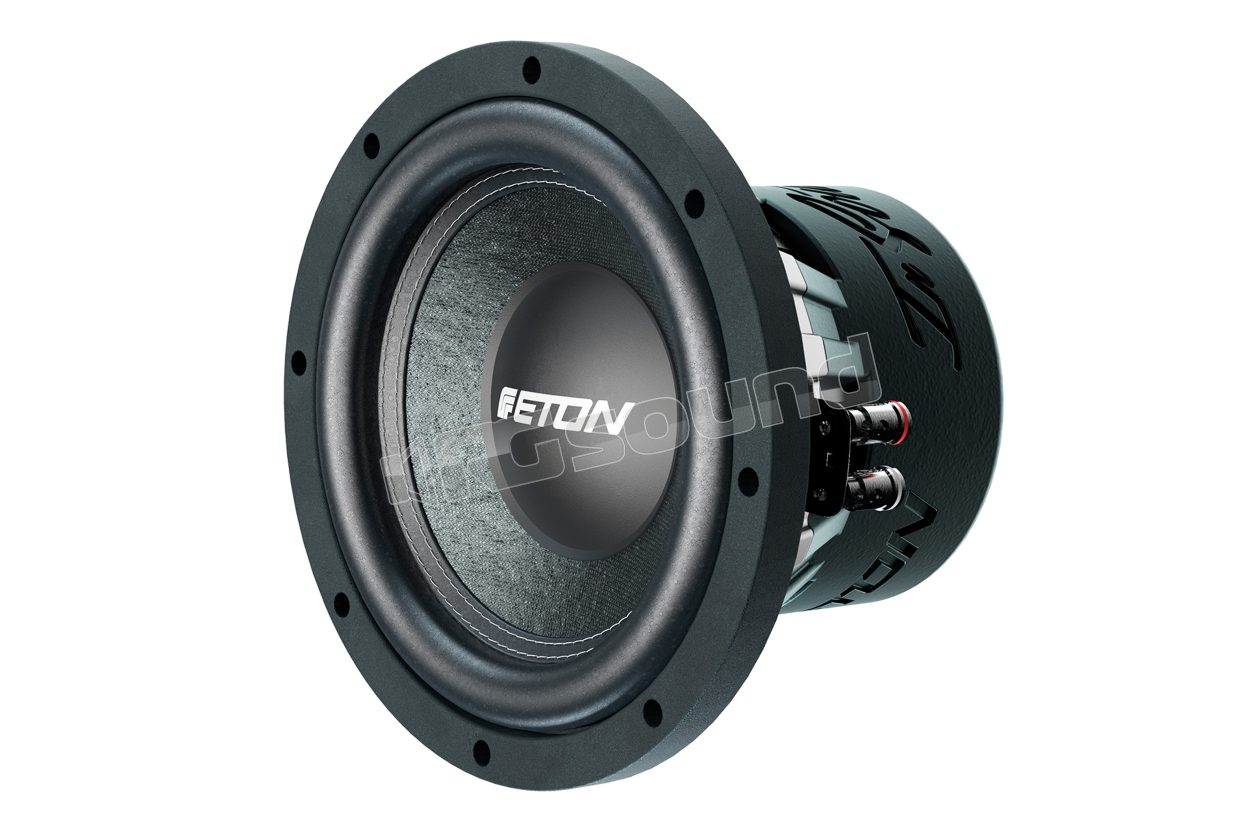

ETON PW8 subwoofer 200 mm (8 inch) with dust-painted metal basket and dual 50 mm aluminum voice coil.

Pressed and stiffened paper cone and long-excursion surround, impedance 2 x 2 Ohm, power handling 300/400 Watt. Designed for optimal ventilation, powerful ferrite magnet with silicone coating/protection, external diameter 216, installation depth 131 mm, sound pressure level 81.5 dB, weight 4.6 kg.

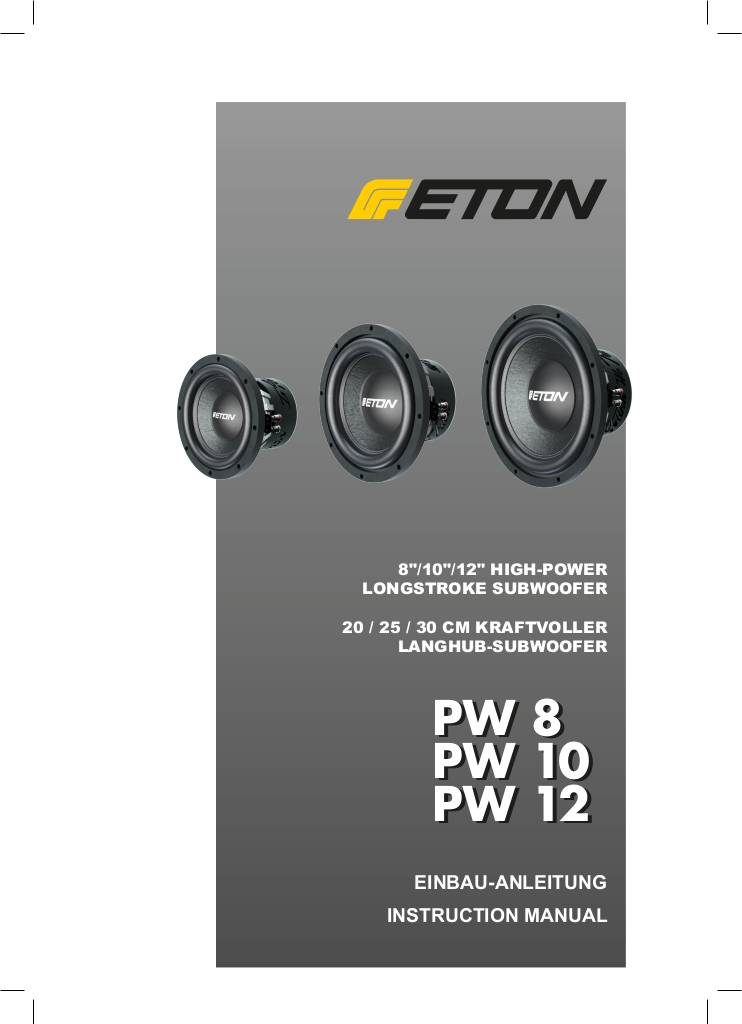

Manuale utente

n-20230203101346-pw8-pw10-pw12-single-chassis-20201020.pdf

Technical specifications of the ETON PW8 subwoofer

Nominal impedance (Ohm) 2 x 2 Ohm
DC resistance Re 3.8 Ohm
Resonance frequency fs 1W / TSP (Hz) 37.0
Q QTS 0.514
Q QES 0.564
Q QMS 5.843
Equivalent air volume of suspension VAS (dm3) 8.998
Force factor BL x l (Tm) 13.560
Suspension compliance CMS (mm/N) 0.175
Total moving mass MMS (g) 105
Voice coil diameter 50 mm
Mobile voice coil inductance Le (mH) @ 10 kHz 1.640
Effective piston surface SD (cm2) 190
SPL (dB) *at 1 W / 1 m 81.0
Nominal power / music power (W) 300/400 W

€ 115,00 Price incl. VAT
