PW 10 ETON PW10 250 mm (10 inch) subwoofer

ETON
Your price:
€ 149,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Sensitivity
84 dB
Impedance
2 + 2 Ohm
Weight
6 Kg
Installation Depth
135 mm
Woofer Material
Cellulosa trattata

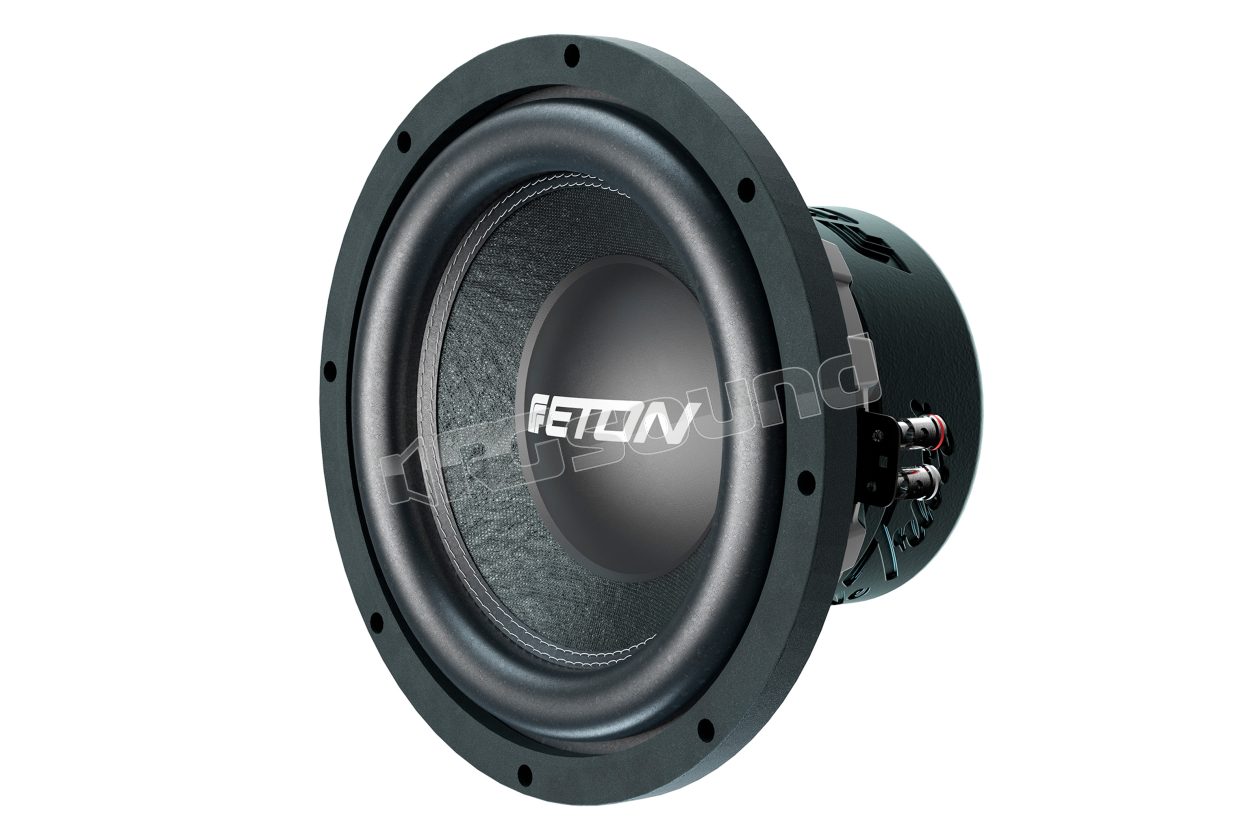

ETON PW10 250 mm (10 inch) subwoofer

Subwoofer with powder-coated metal frame, dual 64 mm aluminum voice coil, pressed and reinforced paper cone, long-excursion surround. Impedance 2 x 2 ohm, power 500 W RMS / 1000 W max. Optimal ventilation, powerful ferrite magnet with silicone coating/protection, dimensions 278 x 135 mm (LxH), 84 dB, weight 6.0 kg.

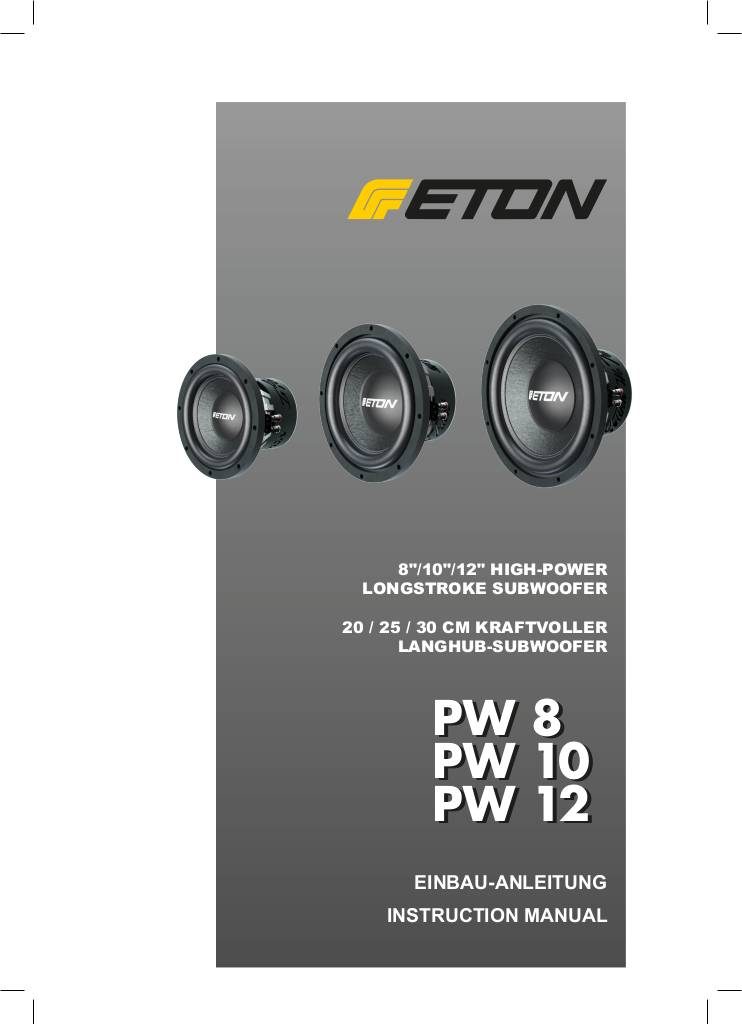

Manuale utente

n-20230206142931-pw8-pw10-pw12-single-chassis-20201020.pdf

ETON PW10 technical specifications

  • Nominal impedance Zn (Ohm) 2 x 2 Ohm
  • DC resistance Re 3.8 Ohm
  • Resonance frequency fs 1W / TSP (Hz) 33.6
  • Q QTS 0.510
  • Q QES 0.560
  • Q QMS 5.753
  • Equivalent air volume of suspension VAS (dm3) 20.330
  • Force factor BL x l (Tm) 15.720
  • Suspension compliance CMS (mm/N) 0.151
  • Total moving mass MMS (g) 148
  • Voice coil diameter 60
  • Voice coil inductance Le (mH) @ 10 kHz 1.844
  • Effective piston surface SD (cm2) 308
  • SPL (dB) *at 1 W / 1 m 84.5
  • Rated power / musical power (W) 500/1000 W
