PU340 Compression driver, titanium diaphragm

Ciare

Discontinued

Your price:
€ 75,00
Price per single item (VAT included)
Type
Tweeter
Speaker Size
Other sizes
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
2.500 - 20.000 Hertz
Sensitivity
102 dB
Impedance
8 Ohm
Weight
1,1 Kg
Installation Depth
53,5 mm
Voice Coil Diameter
34 mm

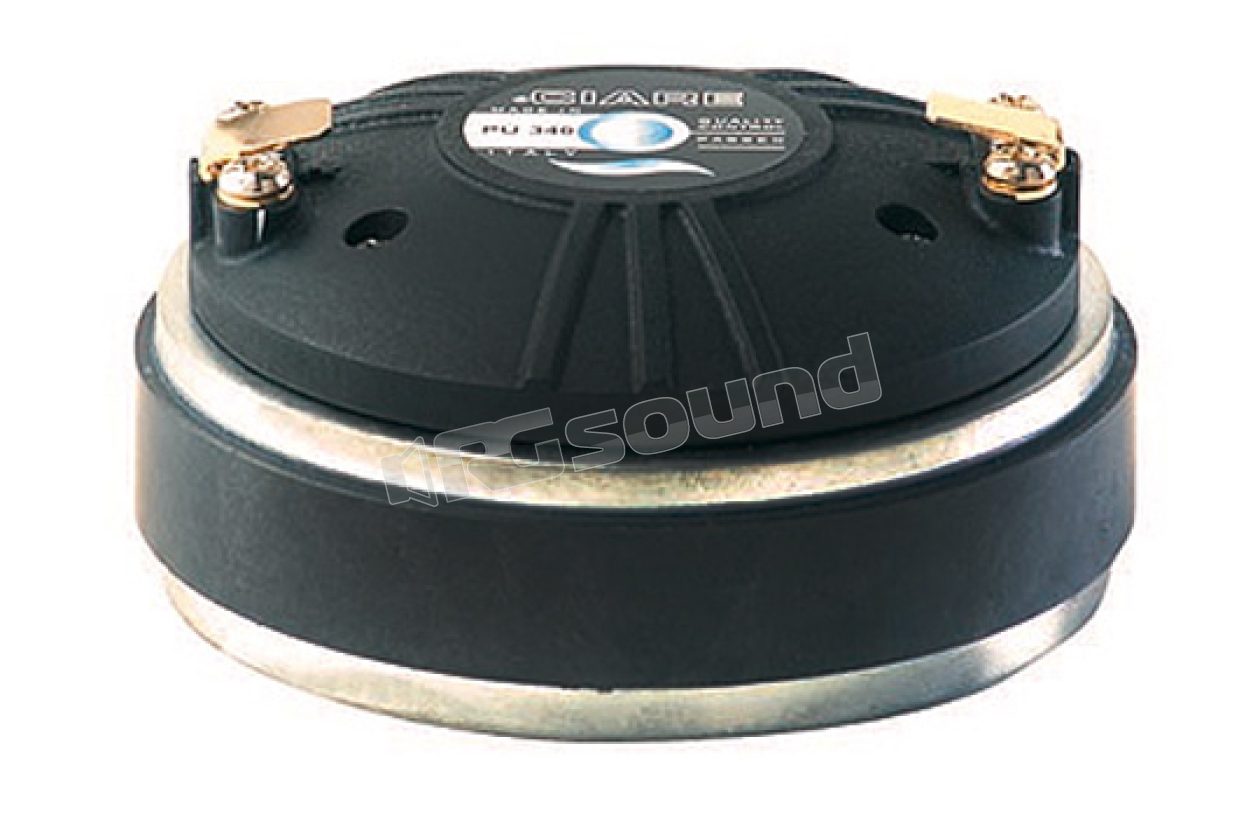

Ciare PU340 compression driver, titanium diaphragm. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to completely autonomously manage all phases of product realization, allow the company to achieve the highest quality standards in the realization of every component.

PU340 Features

  • Max power: 200W
  • Nominal power: 100W
  • Nominal impedance: 8Ω
  • Diameter: 90mm
  • Voice coil diameter: 34mm
  • Sensitivity 1W/1m: 102 dB

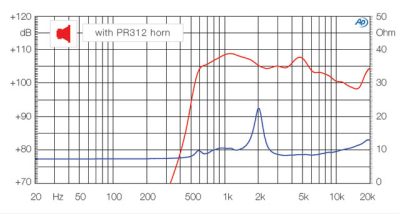

  • Frequency response 2,500-20,000 Hz
  • Throat diameter: 1mm
  • Recommended crossover frequency: 3000 Hz

PU340 Materials

  • Former type: Kapton

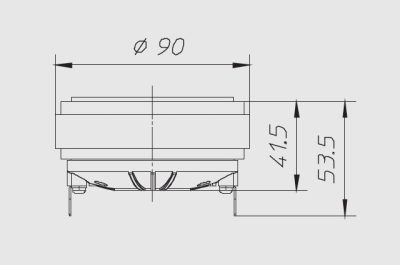

PU340 Dimensions

  • External diameter: 90 mm
  • Depth sub-flange: 53.5 mm
  • Number of mounting holes: 3
  • Mounting hole diameter: 6 mm
  • Diameter pos. mounting holes: 57
  • Weight with single package: 1.10 Kg

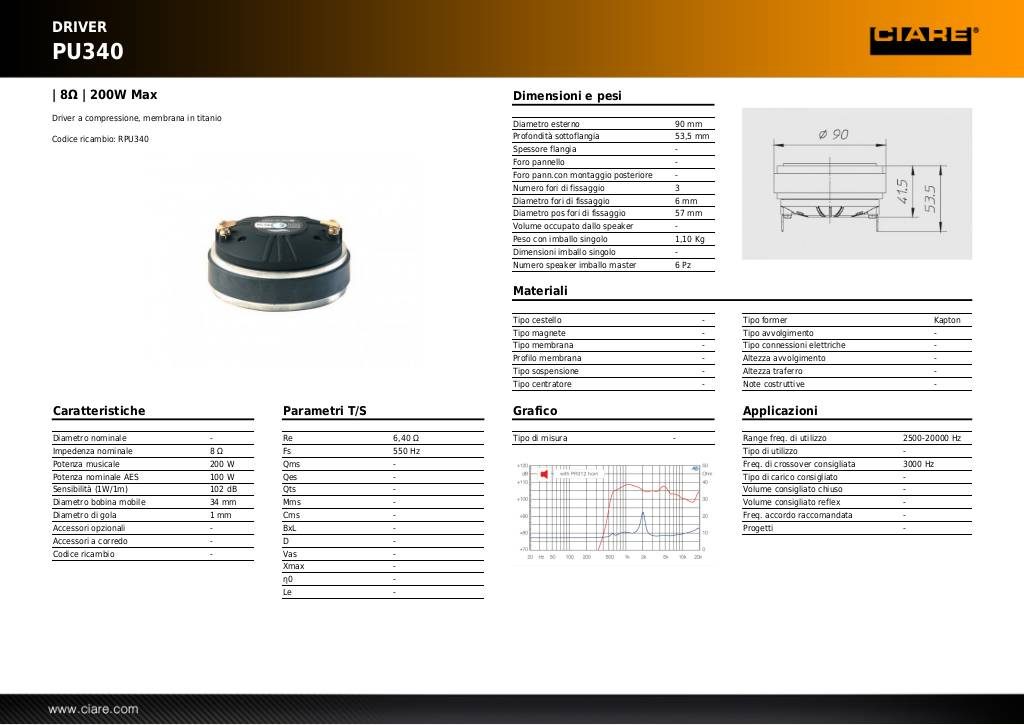

Scheda tecnica

20131105153621-pu340.pdf

1 8 Ohm speaker Ciare PU340 tweeter
