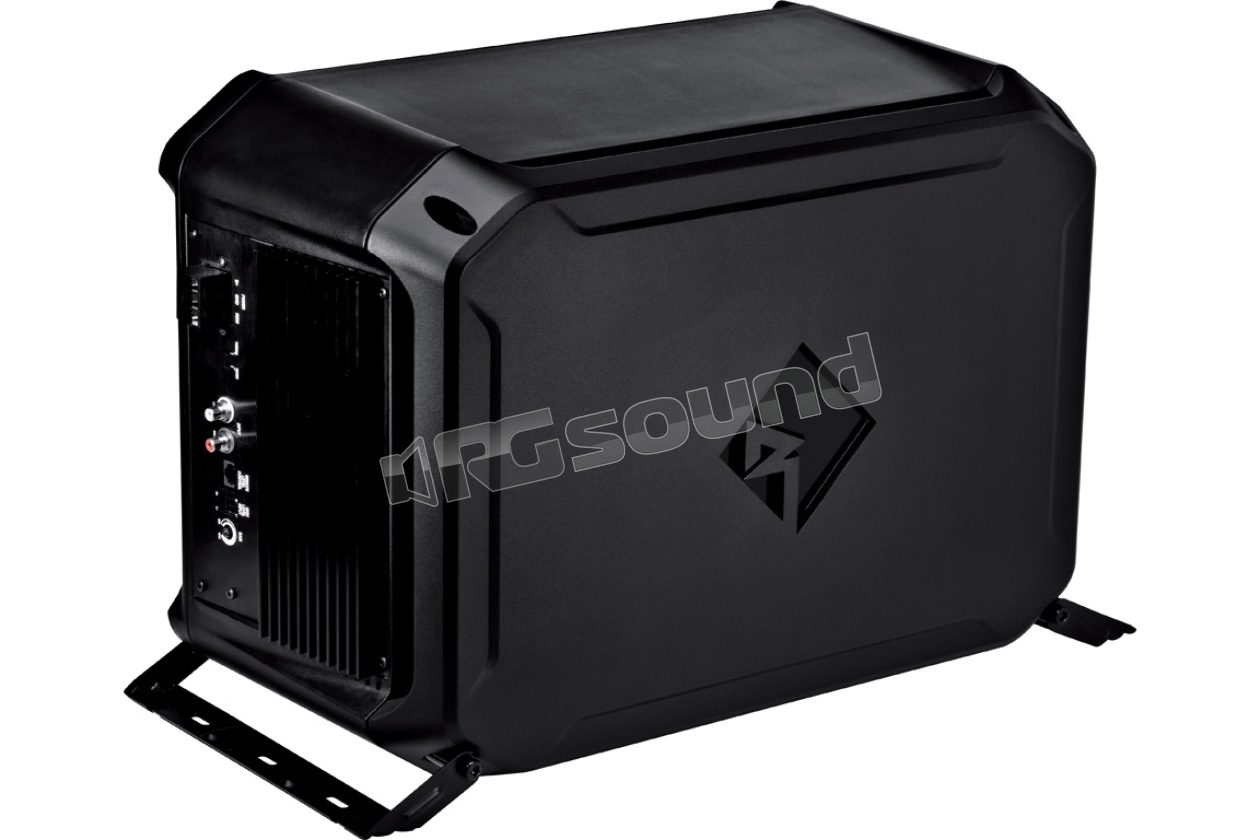

PS300-12 Punch Overload Series

Rockford Fosgate

Discontinued

Your price:
€ 725,00
Price per single item (VAT included)
Type
Powered subwoofer
Speaker Size
300 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
20 - 250 Hertz
Sensitivity
89 dB
Impedance
4 Ohm
Weight
19,45 Kg
Enclosure Size
279 x 539 x 387 mm
Enclosure Type
Reflex Enclosure

ROCKFORD FOSGATE PUNCH Bass Reflex Enclosure PS300-12

  • Power: 300 RMS / 600 Max Watts
  • Speaker Size: 30 cm
  • Enclosure Size 54 x 28.5 x 39
  • Sensitivity 89 dB
  • Impedance 4 Ohm

PS300-12: Rockford's first powered subwoofer enclosure.

Construction and performance worthy of the long list of subwoofers from the American company, with the advantage of a dedicated working volume and amplifier.

PS300-12, where the acronym indicates the power of the integrated electronics and the diameter in inches of the speaker used: respectively, therefore, 300 watts for a 30 centimeter speaker. A product with particular construction care that reflects all of Rockford's quality parameters.

Starting with the enclosure itself which is not a classic square parallelepiped in MDF, but is made of ABS with a particular shape and with a robustness that makes it practically indestructible. In front of the woofer a panel has been applied that has at least three roles: it is a highly effective mechanical protection system for the speaker, it functions as a fixed and well-defined acoustic load unaffected by positioning and creates a true low-pass filter.

A structure that allows you to install the subwoofer both horizontally and vertically, without having to worry about the inclination of the speaker relative to the cabin. To further intervene on the frequency response it is possible to connect to the PS300-12 the PEQ equalizer available as an option. What is instead integrated is the 300 watt amplifier: not a small power module as similar solutions often provide, but a true Class A/B final amplifier "made in Rockford" with P.O.W.E.R technology (Power Output Without Excessive Regulation).

High and low level inputs are present to be able to use the system both directly with the line outputs and those of the speakers of the factory sources. Available exclusively in black.

Rockford Fosgate was founded by Jim Fosgate in 1973 with the idea of creating a dedicated amplifier for low impedances. The technical innovations developed during the creation of amplifiers were also used in the creation of exclusive speakers optimized for perfect acoustics. Thanks to these important innovations, the Rockford company established itself throughout the World, starting its global expansion.

Today Rockford Fosgate represents one of the most well-known brands in the Hi-fi sector (car and marine) and is a guarantee of decidedly high quality standards. RGsound is the official retailer for Italy, every product branded Rockford Fosgate purchased on the RGsound.it website enjoys a two-year Italian warranty from the moment of purchase.

PS300-12 Specifications

Woofer Size: 12"
Woofer Series: Proprietary
Power Handling: 300 Watts RMS
System Configuration: Vented
Enclosure Material: ABS Plastic
Speaker Connector:
Frequency Response: 20Hz - 250Hz
Integrated Amplifier: 300 Watts RMS
Crossover Controls: Low-Pass: Fixed 6dB/octave Butterworth
Infrasonic: Fixed 12dB/octave Butterworth
Tone Controls: Punch Bass
Signal Input: Low-Level: 2-channel RCA
High-Level: 2-channel speaker line
Power Input Connector: Compression terminal
Power Wire Gauge: 8 AWG
Heat Sink Type: Extruded
Cooling: Convection
Remote Control: PEQ (optional)
Works as remote level control since EQ is already optimized
Visual Indicators: Power (blue LED)
Protect (red LED)
Circuit Topology Class: Class A/B
Shipping Weight: 42.9 Lbs.
(19.45 Kg.)
Dimensions: H 11" x W 21.25" x D 15.25"
27.94cm x 53.97cm x 38.73cm

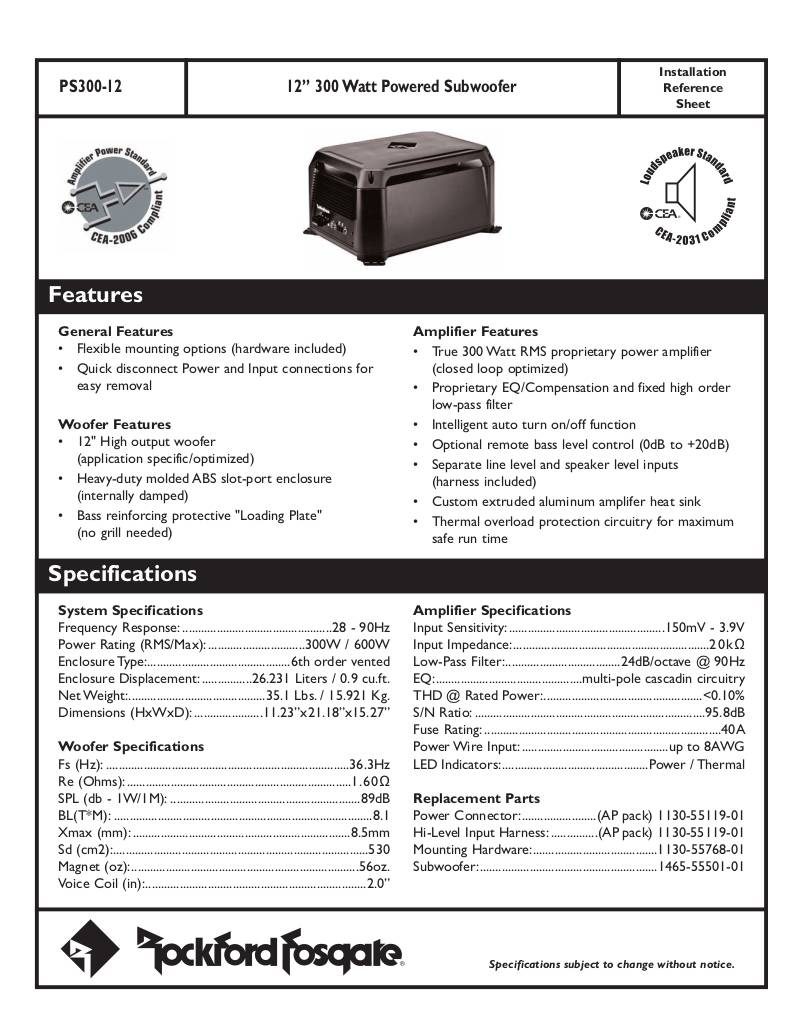

Scheda tecnica

20130529150455-1230-55114-01-rf-poweredsub-man.pdf
