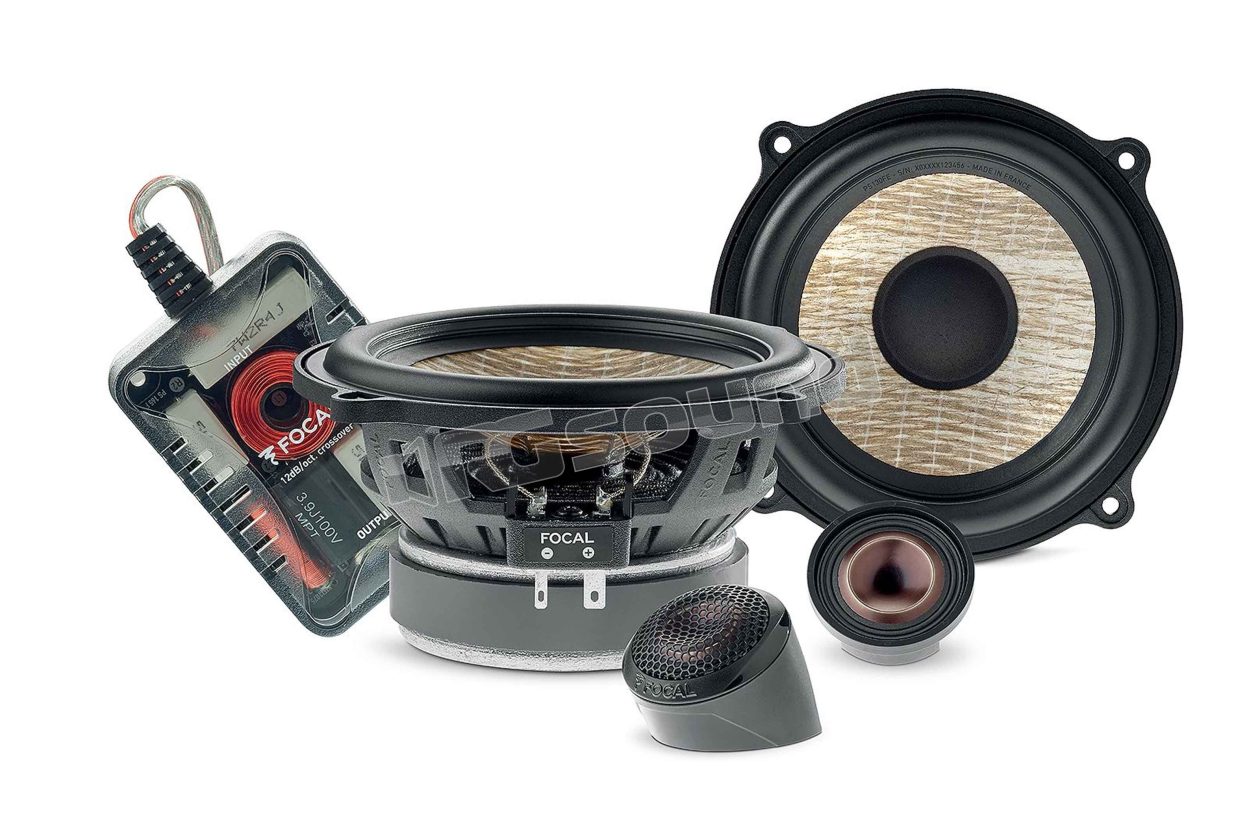

PS 130 FE Two-way speaker system with 13cm woofer

Focal

Discontinued

Your price:
€ 260,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
75 - 28.000 Hertz
Woofer Size
130 mm
Tweeter Size
52 millimetri
MAX Power
120 Watt
RMS Power
60 Watt
Sensitivity
90,5 dB
Impedance
4 Ohm
Woofer Material
Cono in lino
Tweeter Material
Cupola ribaltata

Focal PS130FE Two-way speaker system with 13cm woofer

Equipped with a flax cone, the woofers of the PS 130 FE kit offer very dynamic and natural sound. Furthermore, the TMD surround (Tuned Mass Damper) they incorporate stabilizes the surround to achieve better control and greater neutrality and linearity. The TAM tweeters with inverted dome and "M" profile included in the kit offer a wider dispersion angle and greater sound definition, without directionality.

Thanks to their angled mounting, they are easy to install in the vehicle. A compact audiophile crossover with pre-wired connections completes this kit. Finally, with its engraved aluminum frame and meticulous finishes, PS 130 FE combines style, discretion and modernity for a premium system.

What is TMD technology

Applied to the speaker driver, the solution simply consists of two tubular rings on the suspension whose dimensions and position have been carefully determined. They form the Tuned Mass Damper (TMD) and stabilize the dynamic behavior of the surround based on resonance, thus avoiding cone deformation without compromising dynamics. This innovation is patented.

PS130FE Features

  • Unique and patented flax cone
  • Butyl surround with exclusive "TMD" profile
  • TAM tweeter with inverted dome and "M" profile Al / Mg
  • Manufactured in France in Focal laboratories
  • High sensitivity
  • Wider dispersion angle
  • Natural and precise sound
  • Easy installation

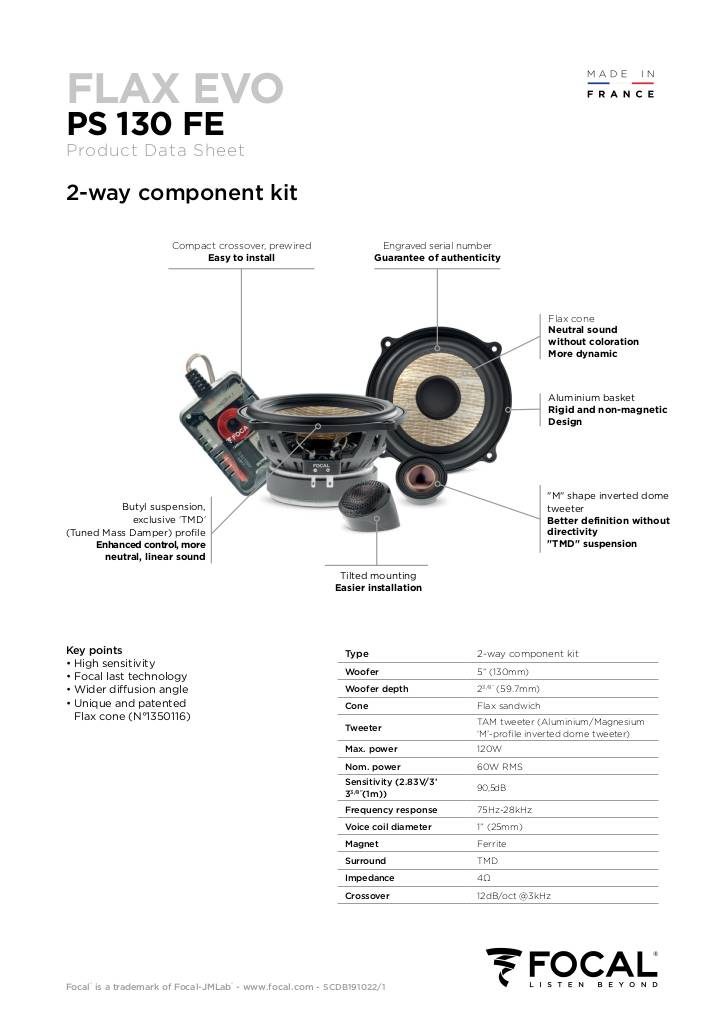

Scheda tecnica

n-20200302171122-fp-ps130fe-gb.pdf

Focal PS130FE Technical Specifications

  • 2-way component kit
  • 5" woofer (130 mm)
  • Woofer depth 2 3/8" (59.7 mm)
  • Sandwich Flax Cone woofer
  • M Tweeter (tweeter with inverted dome and "M" profile in aluminum / magnesium)
  • Max. power 120W
  • Nom. power 60 W RMS
  • Sensitivity (2.83 V / 1 m) 90.5 dB
  • Frequency response 75 Hz-28 kHz
  • Coil diameter 1" (25 mm)
  • Ferrite magnet
  • TMD surround
  • Impedance 4Ω
  • Crossover 12dB / oct @ 3kHz
Discontinued
