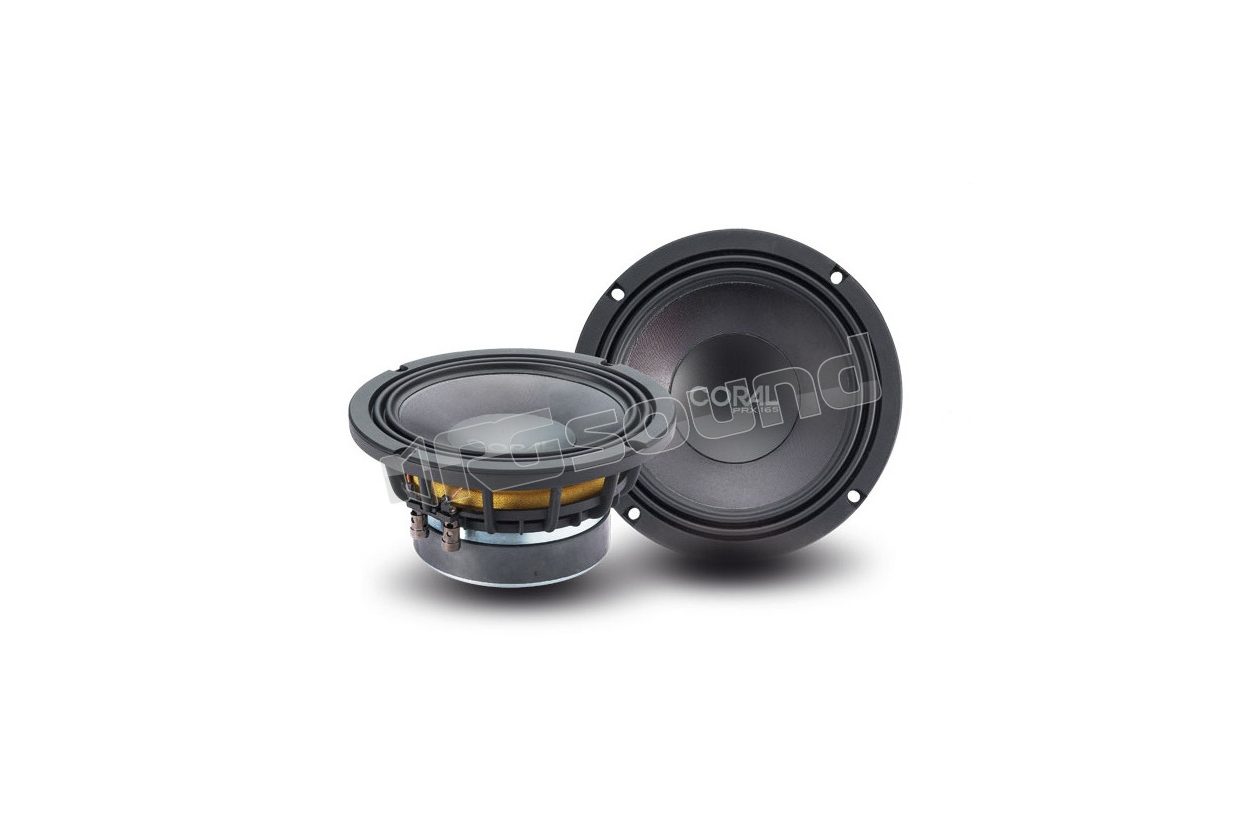

PRX 165

Coral Electronic

Discontinued

Your price:
€ 160,40
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
60 - 5000 Hertz
Sensitivity
92 dB
Impedance
4 Ohm
Installation Depth
74 mm
Woofer Material
Fibra di vetro

The PRX 165 woofer stands out for its extraordinary speed and dynamic capability, for timbral precision and voice naturalness, as well as for its high power handling.
All models in the Performa line are designed to deliver absolute high-end level performance and maximum flexibility in tuning.

Main features:

Power Max: 300 Watt (Pm)
  • RMS Power: 150 Watt (Pn)
  • Nominal impedance: 4 Ohm
  • Frequency response: 60 ÷ 5.000 Hz
  • Sensitivity: 92 dB (2.83 V/1 m)
  • Resonance frequency: 58 Hertz
  • Composite cone: made by coupling a fiberglass layer with a damping foam layer
  • Voice coil diameter: 38 mm wound on kapton support highly resistant to heat
  • Double wave suspension: made of butyl rubber to ensure high elasticity over time
  • Progressive wave spider: made of fabric impregnated with special resins to preserve shape and stability over time

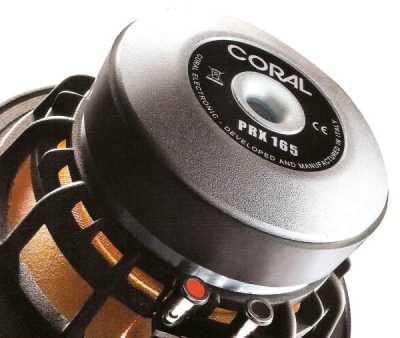

  • Vented magnet assembly: to achieve very low dynamic compression
  • Aluminum basket: made with thin spokes with aerodynamic profile to limit reflections at the back of the cone
  • External diameter: 166 mm
  • Installation hole: 142 mm
  • Depth: 74 mm

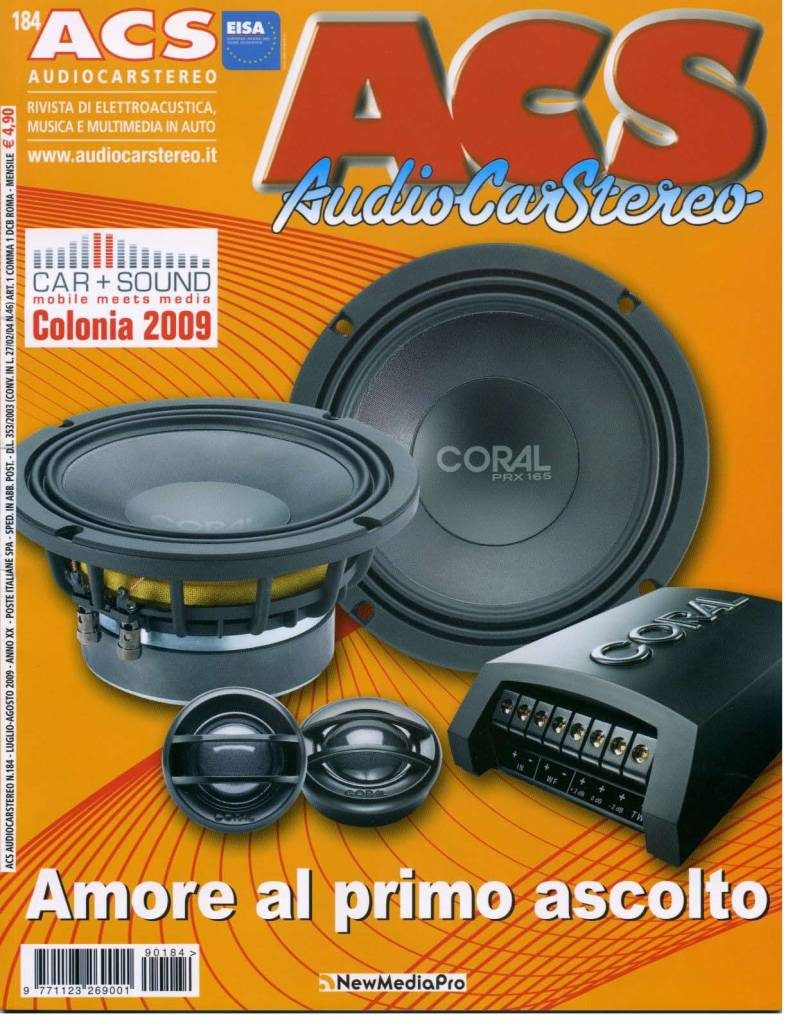

  • Test ACS

    20120214094632-prx-prova-acs184.pdf

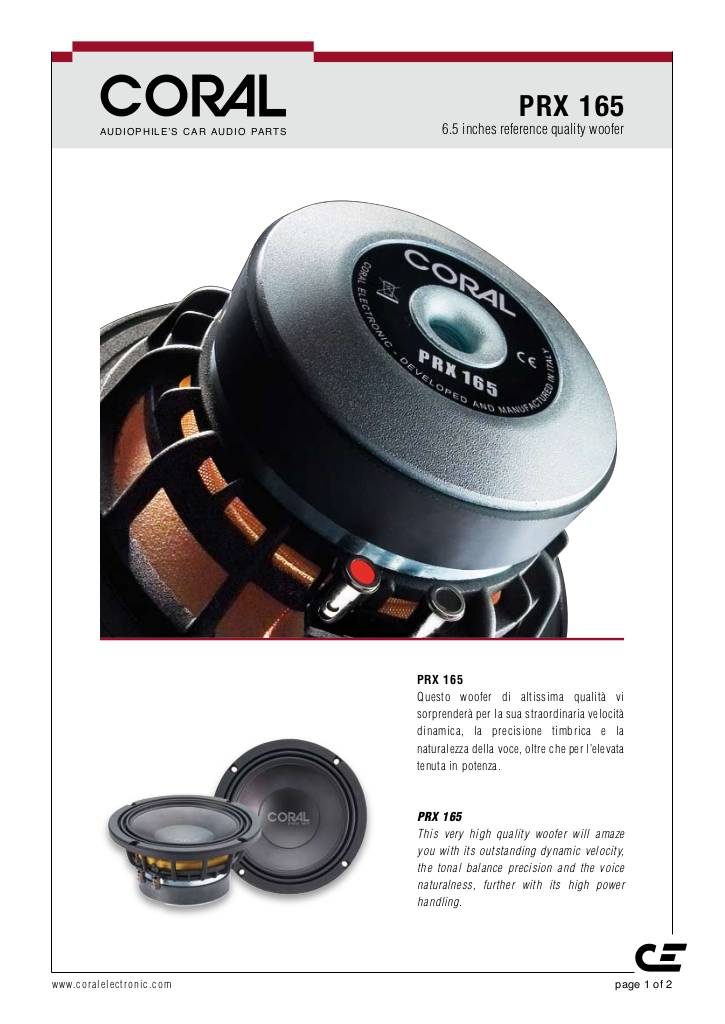

    Scheda tecnica

    20090223090843-prx-165-scheda-web.pdf
