PRO-X694BM 6X9” Bullet Speaker 200 Watt Rms 4-Ohm

DS18
Your price:
€ 70,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
6x9''
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
100 - 12500 Hertz
Sensitivity
96 dB
Impedance
4 Ohm
Installation Depth
83 mm
Midrange Cone Material
Cellulosa trattata

DS18 PRO-X694BM Bullet Speaker 6X9" for midrange 200 Watt Rms 4-Ohm

Mid-range speaker 6x9" with bullet

The PRO-X694BM offers unparalleled clarity and style to your car audio experience. It sets a new standard for 6x9" speaker upgrades.

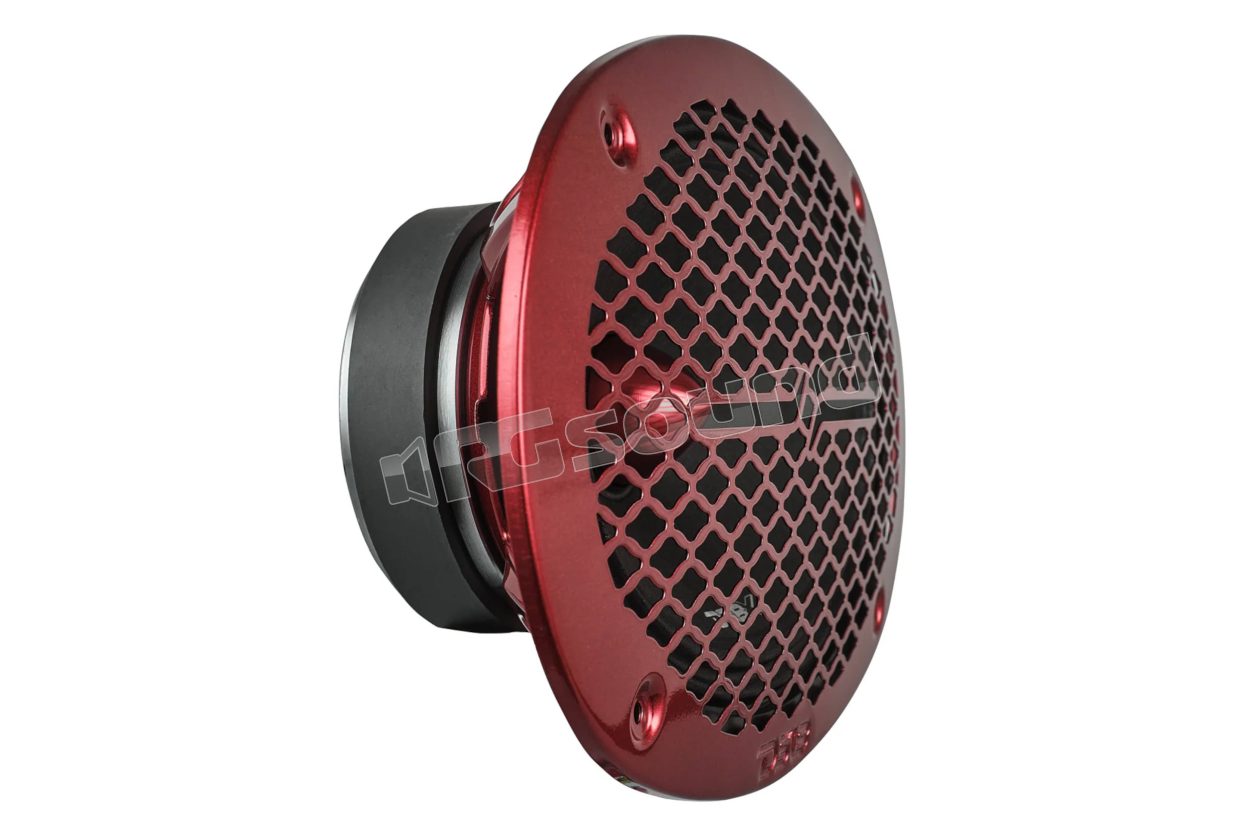

This latest version features a new high-impact grille design, designed to turn heads. The bold red honeycomb pattern showcases modern aesthetics that blend with the glossy red finish of the basket. The elegant DS18 emblem embedded in the center of the grille gives these speakers a distinctive look that simply screams LOUD!

The PRO-X694BM model was designed for powerful, distortion-free reproduction, to deliver the intensity of a live concert from the driver's seat. With an incredible 200 W RMS power and a peak of 400 W, you can push the limits of LOUD without sacrificing sound quality.

Uncompressed paper cones, combined with fabric edges housed in a steel basket, stand out before the music even starts. The design features a 1.5" Kapton voice coil, capable of withstanding high temperatures, ensuring longevity and consistent performance during the longest jam sessions.

The high sensitivity of 96 dB of the PRO-X694BM allows it to operate efficiently, converting energy into clear, audible sound without any hint of distortion, even at extreme volume levels. With a frequency response ranging from 100Hz to 12.5KHz, every note is reproduced at its best.

Choose the PRO-X694BM model for a style upgrade that will make every unit unforgettable.

DS18 PRO-X694BM technical specifications

  • Nominal diameter 6 x 9" / 152 x 228 mm
  • Nominal impedance 4 Ohm
  • Managed power RMS 200W
  • Maximum available power 400W
  • Sensitivity (1w/1m) 96dB
  • Frequency response 100Hz-12.5KHz
  • Recommended high-pass crossover 120HZ
  • Grille included
  • Voice coil diameter 1.5" / 38.6 mm
  • Voice coil material Kapton
  • Winding material CCAW
  • Cone material Uncompressed paper
  • Bullet material Aluminum
  • Color/Finish Glossy red
  • Surround material Fabric
  • Basket material Steel
  • Basket color/finish Glossy red
  • Magnet material Ferrite
  • Magnet weight 27Oz
  • Displacement volume 0.32L / 0.011ft3

Thiele & Small Parameters

  • Equivalent volume 20.38L / 0.719ft3
  • Excursion (one way) 7.7 mm
  • Free air resonance 120Hz
  • Mechanical factor 5.166
  • Electrical factor 0.731
  • Total factor 0.64
  • Mechanical mass 8.551g
  • Mechanical compliance 0.225 mm/N
  • BL factor 6.544
  • Voice coil inductance 3.86mH
  • Cone area 207.34cm2
  • DC resistance 3.2 ohm
  • Overall diameter 9.25 x 6.5" / 235 x 165 mm
  • Overall diameter with grille 10.2 x 7.08" / 260 x 180 mm
  • Mounting depth 3.27" / 83mm
  • Overall depth 3.5" / 88.85 mm
  • Overall depth with grille 3.9" / 100 mm
€ 70,00 Price incl. VAT
