PRO-TWX6 Super Bullet Tweeter 240 Watt 1.5" Titanium 8-Ohm VC

DS18
Your price:
€ 45,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
MAX Power
480 Watt
RMS Power
240 Watt
Frequency Response
1.7-20KHz Hertz
Sensitivity
112 dB
Impedance
8 Ohm

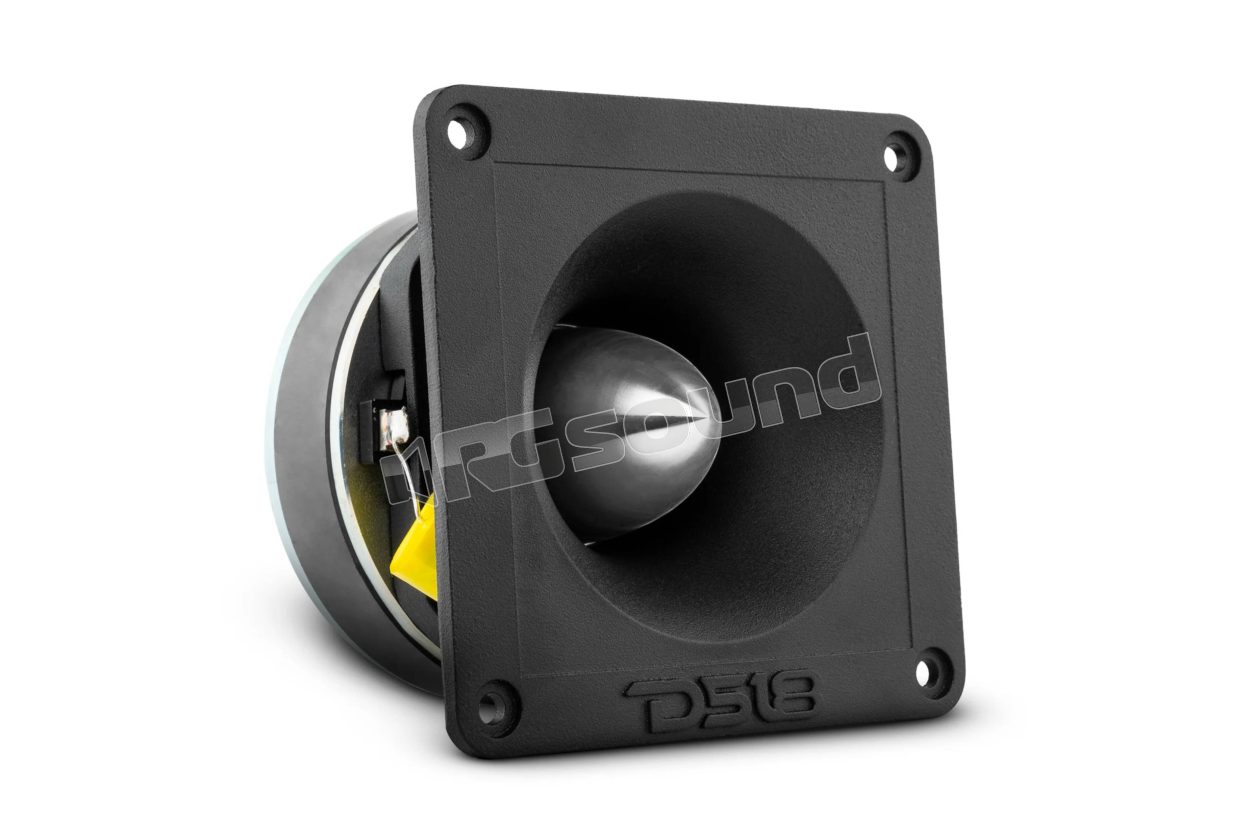

DS18 PRO-TWX6 Super Bullet Tweeter 240 Watt 1.5" Titanium 8-Ohm Vc

Super Bullet Tweeter 4" x 4" 240 Watt 1.5" Titanium 8-Ohm Vc. The PRO-TWX6 is destined to redefine the audio experience while traveling. Inside, a 1.5 inch titanium voice coil, capable of handling an impressive 240 W of power and a stunning 480 W of MAX power, is ready to tackle anything your system throws at it.

The ferrite motor structure ensures optimal performance and offers unparalleled sound reproduction. With a sensitivity of 112 dB, these tweeters produce penetrating volume without requiring excessive power consumption. But it's not just the power that sets the DS18 PRO-TWX6 apart: it's also the range. With a frequency response from 1.7KHz to 20KHz, the PRO-TWX6 capture every nuance of your favorite music.

Installing the DS18 PRO-TWX6 is a breeze. The sturdy 4 x 4 aluminum throat not only facilitates mounting, but adds a symmetrical look to your car audio system. With a mounting depth of just 2.5 inches, the PRO-TWX6 fit seamlessly into most door panel positions, requiring minimal fabrication work.Elevate your driving experience with the DS18 PRO-TWX6, because mediocre sound is not an option with DS18.

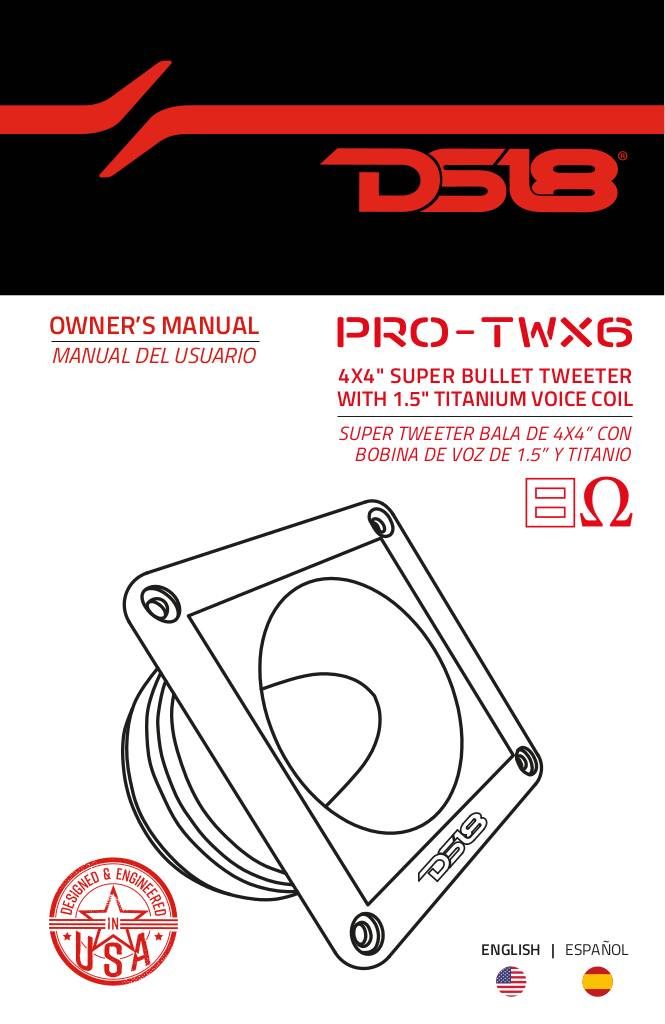

Scheda tecnica

n-20241025093756-pro-twx6-scheda-tecnica.pdf

DS18 PRO-TWX6 Technical Specifications

  • Nominal diameter 4" x 4" / 102 x 102 mm
  • Nominal impedance 8 Ohm
  • AES handling power 120W
  • Program handling power 240W
  • Peak power 480W
  • Sensitivity (1w/1m) 112 dB
  • Frequency response 1.7K-20KHz
  • Recommended high-pass crossover 2.5KHz
  • Sold in pair or single Single
  • Body material aluminum
  • Body color / Finish black
  • Faceplate color/finish black
  • Bullet material Aluminum

Motor

  • Voice coil diameter 1.5" / 38 mm
  • Voice coil material Kapton
  • Winding materialSVDiaphragm material
  • Diaphragm materialTitaniumMagnet material
  • Magnet materialFerriteMagnet weight
  • Magnet weight 15 oz

Dimensions

  • Overall diameter 4" x 4" / 102 x 102 mm
  • Overall depth 2.7" / 69 mm
  • Baffle cutout for front mounting 3.62" / 92mm
  • Mounting depth 2.5" / 65 mm
  • Motor diameter 3.5" / 90 mm
  • Gross weight of single unit (lb) 3
  • Single unit box dimensions L x W x H (inches) 4.25 x 4.25 x 3.25
  • Quantity of units in main carton 10
  • Gross weight of master box (lb) 29
  • Main carton dimensions L x W x H (inches) 21.5 x 9 x 4.25
€ 45,00 Price incl. VAT
