PRO-TWX5 1.5” 250 Watt Aluminum Super Bullet Tweeter

DS18

Coming soon

Your price:
€ 44,00
Price per single item (VAT included)
Type
Tweeter
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
3-20KHz Hertz
Sensitivity
107 dB
Impedance
4 Ohm

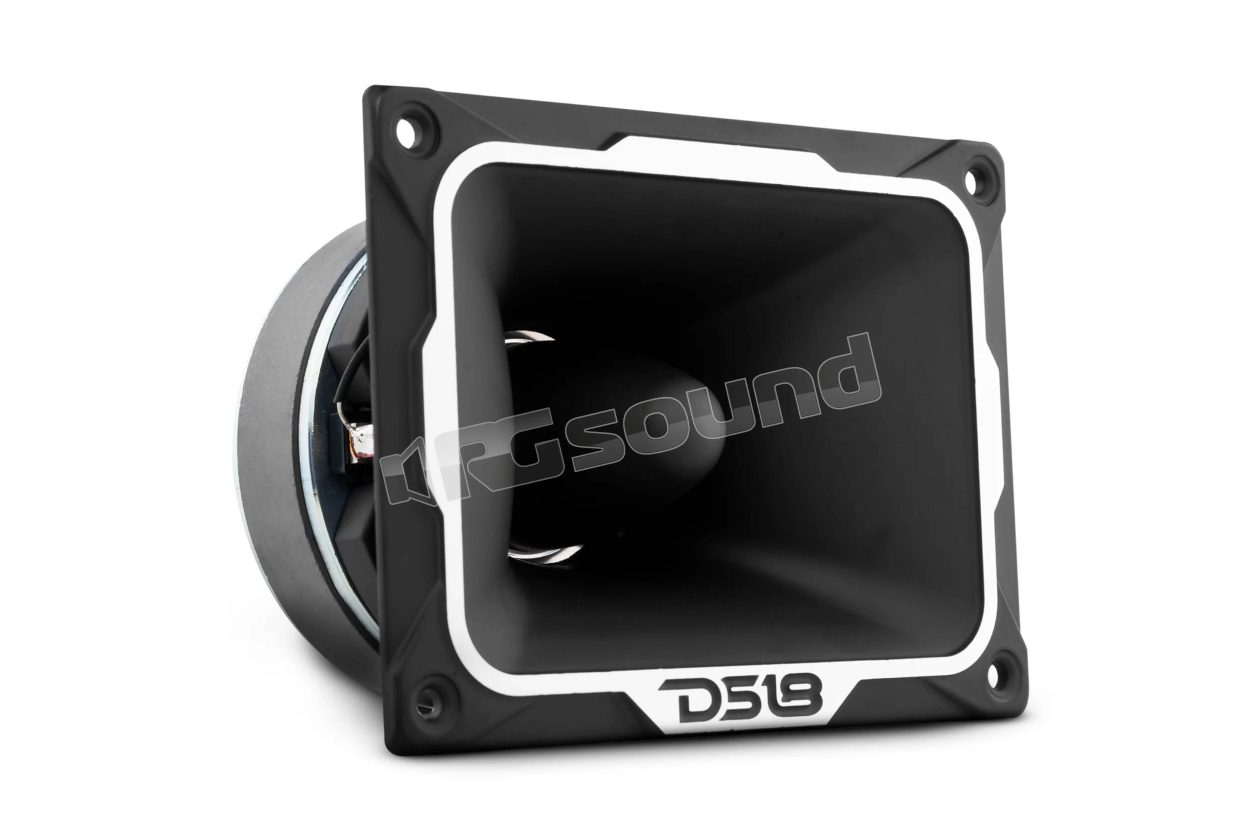

DS18 PRO-TWX5 Super Bullet Tweeter 250 Watt 1.5" Aluminum 4-Ohm Vc

The DS18 PRO-TWX5 is housed in an elegant and refined aluminum enclosure, featuring an extraordinary 1.5 inch aluminum voice coil with a rated power of 250 W RMS and a maximum power of 500 W, thanks also to the robust ferrite motor structure. What sets the DS18 PRO-TWX5 apart from the competition is its exceptional sensitivity of 107 dB.

With a frequency response ranging from 3KHz to 20KHz, the PRO-TWX5 ensures that no detail is left unheard. These tweeters do not just reproduce audio, but create an atmosphere that brings your favorite songs to life. The PRO-TWX5 not only guarantees exceptional performance, but also offers unparalleled practicality. Its easily removable design allows you to replace the voice coil quickly and without problems, allowing you to repair any damage on the go.

Scheda tecnica

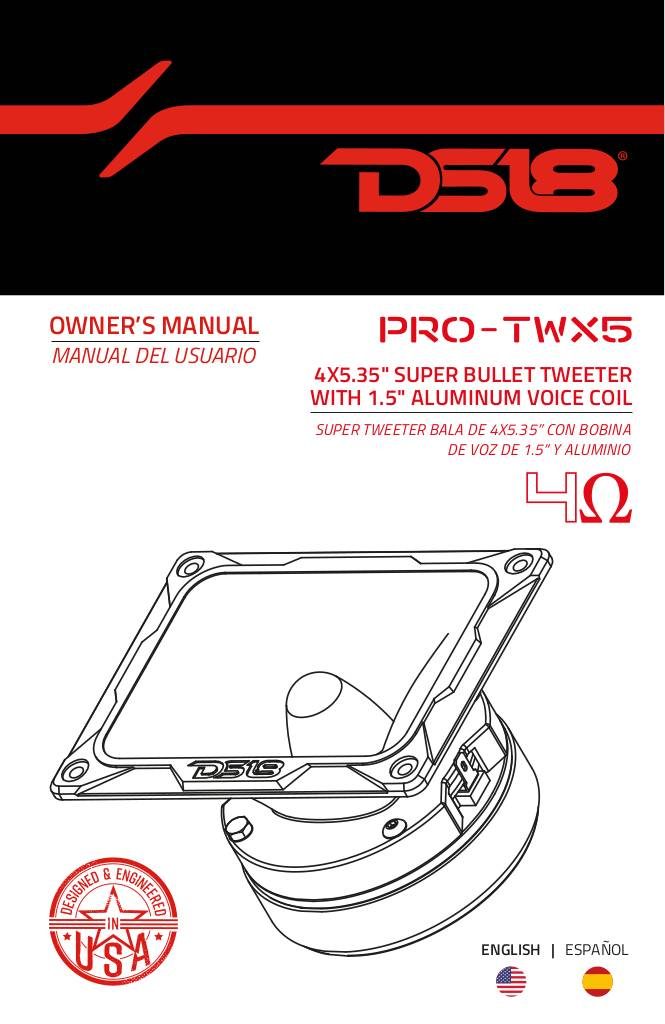

n-20241025094637-pro-tw5vc-scheda-tecnica.pdf

DS18 PRO-TWX5 Technical Specifications

  • Nominal diameter 4" x 5.35" / 101.5 x 136 mm
  • Nominal impedance 4 Ohm
  • AES handling power 125W
  • Program power 250W
  • Peak power 500W
  • Sensitivity (1w/1m) 107 dB
  • Frequency response 3K-20Khz
  • Recommended high-pass crossover 3Khz
  • Sold in pair or single
  • Filter (bass blockage) N/A
  • Body material Aluminum
  • Body color / finish black / silver finishes
  • Faceplate color/finish black/machined
  • Bullet material Aluminum

Motor

  • Voice coil diameter 1.5" / 38 mm
  • Voice coil material Kapton
  • Winding material CCAW
  • Diaphragm material Aluminum
  • Magnet material Ferrite
  • Magnet weight 14 ounces

Dimensions

  • Overall diameter 4" x 5.35" / 101.5 x 136 mm
  • Overall depth 3.17" / 80.5 mm
  • Deflector cutout for front mounting 3" x 4" / 77 x 104 mm
  • Mounting depth 2.95 / 75 mm
  • Motor diameter 3.5" / 90 mm
  • Net weight of single unit (lb) 3
  • Single unit box dimensions L x W x H (inches) 6.25 x 4.5 x 3.5
  • Quantity of units in master carton 12
  • Net weight of master carton (lb) 34
  • Master carton dimensions L x W x H (inches) 13 x 9 x 11.25
