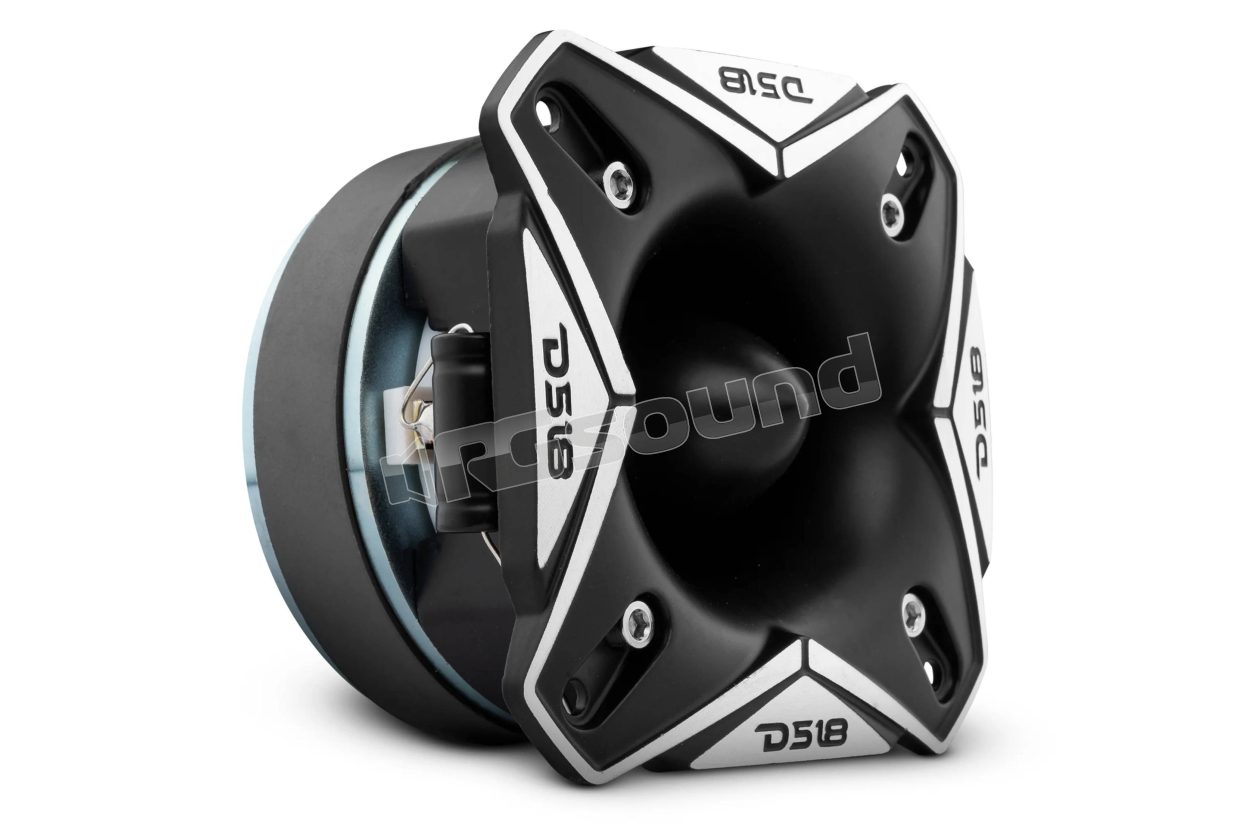

PRO-TWX3Ti 3.8“ Super Bullet Tweeter 250 Watt 1.5” Titanium 4-Ohm Vc

DS18

Coming soon

Your price:
€ 45,00
Price per single item (VAT included)
Type
Tweeter
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
1.6-20KHz Hertz
Sensitivity
108 dB
Impedance
4 Ohm

DS18 PRO-TWX3Ti Super Bullet Tweeter 3.8" 250 Watt 1.5" Titanium 4-Ohm Vc

DS18 PRO-TWX3Ti Compression tweeter Super Bullet with 1.5" titanium voice coil, designed to deliver intense volume with unparalleled clarity, the PRO-TWX3Ti handles power efficiently. This model is equipped with a titanium voice coil that supports the driver in producing highs.

These professional-level super tweeters are capable of handling 500 W of power and delivering accurate sound with a high frequency response from 1.6 kHz to 20 kHz. The PRO-TWX3Ti includes a bass blocking capacitor for a cleaner signal that prevents the production of low frequencies; the result is brilliant highs and greater protection for the driver and voice coil!

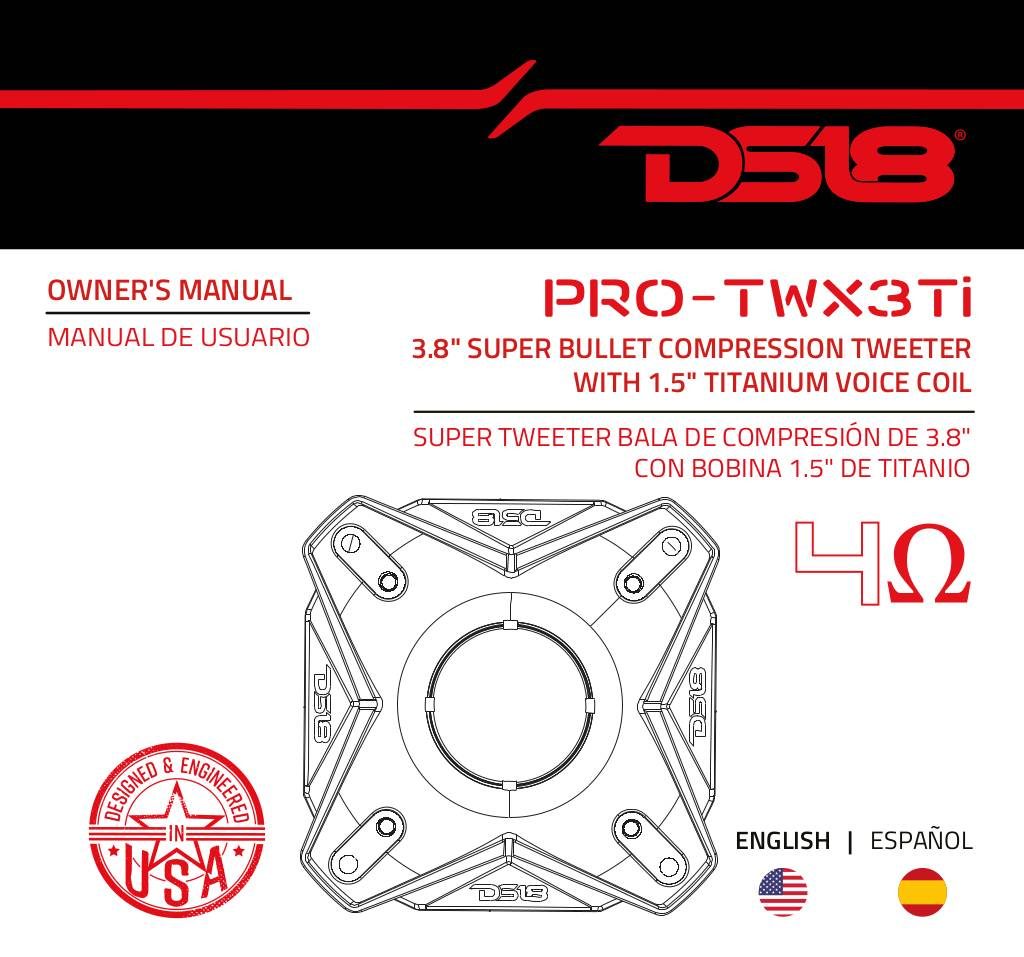

Scheda tecnica

n-20241025095449-pro-twx3tivc-scheda-tecnica.pdf

DS18 PRO-TWX3Ti Technical Specifications

  • Nominal diameter 3.8" / 96.5 mm
  • Nominal impedance 4 Ohm
  • AES handling power 125W
  • Program power 250W
  • Peak power 500W
  • Sensitivity (1w/1m) 108 dB
  • Frequency response 1.6kHz-20kHz
  • Recommended high pass crossover 2.5kHz
  • Sold in pair or single
  • Filter (bass blocking) 4.7uf / 50V
  • Body material aluminum
  • Body color / Finish black
  • Faceplate color/finish black/machined
  • Bullet material Aluminum

Motor

  • Voice coil diameter 1.5" / 38.1 mm
  • Voice coil material Kapton
  • Winding material CCAW
  • Diaphragm material Titanium
  • Magnet material Ferrite
  • Magnet weight 15 oz

Measurements

  • Overall diameter 3.8" / 96.5 mm
  • Overall depth 2.65" / 67.5 mm
  • Baffle cutout for front mounting 3.62" / 92mm
  • Mounting depth 2.2" / 55.8mm
  • Motor diameter 3.5" / 90 mm
  • Single unit gross weight (lb) 3
  • Single unit box dimensions W x D x H (inches) 5 x 4.75 x 3.5
  • Quantity of units in master carton 12
  • Master carton gross weight (lb) 34.5
  • Master carton dimensions W x D x H (inches) 14.75 x 10.5 x 7
