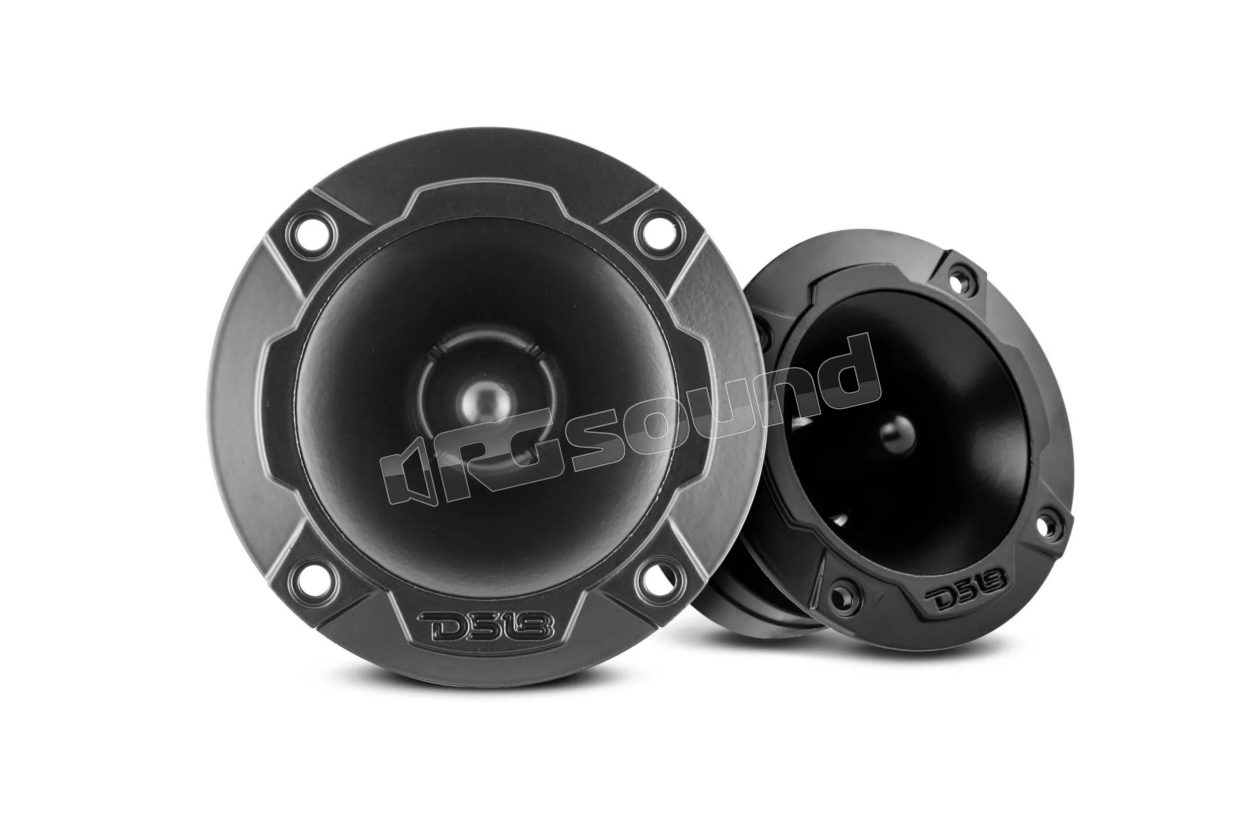

PRO-TWX2 3.8“ Super Bullet Tweeter 120 Watt 1” Aluminum VC 4 Ohm

DS18
Your price:
€ 45,00
Price per single item (VAT included)
Calculating shipping costs to
Type
Super Tweeter
Dome Size
25 mm
MAX Power
240 Watt
RMS Power
120 Watt
Frequency Response
3500 - 20000 Hertz
Sensitivity
103.5 dB
Impedance
4 Ohm
Outer Diameter
96 mm
Installation Depth
65 mm
Tweeter Material
Alluminio

DS18 PRO-TWX2 3.8" Super Bullet Tweeter 120 Watt 1" Vc Aluminum 4 Ohm

The PRO-TWX2 by DS18 combines volume and sound quality to give you the best of both worlds. With a 1 inch 4 Ohm titanium voice coil that handles 60W AES, 120W Program, 240W peak power and a built-in capacitor filter, the PRO-TWX2 is powerful and reliable. Built with a Bullet dust cover, the voice coil is protected and delivers a clear and powerful sound experience. The impressive 103.5 dB sensitivity allows the PRO-TWX2 to blast high frequencies at high volume with excellent sound quality.

Scheda tecnica

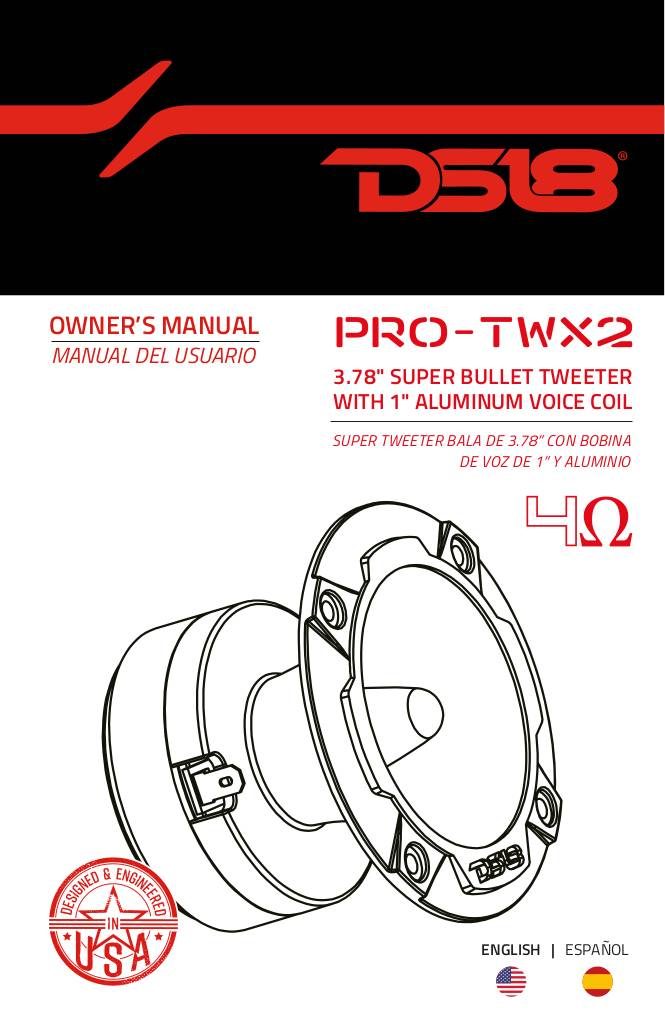

n-20241025101259-pro-twx2-scheda-tecnica.pdf

DS18 PRO-TWX2 Technical Specifications

  • Nominal diameter 3.8" / 96 mm
  • Nominal impedance 4 Ohm
  • AES power handling 60W
  • Program power 120W
  • Peak power 240W
  • Sensitivity (1w/1m) 103.5 dB
  • Frequency response 3.5K-20KHz
  • Recommended high-pass crossover 3.5KHz
  • Sold in pairs or single pair
  • Filter (bass blocking) N/A
  • Body material Aluminum
  • Body color / finish black
  • Faceplate color/finish black/machined
  • Bullet material Aluminum

Motor

  • Voice coil diameter 1" / 25.4 mm
  • Voice coil material Kapton
  • Winding material CCAW
  • Diaphragm material Aluminum
  • Magnet material Ferrite
  • Magnet weight 8 oz

Dimensions

  • Overall diameter 3.78" / 96 mm
  • Overall depth 2.78" / 70.5 mm
  • Baffle cutout for front mounting 2.83" / 72 mm
  • Mounting depth 2.56" / 65 mm
  • Motor diameter 2.76" / 70 mm
  • Single unit gross weight (lb) 3
  • Single unit box dimensions W x D x H (inches) 8.75 x 4.5 x 3
  • Quantity of units in master carton 12
  • Master carton gross weight (lb) 36
  • Master carton dimensions W x D x H (inches) 18.5 x 9.75 x 10
