PRO-TWN6.4 4“ 150 Watt High-Compression Neodymium Tweeter

DS18
Your price:
€ 60,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
2-20 KHz Hertz
Sensitivity
109 dB
Impedance
4 Ohm

DS18 PRO-TWN6.4 High Compression Neodymium Tweeter 4" 150 Watt 1.25" Polyimide 4-Ohm Vc

The DS18 PRO-TWN6.4 is a masterpiece, equipped with a 1.25" voice coil that harmonizes perfectly with your car audio system. Crafted with an aluminum body, the PRO-TWN6.4 delivers exceptional sound, and the black finished and machined appearance adds a touch of elegance, ensuring it integrates perfectly with your vehicle's aesthetics.

The 1.25" voice coil, coated in Kapton and wound in CCAR, guarantees superior durability and heat resistance. The Polyimide diaphragm faithfully reproduces musical details with maximum precision. But what sets the DS18 PRO-TWN6.4 apart from the rest is its revolutionary neodymium magnet. With an unparalleled sensitivity of 109 dB, the DS18 PRO-TWN6.4 effortlessly reaches stunning volumes with minimal power consumption.

With the power of cutting-edge technology, the PRO-TWN6.4 handles 75W AES power, 150W program power, and 300W peak power. Designed to fit perfectly into most spaces, with slight modifications or machining, the PRO-TWN6.4 integrates seamlessly with your setup, becoming the focal point of your audio performance.

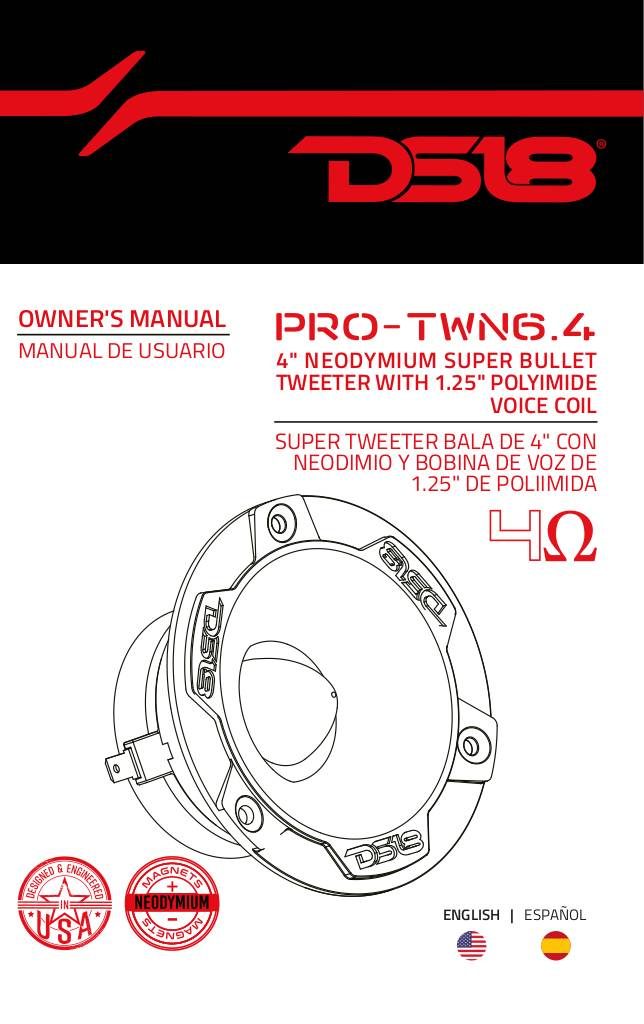

Scheda tecnica

n-20241029120035-pro-twn6-4-scheda-tecnica.pdf

DS18 PRO-TWN6.4 Technical Specifications

  • Nominal diameter 4" / 100 mm
  • Nominal impedance 4 Ohm
  • AES handling power 75 Watt
  • Program power 150 Watt
  • Peak power 300 Watt
  • Sensitivity (1w/1m) 109 dB
  • Frequency response 2K-20KHz
  • Recommended high-pass crossover 3KHz

Motor

  • Voice coil diameter 1.25" (32 mm)
  • Voice coil material Kapton
  • Winding material CCAR
  • Diaphragm material Polyimide
  • Magnet material Neodymium
  • Body material 1.05 oz

Measurements

  • Overall diameter 3.93" / 100 mm
  • Overall depth 1.96" / 50 mm
  • Baffle cutout for front mounting 3.22" / 82mm
  • Mounting depth 1.77" / 45mm
  • Product weight 1.28 lbs
  • Product dimensions 4.25 x 4.25 x 3
  • M/C weight 32 lbs
  • M/C dimensions 17.25 x 13 x 7.75
