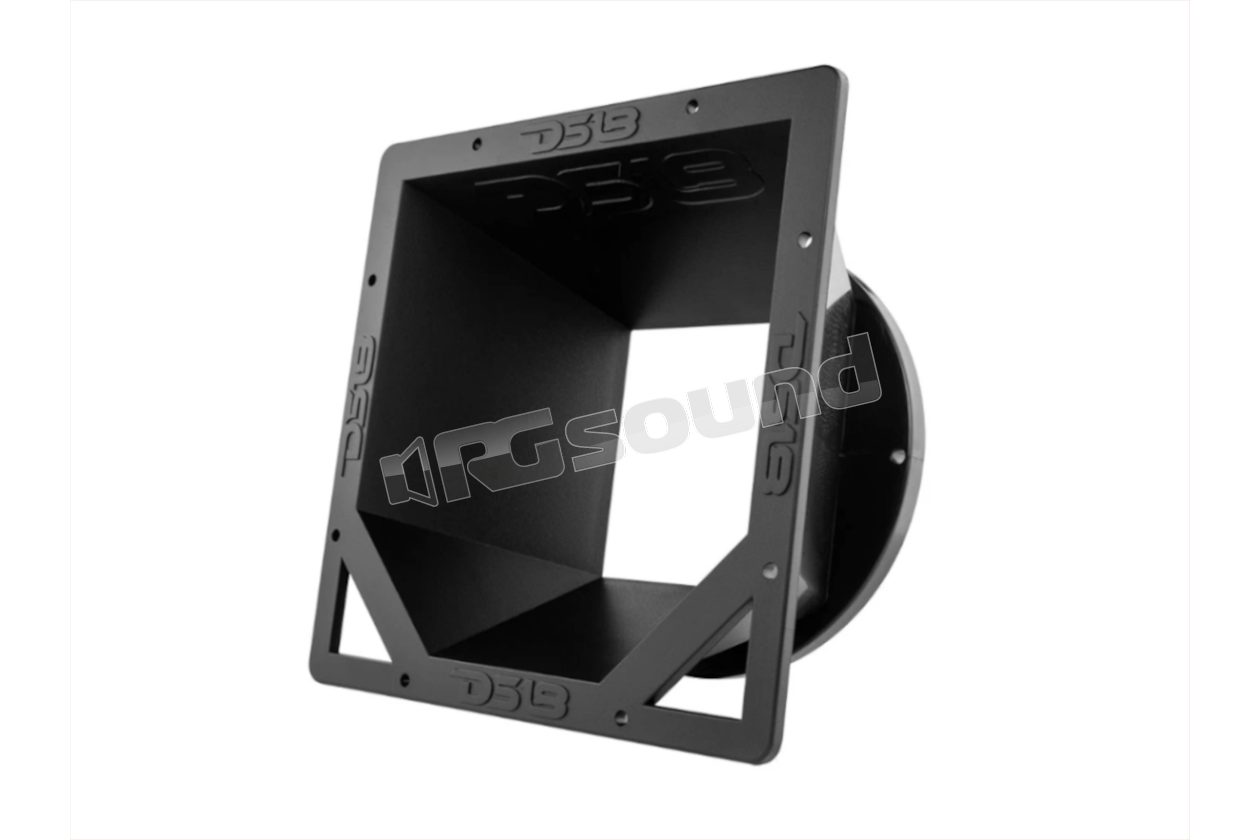

PRO-SDF8 8" Speaker Diffuser

DS18

Coming soon

Your price:
€ 50,00
Price per single item (VAT included)

DS18 PRO-SDF8 8" Speaker Horn

With the DS18 PRO-SDF8, you can unleash bursts of targeted audio energy toward the crowd at your next local car meet. Engineered for competition, the PRO-SDF8 is designed to project audio for miles without compromising sound quality.

Precision engineering is at the forefront of PRO-SDF8 design. The 198 mm horn bolt ensures secure mounting to the 8" mid-range speaker, even when the bass is turned up. The 6 mm horn thickness ensures durability and longevity, ensuring that your audio investment is not wasted.

DS18 PRO-SDF8 Technical Specifications

  • Nominal speaker diameter (not included) 8" / 203.2 mm
  • Nominal horn size 10" / 254 mm
  • Throat diameter 4.92x4.92" / 125x125 mm
  • Installation type: threaded
  • Sound coverage 90°
  • Body material ABS
  • Color Matte Black

Dimensions

  • Overall diameter 10" / 254 mm
  • Overall depth 5.15" / 131 mm
  • Mounting depth 4.88" / 124 mm
  • Mounting hole diameter 8.9x8.9" / 226x226 mm
  • Bolt pattern (speaker) 7.79" / 198 mm
