PRO-SDF10 10” horn diffuser for speakers

DS18

Coming soon

Your price:
€ 64,00
Price per single item (VAT included)

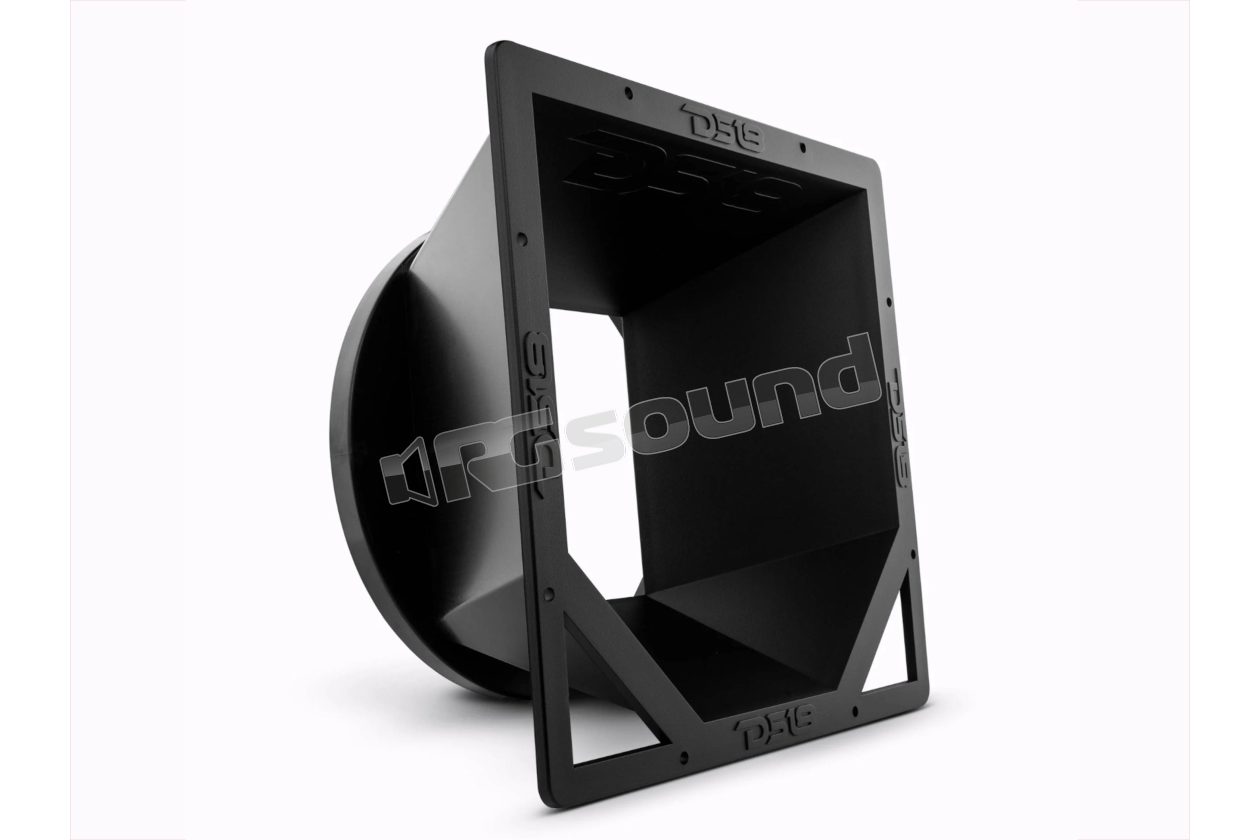

DS18 PRO-SDF10 10" Horn Speaker Diffuser

With the DS18 PRO-SDF10, you can unleash targeted beams of audio energy toward the crowd at your next local car meet. Engineered for competition, the PRO-SDF10 is designed to project audio for miles without compromising sound quality.

Precision engineering is at the forefront of PRO-SDF10 design. The 248 mm diffuser bolt ensures secure mounting to the 10" mid-range speaker, even when the bass is turned up. The 6 mm diffuser thickness ensures durability and longevity, ensuring that your audio investment doesn't go to waste. The PRO-SDF10 comes with 4-M4 nut inserts, making installation a breeze.

DS18 PRO-SDF10 Technical Specifications

  • Nominal speaker diameter (not included) 10" / 254 mm
  • Nominal horn size 12" / 304 mm
  • Throat diameter 6.4x6.4" / 163x163 mm
  • Installation type: Bolt-on
  • Sound coverage 90°
  • Body material ABS
  • Color Matte Black

Measurements

  • Overall diameter 11.93" / 303 mm
  • Overall depth 5.94" / 151 mm
  • Mounting depth 5.67" / 144 mm
  • Mounting hole diameter 10.8x10.8" / 275x275 mm
  • Bolt pattern (speaker) 9.76" / 248 mm
