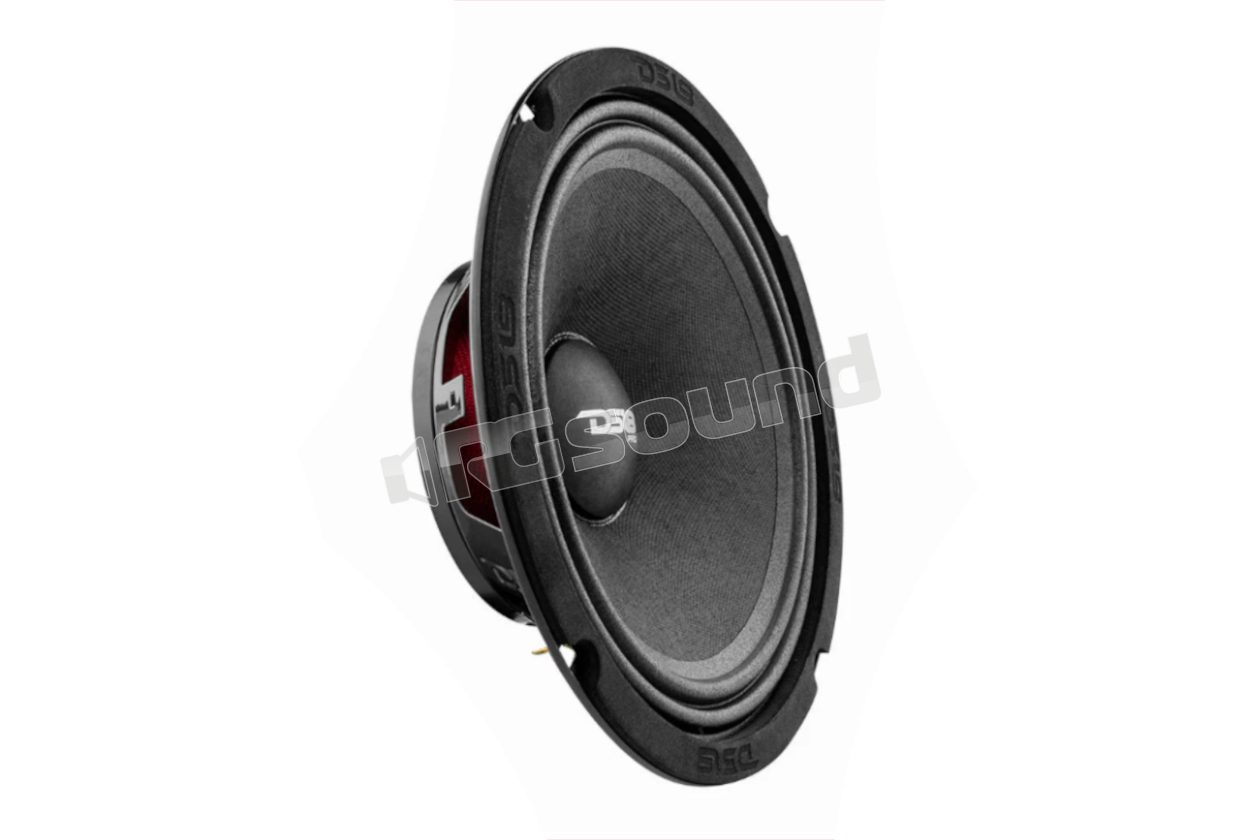

PRO-NS8 8” shallow-mount neodymium full-range speaker

DS18
Your price:
€ 80,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Full Range speaker
Speaker Size
80 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
97Hz - 12Khz Hertz
Sensitivity
96 dB
Impedance
8 Ohm

DS18 PRO-NS8 8" Full-Range Shallow Neodymium Speaker

Are you looking for maximum volume without sacrificing space? Look no further than the PRO-NS8, DS18's neodymium shallow-depth mid-range speaker. This 8-inch midrange speaker boasts a high-efficiency 2-inch voice coil that handles enormous power of 200 W RMS and 400 W peak for extreme volume and frequency precision. What sets the PRO-NS8 apart is its reduced mounting depth of just 2.48 inches, making it the perfect solution for those tight spaces where larger speakers won't fit.

The elegant, thin design of the PRO-NS8 does not skimp on performance. With a sensitivity of 96 dB, the PRO-NS8 is incredibly efficient at converting energy into sound, which means you can get much louder sound from your amplifier compared to less efficient speakers. This is a huge advantage for those who want to listen to their music at high volume without having to push the amplifier to maximum power. The materials of the PRO-NS8, including the glossy red steel basket, neodymium magnet, paper cone, copper voice coil and fabric dust cap, work together to offer an exceptional balance between durability and sound quality. The result is a speaker that delivers accurate, powerful and detailed sound while maintaining its structural integrity for years to come. The PRO-NS8 is the ultimate choice for those seeking exceptional sound quality and durability in a compact, thin package.

Scheda tecnica

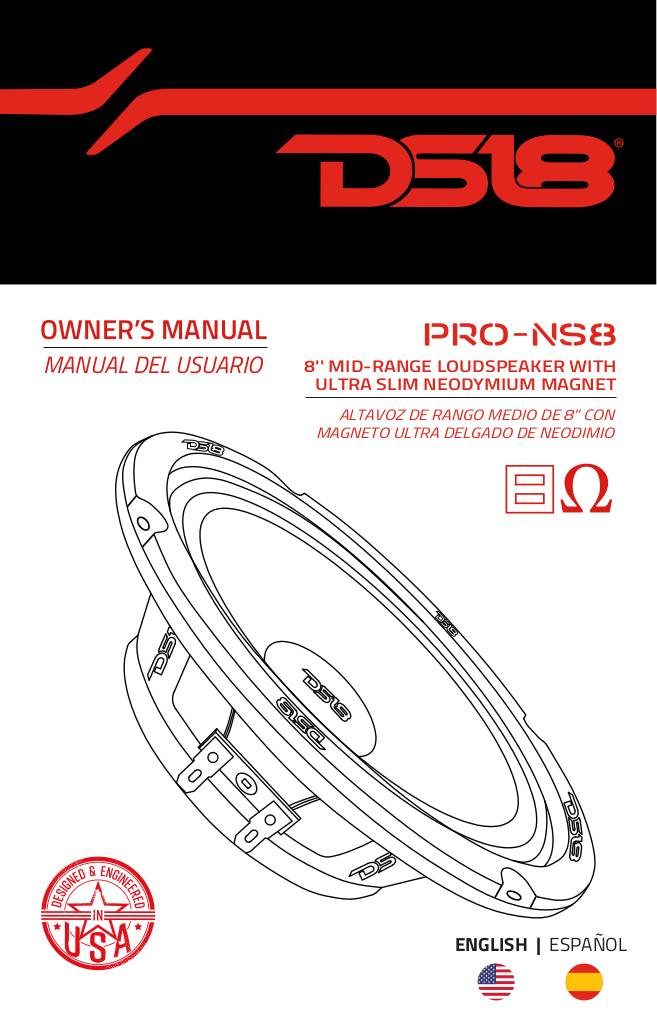

n-20250304140807-pro-ns8-scheda-tecnica.pdf

DS18 PRO-NS8 Technical Specifications

  • Nominal diameter 8" / 208 mm
  • Nominal impedance 8 OHM
  • Handled RMS power 200W
  • Maximum available power 400W
  • Sensitivity (1w/1m) 96dB
  • Frequency response 97Hz - 12Khz
  • Recommended high-pass crossover 160Hz
  • Voice coil diameter 2" / 50.8 mm
  • Voice coil material KSV
  • Winding material: copper
  • Cone material Paper
  • Dust cap material Paper
  • Magnet material Neodymium
  • Magnet weight 3.32 ounces

Thiele & Small Parameters

  • Equivalent volume - Vas 5.48L / 0.193ft3
  • Excursion (unidirectional) - Xmax 2mm
  • Free air resonance - Fs 120Hz
  • Mechanical factor - Qms 3.781
  • Electrical factor - Qes 0.952
  • Total factor - Qts 0.761
  • DC resistance - Re 6.5 ohm

Measurements

  • Overall diameter 8.2" / 208 mm
  • Overall depth 2.67" / 68 mm
  • Baffle cutout for front mounting 7.12" / 181 mm
  • Mounting depth 2.48" / 63 mm
  • Motor diameter 4.33" / 110 mm
