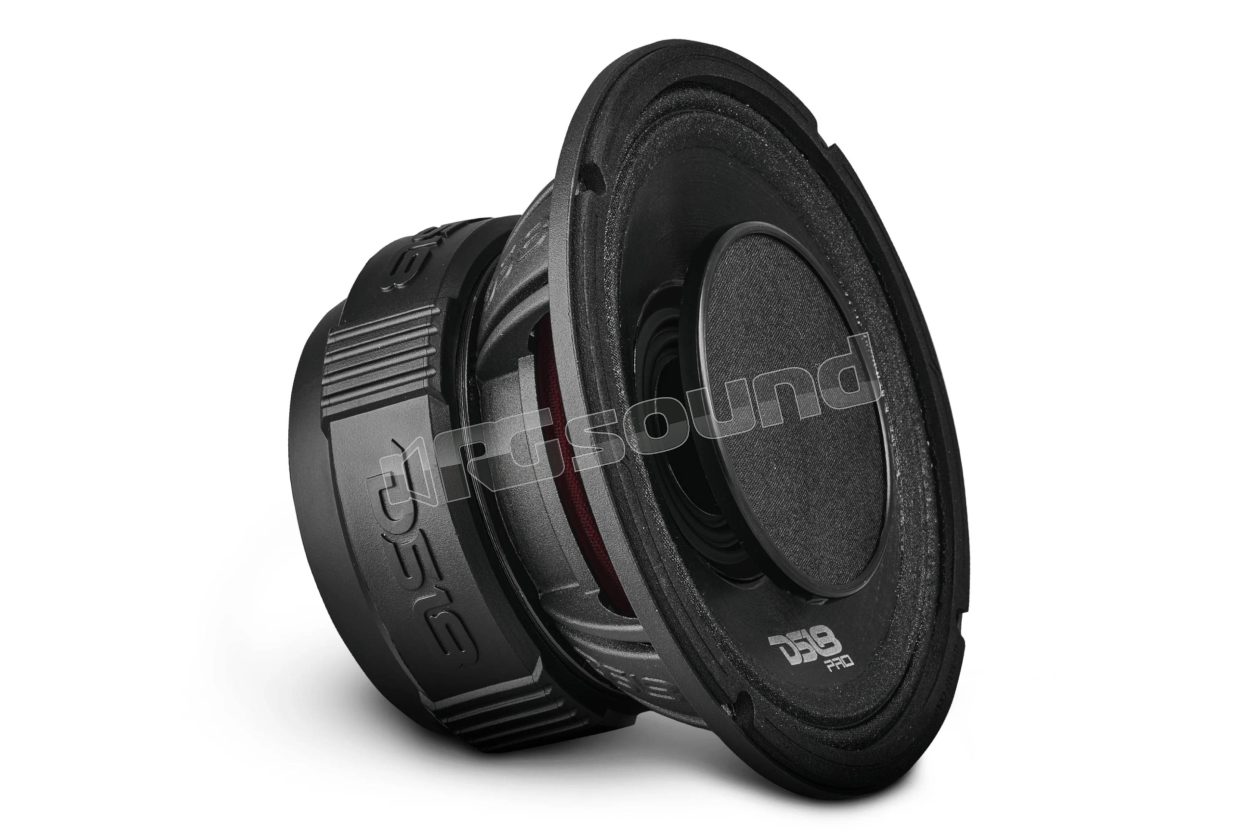

PRO-HY6.4B 6.5” water-resistant hybrid coaxial speaker with built-in driver

DS18
Your price:
€ 95,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
165 mm
MAX Power
450 Watt
RMS Power
225 Watt
Frequency Response
100 - 20000 Hertz
Sensitivity
96 dB
Impedance
4 Ohm
Installation Depth
99,5 mm
Midrange Cone Material
Cellulosa trattata

DS18 PRO-HY6.4B 6.5" Hybrid Coaxial Water-Resistant Speaker with Built-in Driver

The PRO-HY6.4B speakers are built with water-resistant paper cones, to withstand the most demanding conditions, while maintaining maximum performance. The PRO-HY6.4B are equipped with a 6.5" high-output speaker and a 1" voice coil driver, both with a power of 225W RMS and 450W MAX. With a sensitivity of 96 dB and a frequency response ranging from 100 Hz to 20 KHz, these speakers offer crystal-clear sound across the entire audible spectrum.


The DS18 PRO-HY6.4B driver is equipped with a diaphragm made of titanium, renowned for its remarkable stiffness-to-weight ratio. This premium material guarantees extraordinary clarity, allowing you to hear every nuance and detail of your favorite music with uncontaminated precision. The driver magnet is made of neodymium, a powerful and lightweight material that ensures superior control and response. Every detail matters in the construction of the PRO-HY6.4B: the 1.5" voice coil diameter and the fiberglass core ensure flawless performance and durability.

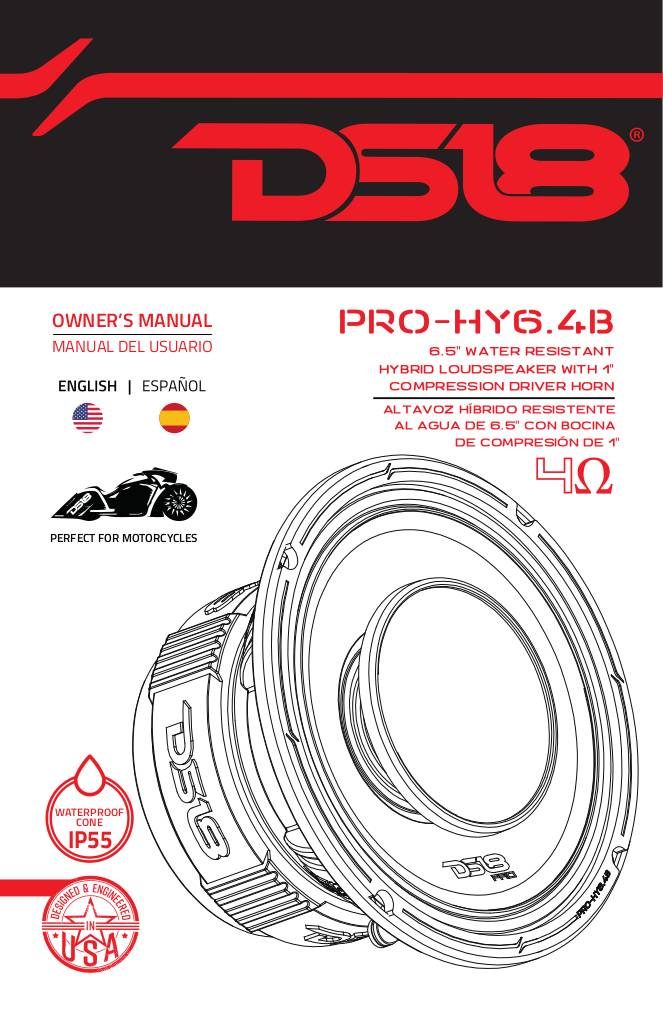

Scheda tecnica

n-20241031164743-pro-hy6-4b-scheda-tecnica.pdf

DS18 PRO-HY6.4B Technical Specifications

  • Nominal diameter 6.5" / 165.1 mm
  • Nominal impedance 4 Ohm
  • RMS handling power 225W
  • Maximum power absorbed 450 W
  • Sensitivity (1w/1m) 96dB
  • Frequency response 100Hz - 20Khz
  • Recommended high-pass crossover 120Hz
  • Number of ways 2 way
  • Grille included Yes

Woofer Specifications

  • Voice coil diameter 1.5" / 38.6 mm
  • Voice coil material Fiberglass
  • Winding material CCAW
  • Cone material Water-resistant paper (IPx5)
  • Edge material Cloth
  • Basket material Aluminum
  • Basket color/finish Shiny red
  • Magnet material Ferrite
  • Magnet weight 27 oz
  • Displacement volume 0.047L / 0.0016ft3

Driver Specifications

  • Voice coil diameter 1" / 25.4 mm
  • Voice coil material Kapton
  • Winding material CCAW
  • Diaphragm material Titanium
  • Magnet material Neodymium
  • Horn diameter 3" / 76.2 mm

Speaker Measurements

  • Overall diameter 6.85" / 174 mm
  • Overall depth 4.28" / 108.8 mm
  • Baffle cutout for front mounting 5.91" / 150 mm
  • Mounting depth 3.92 / 99.5 mm
  • Motor diameter 4.65" / 118 mm
