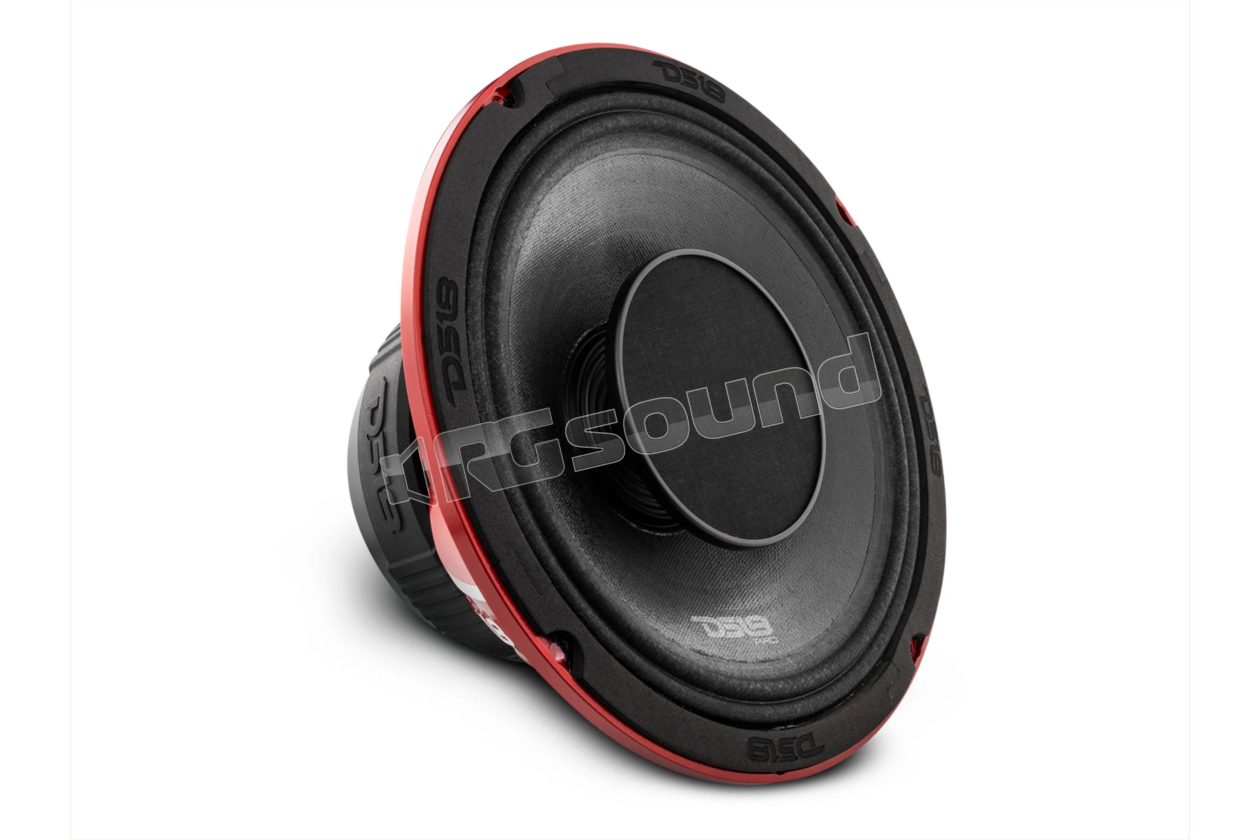

PRO-HY10.4B 10” hybrid midrange speaker with built-in driver

DS18

Coming soon

Your price:
€ 230,00
Price per single item (VAT included)
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
Frequency Response
40Hz - 20KHz Hertz
MAX Power
700 Watt
RMS Power
350 Watt
Sensitivity
100 dB
Impedance
4 Ohm

DS18 PRO-HY10.4B 10" Hybrid Mid-Range Speaker with Built-In Driver

The PRO-HY10.4B is a high-power, water-resistant hybrid speaker that combines a 10" midrange speaker with a high-wattage driver to deliver a full range of frequencies at impressive volume. The PRO-HY10.4B features a 1.5" compression driver horn, crafted with a titanium diaphragm and neodymium magnet, for clear and powerful high-frequency sound. With a maximum power of 700 watts and a sensitivity of 100 dB, this speaker is perfect for those who want to fit a high-wattage speaker with a powerful driver into their motorcycle while saving space and increasing sound quality.


The water-resistant cone protects the speaker from the elements, making it ideal for outdoor use. The PRO-HY10.4B also has a nominal impedance of 4 ohms, a frequency response of 40Hz-20KHz and a recommended high-pass crossover of 70Hz to improve audio performance and longevity, making it an ideal choice for a range of audio applications.

Scheda tecnica

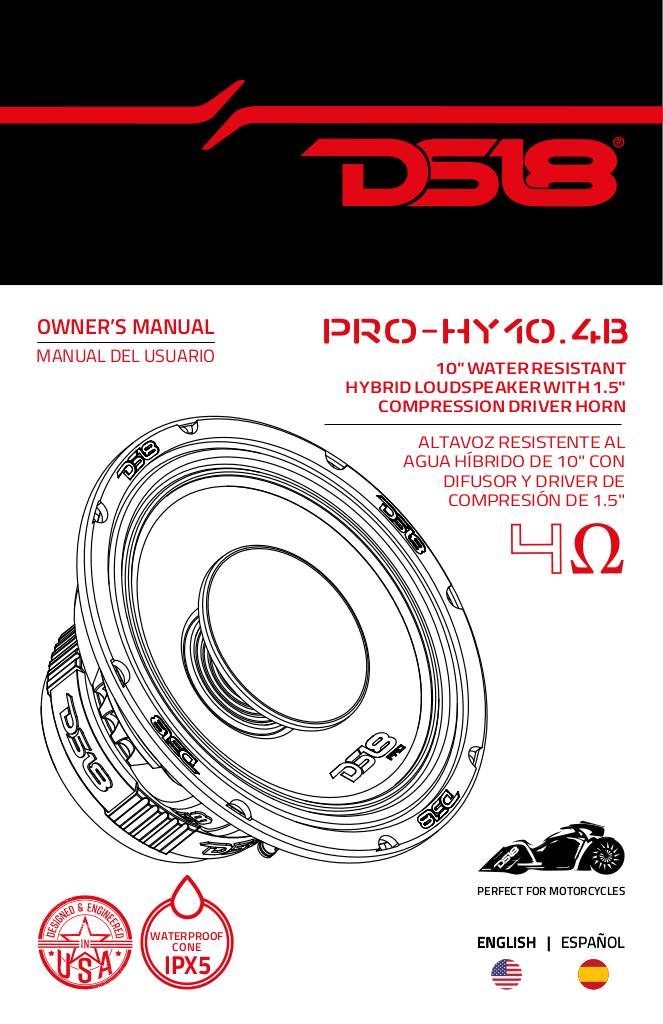

n-20250303144502-pro-hy10-4b-scheda-tecnica.pdf

DS18 PRO-HY10.4B Technical Specifications

  • Nominal diameter 10" / 254 mm
  • Nominal impedance 4 Ohm
  • Handled RMS power 350W
  • Maximum available power 700 W
  • Sensitivity (1w/1m) 100dB
  • Frequency response 40Hz - 20KHz
  • Recommended high-pass crossover 70Hz
  • Number of ways 2-way
  • Single
  • Grille included

Woofer Specifications

  • Voice coil diameter 2" / 50.8 mm
  • Voice coil material Fiberglass
  • Winding material CCAW
  • Cone material Water-resistant paper (IPx5)
  • Surround material Cloth
  • Basket material Aluminum
  • Basket color/finish Matte black
  • Magnet material Ferrite
  • Magnet weight 49 Oz
  • Displacement volume 2.86L / 0.1ft3
  • Thiele & Small Parameters
  • Equivalent volume Vas 21.8L / 0.76ft3
  • Excursion (unidirectional) Xmax 10 mm
  • Free air resonance Fs 95Hz
  • Mechanical factor Qms 12.59
  • Electrical factor Qes 0.995
  • Total factor Qts 0.922
  • Mechanical mass Mms 26.78g
  • Mechanical compliance Cms 0.125 mm/N
  • BL factor 6.851
  • Voice coil inductance Le 0.313mH
  • Cone area Sd 352.99 Cm2
  • DC resistance Re 3.4 ohm
  • Mechanical mass without air Mmd 25g

Driver Specifications

  • Voice coil diameter 1.5" / 38.6 mm
  • Voice coil material Kapton
  • Winding material CCAW
  • Diaphragm material Titanium
  • Magnet material Neodymium
  • Horn diameter 4.25" / 108 mm

Speaker Dimensions

  • Overall diameter 10.3" / 261.5 mm
  • Overall depth 5.7" / 144.4 mm
  • Baffle cutout for front mounting 9" / 231 mm
  • Mounting depth 5.31" / 135 mm
  • Motor diameter 5.7" / 145 mm
