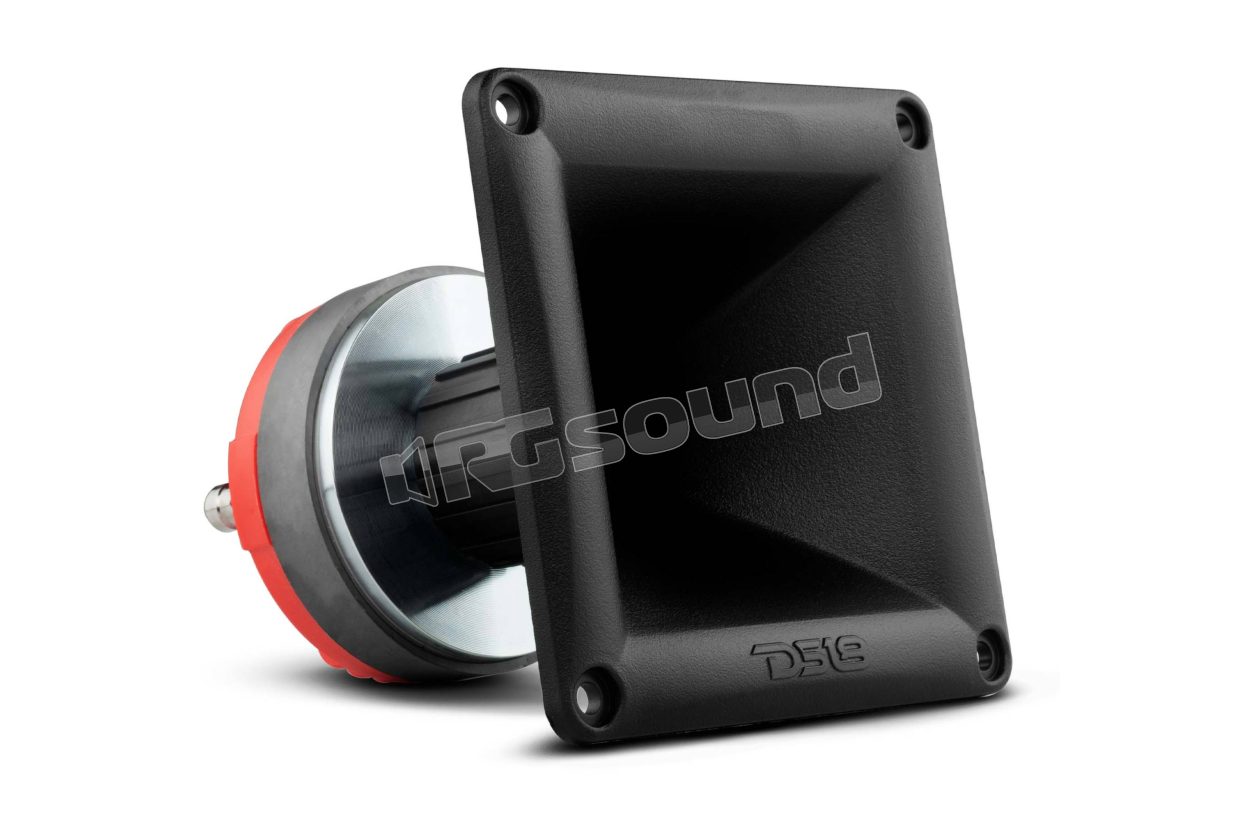

PRO-DR1PK44 Horn kit with 1“ driver 120 Watt 1” phenolic 8-Ohm Vc

DS18

Coming soon

Your price:
€ 28,00
Price per single item (VAT included)

DS18 PRO-DR1PK44 Horn Kit with 1" 120 Watt Driver and 1" Phenolic Vc 8-Ohm

1" Compression Driver Twist On Throat with 1" Phenolic VC and PRO-H44/BK 240W 8-ohm Horn. Engineered to perfection and tuned to achieve maximum performance and ear-shaking volume, the PRO-DR1PK44 is ready to revolutionize your car audio system.
Built with premium materials, the PRO-DR1PK44 is an example of excellence in every respect. Equipped with a 1" 8 ohm CCA voice coil, this device handles a peak power of 240 W.

The phenolic diaphragm ensures exceptional clarity and precision, ensuring that no musical detail escapes your discerning ears. The PRO-DR1PK44 boasts a unique square-shaped screw throat feature, a testament to its versatility and commitment to unparalleled acoustics. This unique design not only enhances the overall audio experience, but also elevates decibel levels to unimaginable heights. With a remarkable sensitivity of 107.3 dB, this speaker has the potential to reach incredible volumes.

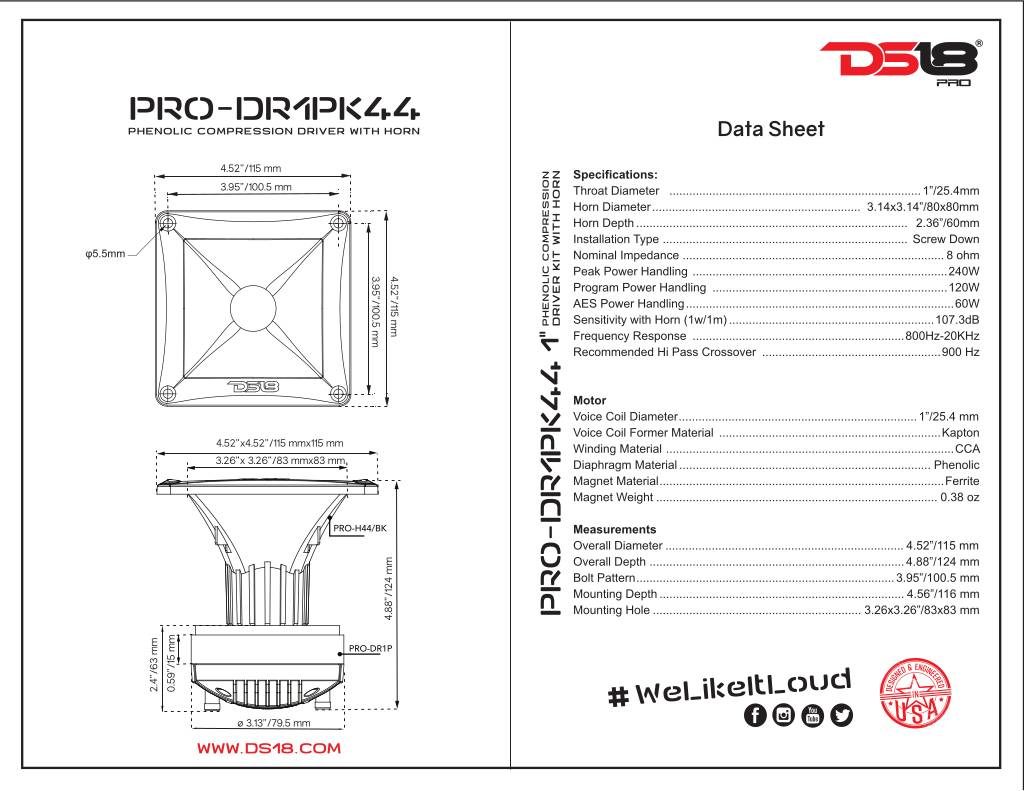

Scheda Tecnica

n-20241018161916-pro-dr1pk44-scheda-tecnica.pdf

DS18 PRO-DR1PK44 Technical Specifications

  • Nominal Impedance 8 Ohm
  • AES Power Handling 60W
  • Program Power Handling 120W
  • Peak Power Handling 240W
  • Sensitivity (1w/1m) with Horn 107.3dB
  • Frequency Response 800Hz - 20Khz
  • Recommended High Pass Crossover 1KHz

Motor

  • Voice Coil Diameter 1" / 25.4 mm
  • Voice Coil Material Kapton
  • Winding Material CCA
  • Diaphragm Material Phenolic
  • Magnet Material Ferrite
  • Magnet Weight 0.38 Oz / 11g
  • Body Material Aluminum + ABS

Horn Specifications

  • Nominal Diameter 4.5" / 115 mm
  • Throat Diameter 1" / 25.4 mm
  • Sound Coverage 45 x 45 (square)
  • Body Material Injected ABS/PC
  • Color/Finish Black

Dimensions

  • Overall Diameter 4.52" / 115 mm
  • Overall Depth 4.88" / 124 mm
  • Mounting Depth 4.5" / 116 mm
  • Mounting Hole Diameter 3.26 x 3.26" / 83 x 83 mm
  • Bolt Pattern (Horn) 4 x 5.5 mm / 100.5 mm
  • Gross Weight Single Unit 2
  • Box Dimensions Single Unit L x W x H 4.75 x 4.75 x 5.75
  • Quantity Units in Master Carton 12
  • Gross Weight Master Carton 25.5
  • Master Carton Dimensions L x W x H 15 x 10 x 12
