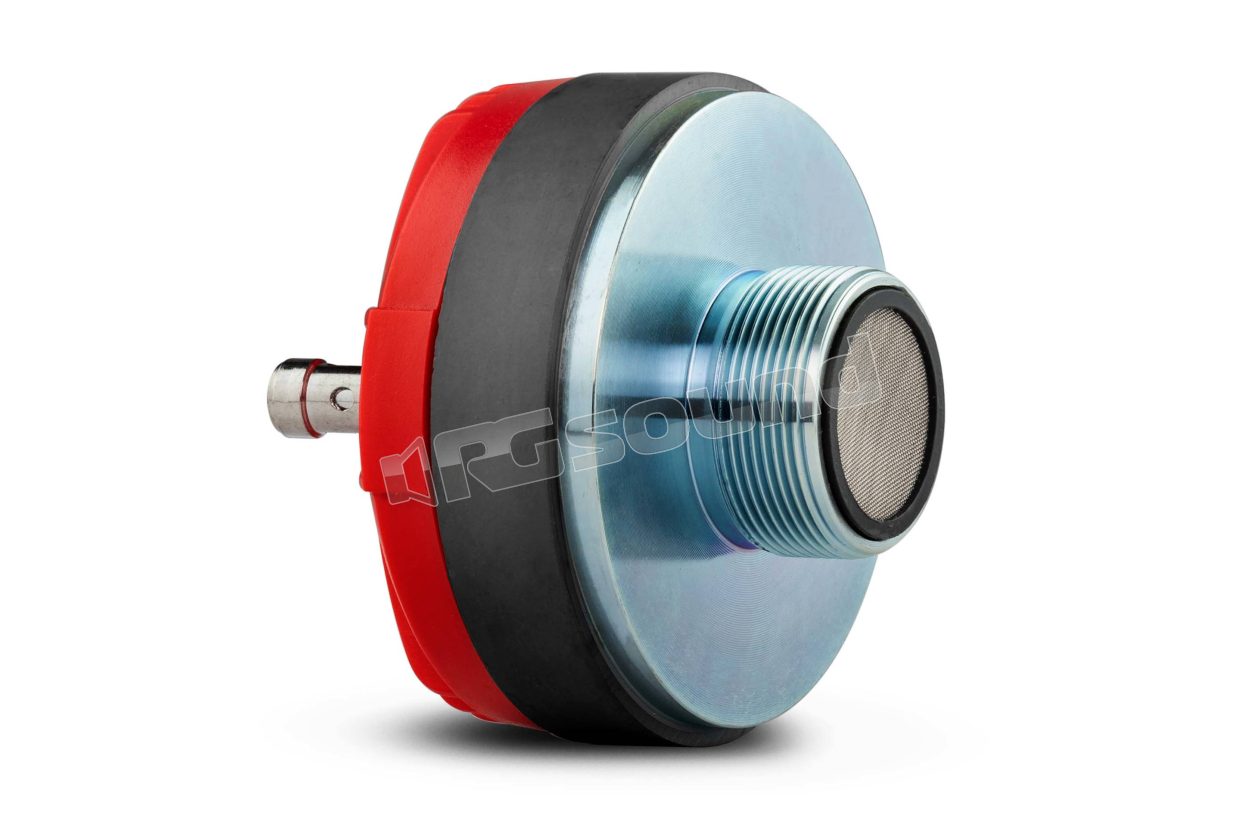

PRO-DR1P Twist On compression driver with 1“ throat and phenolic VC

DS18

Coming soon

Your price:
€ 22,00
Price per single item (VAT included)
Type
Tweeter
MAX Power
240 Watt
RMS Power
120 Watt
Frequency Response
800-20KHz Hertz
Sensitivity
103 dB
Impedance
8 Ohm
Outer Diameter
79.5 mm
Installation Depth
63 mm
Tweeter Material
Ferrite

DS18 PRO-DR1P Twist On Compression Driver with 1" Throat and Phenolic VC

1" Twist On compression driver with 1" throat in phenolic VC 240W 8-Ohm. Designed and engineered in the United States, the DS18 PRO-DR1P is a high-power compression driver. This 1" throat Twist On driver with phenolic voice coil will make your system sing. The impressive frequency response of the PRO-DR1P, from 800Hz to 20KHz, ensures that no note, however high, escapes your ears.

The high-strength ferrite magnet pushes the PRO-DR1P's capabilities to the limit, while its robust construction guarantees lasting performance. The PRO-DR1P integrates perfectly into your configuration. Its 8 ohm impedance strikes a perfect balance, allowing it to work harmoniously with a wide range of amplifiers and configurations, ensuring that audio remains distortion-free and faithful to the original composition.

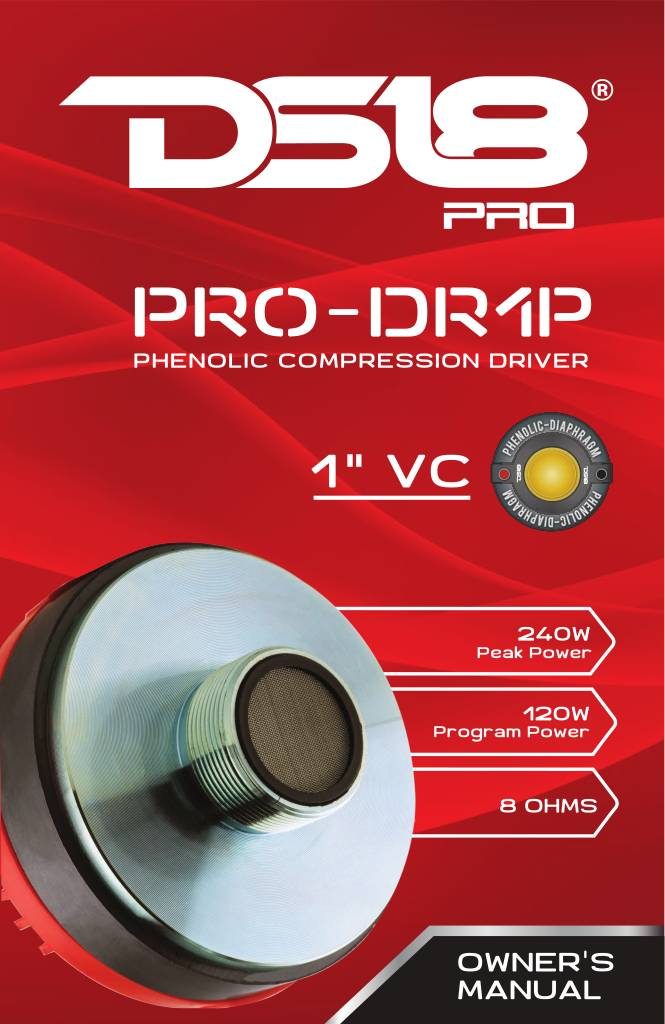

Scheda tecnica

n-20241018170747-pro-dr1p-scheda-tecnica.pdf

DS18 PRO-DR1P Technical Specifications

  • Throat diameter 1" / 25.4 mm
  • Screw installation type
  • Nominal impedance 8 ohm
  • Peak power 240W
  • Program power 120W
  • AES handled power 60W
  • Sensitivity (1w/1m) 103dB
  • Frequency response 800Hz-20KHz
  • Recommended high-pass crossover 900 Hz

Motor

  • Voice coil diameter 1" / 25.4 mm
  • Voice coil material Kapton
  • Winding material CCA
  • Diaphragm material Phenolic
  • Magnet material Ferrite
  • Magnet weight 0.38 ounces

Dimensions

  • Overall diameter 3.13" / 79.5 mm
  • Overall depth 2.4" / 63 mm
  • Bolt scheme/type M34
  • Mounting depth 1.79" / 45.5 mm
