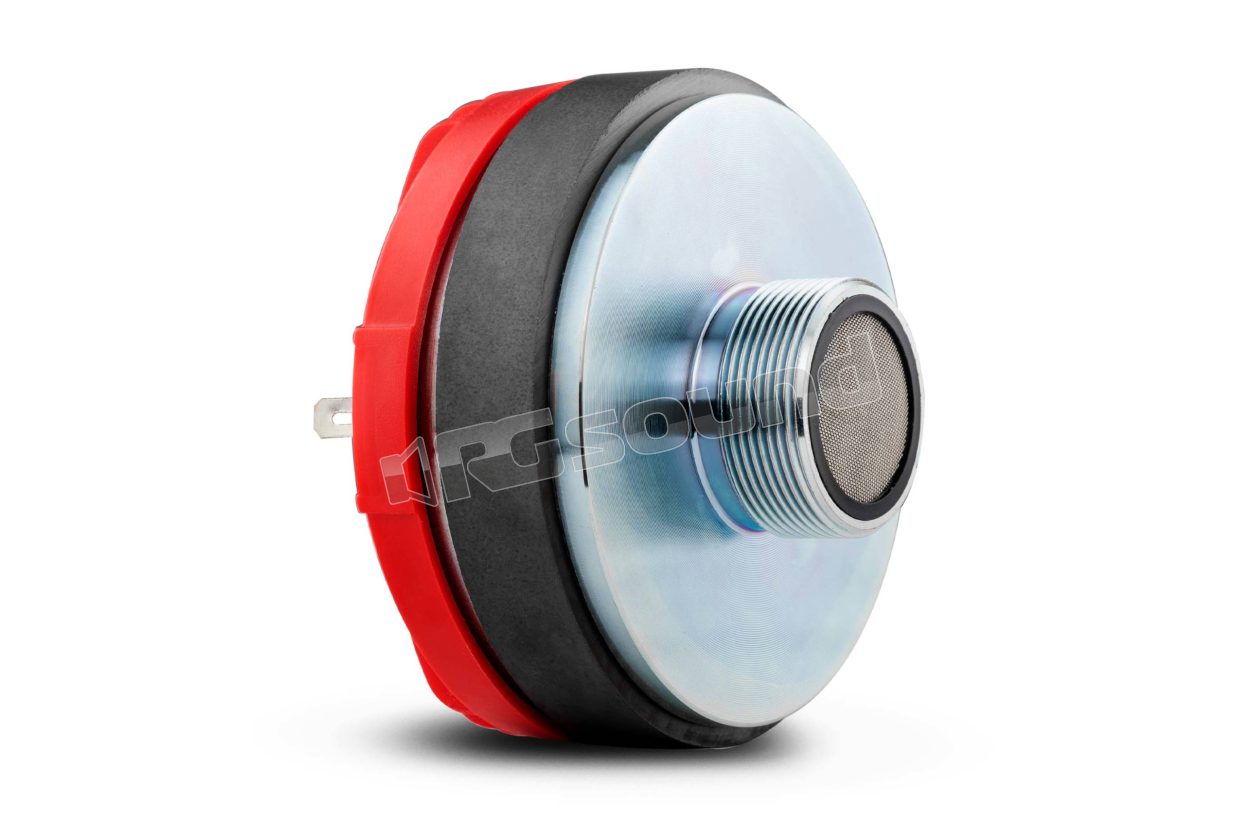

PRO-DR1.354 1" Twist-On Throat Driver 160 Watt 1.35" Titanium VC 4-Ohm

DS18

Coming soon

Your price:
€ 33,00
Price per single item (VAT included)

DS18 PRO-DR1.354 1" Twist On Driver with 1" Throat 160 Watt 1.35" Titanium Vc 4-Ohm

1" Twist On Throat compression driver with 1.35" titanium VC 320W 4 Ohm. The PRO-DR1.354 handles a program power of 160W and an impressive MAX power of 320W. The sensitivity of the PRO-DR1.354 reaches 103 dB. With a frequency range from 500 Hz to 20 KHz, these speakers delight your senses with exalting highs.


The PRO-DR1.354 is a high power DS18 high frequency driver. Compatibility with all DS18 throats allows you to create a unique look. The PRO-DR1.354 is equipped with high quality terminals that lock connections, ensuring they integrate perfectly into your audio setup.

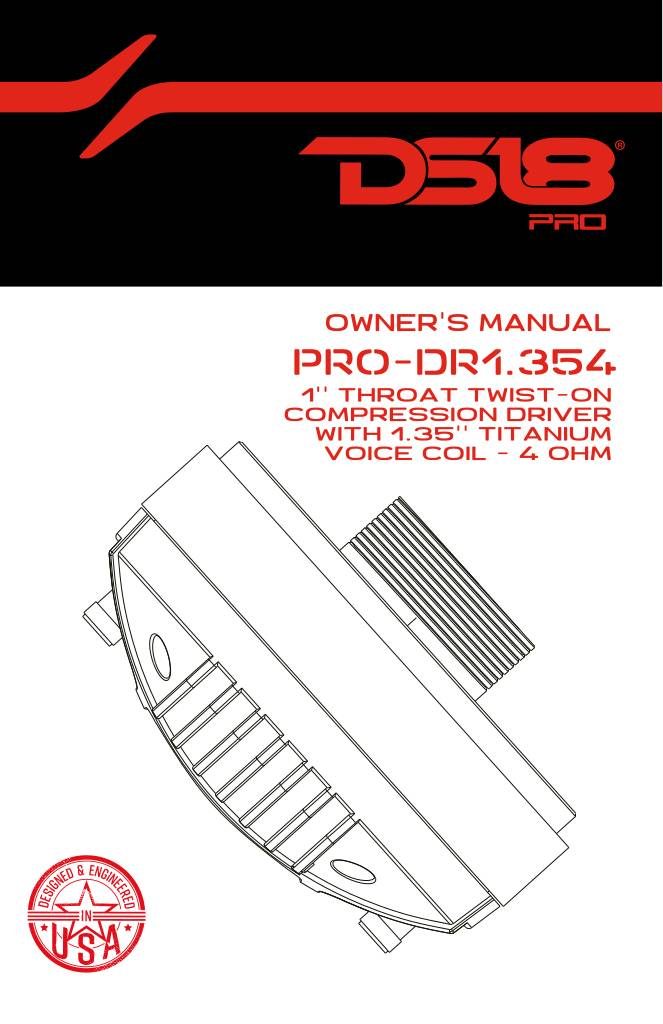

Scheda tecnica

n-20241021150414-pro-dr1-354-scheda-tecnica.pdf

DS18 PRO-DR1.354 Technical Specifications

  • Throat diameter 1"
  • Installation type screw
  • Nominal impedance 4 ohm
  • AES handling power 80W
  • Program power 160W
  • Peak power 320W
  • Sensitivity (1w/1m) 103dB
  • Frequency response 500Hz-20KHz
  • Recommended high-pass crossover 1KHz

Motor

  • Voice coil diameter 1.35"
  • Voice coil material Kapton
  • Winding material CCAW
  • Diaphragm material Titanium
  • Magnet material Ferrite
  • Magnet weight 16 oz

Measurements

  • Overall diameter 3.54" / 90 mm
  • Overall depth 2.51" / 64 mm
  • Bolt pattern/type M34 / 1.34"
  • Mounting depth 1.61" / 41 mm
  • Product weight 2 lbs
  • Product dimensions 4.5 x 4 x 3
  • M/C weight 54 lbs
  • M/C dimensions 16.5 x 9.75 x 9.5
  • M/C Q.TY 24
