PRO-DR1.35 Twist-on driver with 1“ throat 200 Watt 1.35” Titanium Vc 8-Ohm

DS18

Coming soon

Your price:
€ 33,00
Price per single item (VAT included)

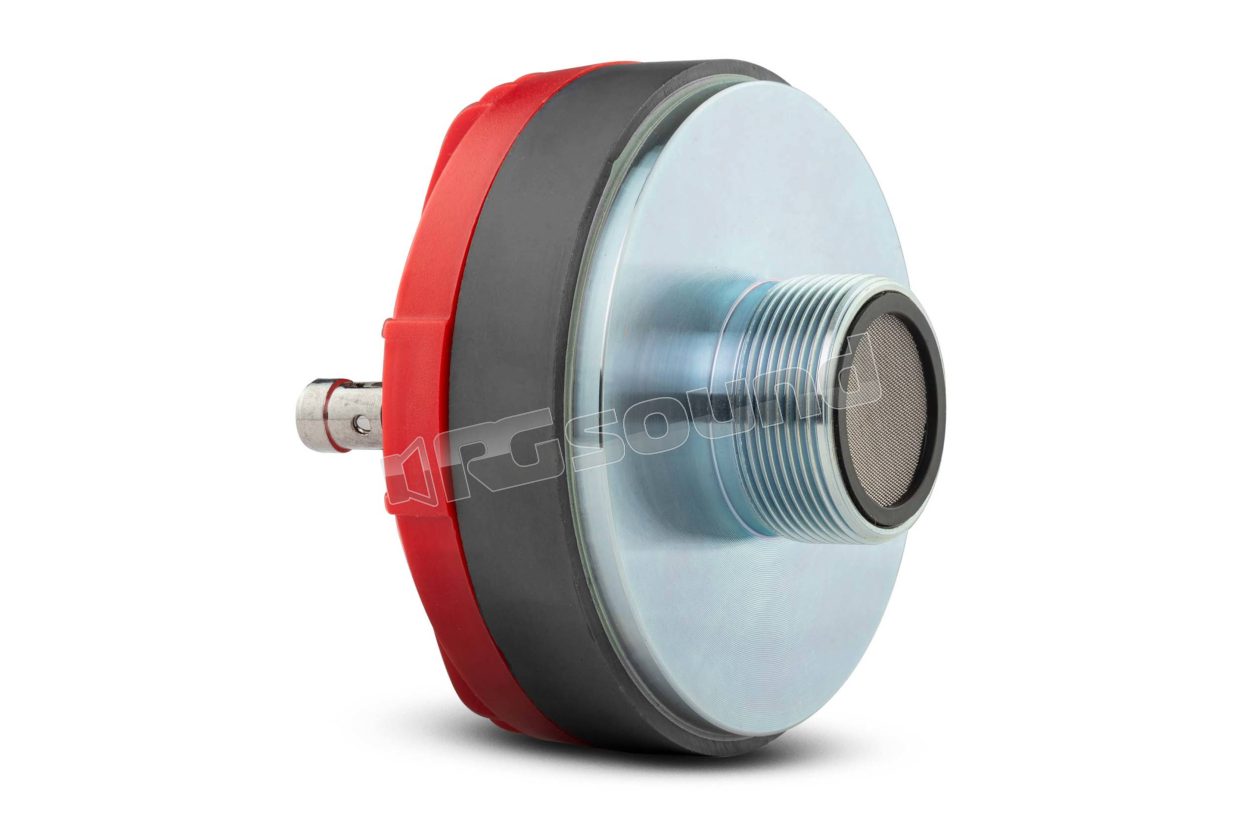

DS18 PRO-DR1.35 1" Twist On Driver with 1" Throat 200 Watt 1.35" Titanium Vc 8-Ohm

1" Compression Driver Twist On Throat with 1.35" titanium VC 400W 8 Ohm. The PRO-DR1.35 handles effortlessly an incredible 200W RMS power and an impressive MAX power of 400W. With a frequency range that goes from 500 Hz to 20 KHz.


The PRO-DR1.35 is a high-power DS18 high-frequency driver that embraces the essence of innovation to create unprecedented sound projection. Compatibility with all DS18 throats allows you to create a look as unique as your rhythm. Built with an unwavering commitment to maximum quality, the PRO-DR1.35 is equipped with high-quality terminals that lock connections, ensuring that they integrate perfectly into your audio configuration.

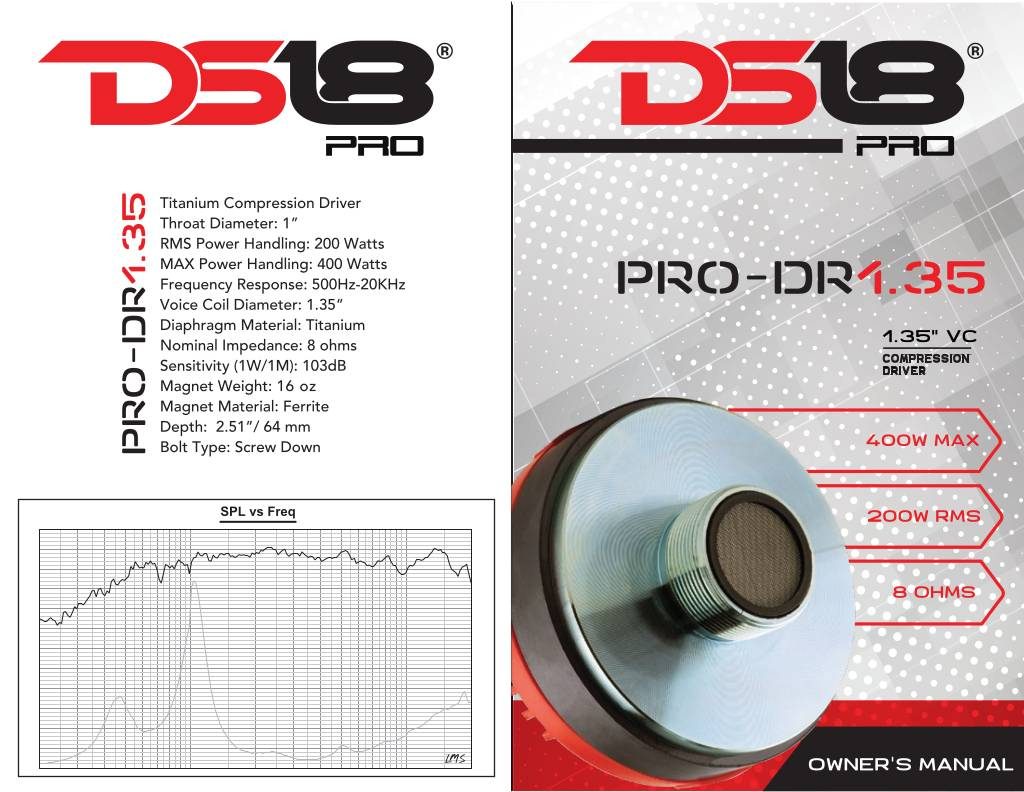

Scheda tecnica

n-20241021151103-pro-dr1-35-scheda-tecnica.pdf

DS18 PRO-DR1.35 Technical Specifications

  • Nominal impedance 8 ohm
  • Throat diameter 1
  • RMS handled power 200W
  • Maximum absorbed power 400W
  • Sensitivity (1w/1m) 103dB
  • Frequency response 500Hz-20KHz
  • Recommended high-pass crossover 800 Hz
  • Voice coil diameter 1.35
  • Diaphragm material Titanium
  • Magnet material Ferrite
  • Magnet weight 16 oz
  • Screw bolt type

Dimensions

  • Overall diameter 3.54" (90 mm)
  • Overall depth 2.51" (64 mm)
  • Product weight 2.5 lbs
  • Product dimensions 5 x 5 x 3.5
  • M/C weight 28 lbs
  • M/C dimensions 15.5 x 10.5 x 7.75
